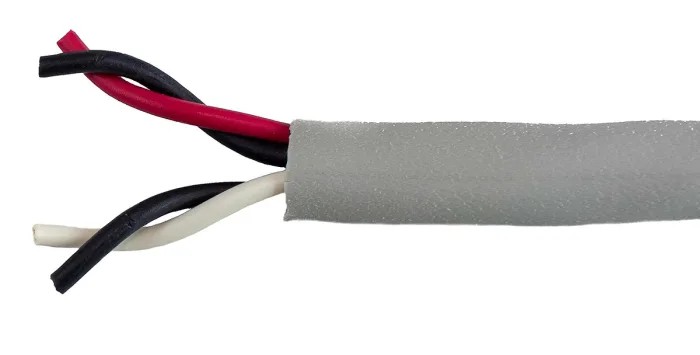

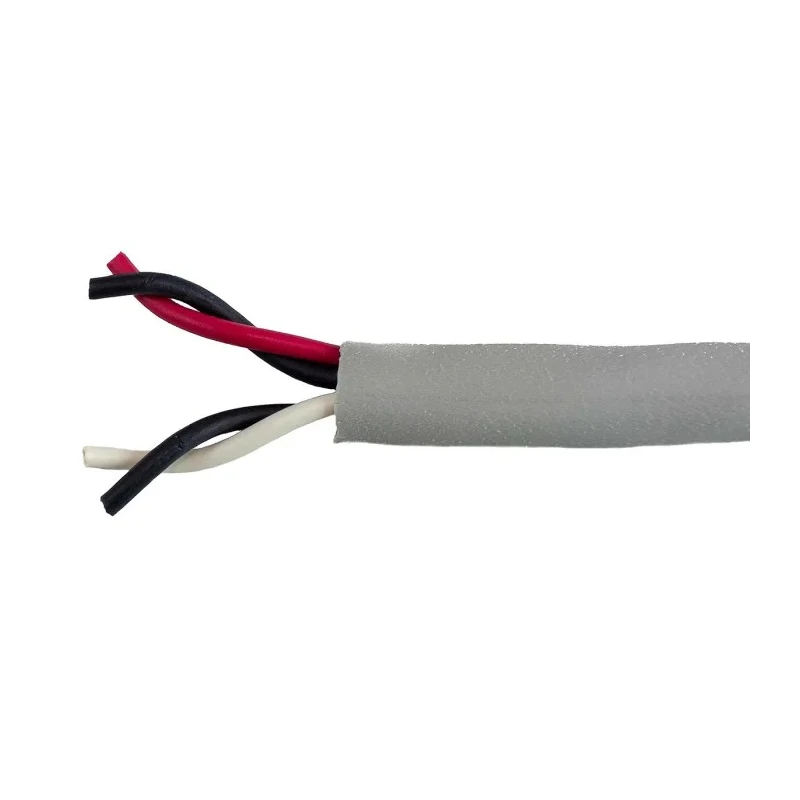

Alpha Wire Ecogen Ecocable Mini Series Data Cable 2 Pairs 4 Cores 0.241 mm² 300 V 30 m Grey Sheath MPPE 78072 SL005

Alpha Wire 78072 SL005 Ecogen Ecocable Mini Series Data Cable is a 300 V unshielded, multipair data cable designed for reliable communication and electrical performance in industrial, automation, and electronic applications. Measuring 30 meters in length, this cable contains 2 pairs (4 cores) of tinned copper wire conductors stranded with 19 strands per conductor.

The cable features a grey modified polyphenylene ether (mPPE) sheath and insulation, ensuring it is halogen-free, lightweight, and 100% recyclable. This construction enhances dielectric properties and reduces outgassing, making it ideally suited for sensitive electronic environments.

The EcoCable Mini range operates within a temperature span from -40°C to +80°C, allowing it to function reliably in harsh temperature conditions. The cable has a nominal outside diameter of 4.11 mm and a cross-sectional area of 0.241 mm² (24 AWG). Its jacket thickness of 0.015 inch (0.38 mm) and insulation thickness of 0.007 inch (0.18 mm) contribute to a slim and flexible profile.

This product meets key industry standards and approvals including CSA, CE, UL, RoHS, REACH, and WEEE, providing assurance for safety and environmental compliance. The cable is also suitable for NFPA 79 applications, safeguarding industrial machinery and operators from electrical hazards and fire risks.

Applications for this data cable include telecommunication, radio transmitters, electronic circuit interconnections, automation systems, and studio equipment wiring. Its low weight and halogen-free construction facilitate ease of installation and enhance safety.

The cable supports a voltage rating of 300 V suitable for a variety of industrial and communication applications. It features tinned copper conductors with 19 strands each 0.127 mm diameter for excellent conductivity and flexibility.

The mPPE insulation and jacket provide a halogen-free environment with low outgassing and high recyclability. The operating temperature range spans from -40°C to +80°C for use in extreme conditions. The EcoCable Mini has a slim 4.11 mm diameter for space-saving installations.

This cable complies with CSA, CE, UL, RoHS, REACH, and WEEE standards. Its halogen-free and recyclable construction supports environmentally responsible applications. Explore more high-quality Data Cables available in EnvMart’s extensive catalog for industrial, commercial, and laboratory electronics applications.
