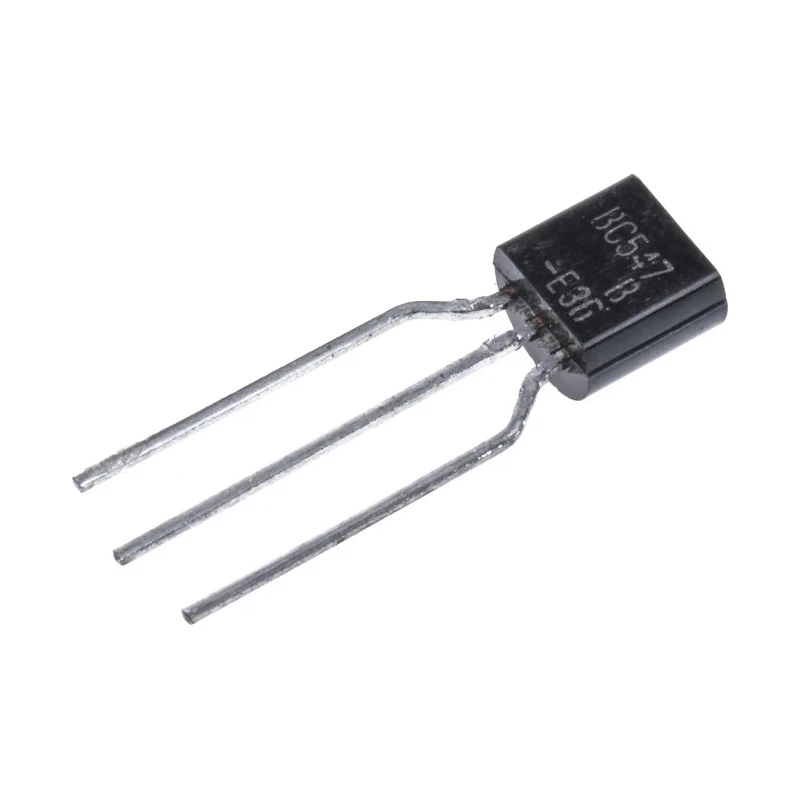

onsemi Bipolar Transistor, NPN, 100 mA, 45 V, 3-Pin TO-92 Package BC547BTA

onsemi BC547BTA Bipolar Transistor is a high-performance NPN transistor designed for use in discrete semiconductor circuits requiring low power, medium voltage, and moderate current handling capabilities. It features a collector current capacity of 100 mA and can withstand a collector-emitter voltage up to 45 V, making it ideal for signal amplification and switching tasks in electronic applications where space and reliability are critical.

The transistor is housed in a TO-92 package, a popular through-hole mounting style that facilitates easy installation on printed circuit boards. With a maximum power dissipation of 500 mW, it balances efficient thermal characteristics with compact dimensions of approximately 5.2 mm length, 4.19 mm width, and 21.77 mm height. It operates reliably over a broad temperature range from -55°C to 150°C, expanding its usability in various environmental conditions.

Featuring a single transistor configuration and a maximum transition frequency of 1 MHz, this device is suitable for low-frequency switching and amplification tasks. It has a minimum DC current gain (hFE) of 110, which contributes to effective signal control in analog and digital circuit designs.

The BC547BTA transistor is widely applied in industrial electronics, laboratory instruments, and consumer electronics. Its compact form factor and electrical characteristics support requirements in communication devices, audio equipment, and general-purpose electronic projects.

Maximum DC collector current is 100 mA. Collector-emitter voltage rating of 45 V ensures reliable operation. Through-hole mount with compact TO-92 package design. Supports a maximum power dissipation of 500 mW. High current gain with minimum hFE of 110.

Operates from -55°C to 150°C comfortably. Maximum transition frequency is 1 MHz suitable for low-frequency applications. Three-pin configuration simplifies circuit integration. Device polarity is NPN type, suitable for amplification and switching.

Designed for single transistor configuration in discrete semiconductor applications.

Choose this onsemi BC547BTA for reliable discrete transistor solutions serving industrial, educational, and hobbyist electronic assembly needs. Explore more Bipolar Transistors and semiconductor components on EnvMart.
