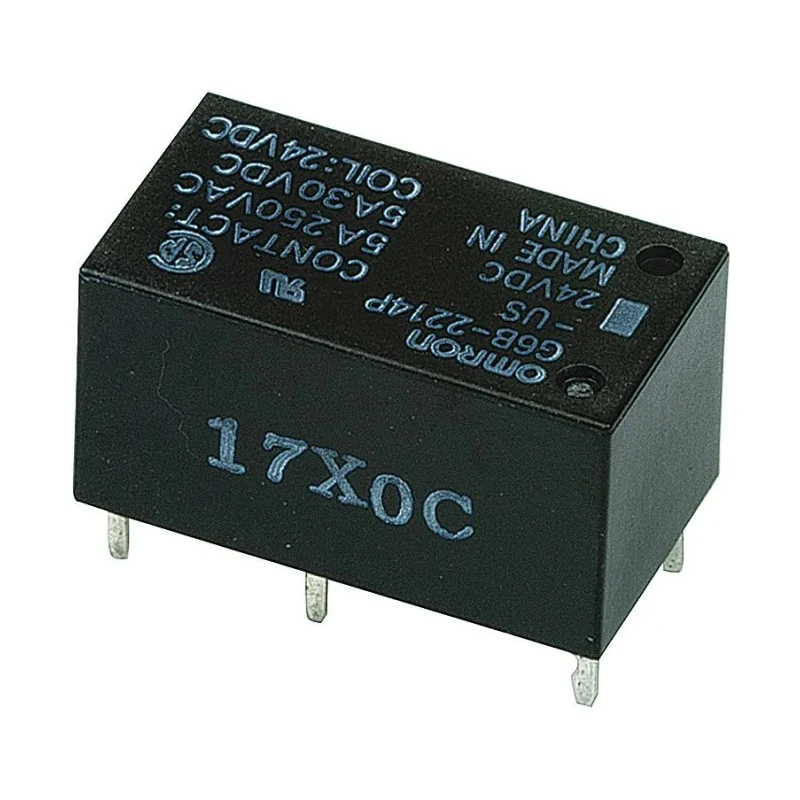

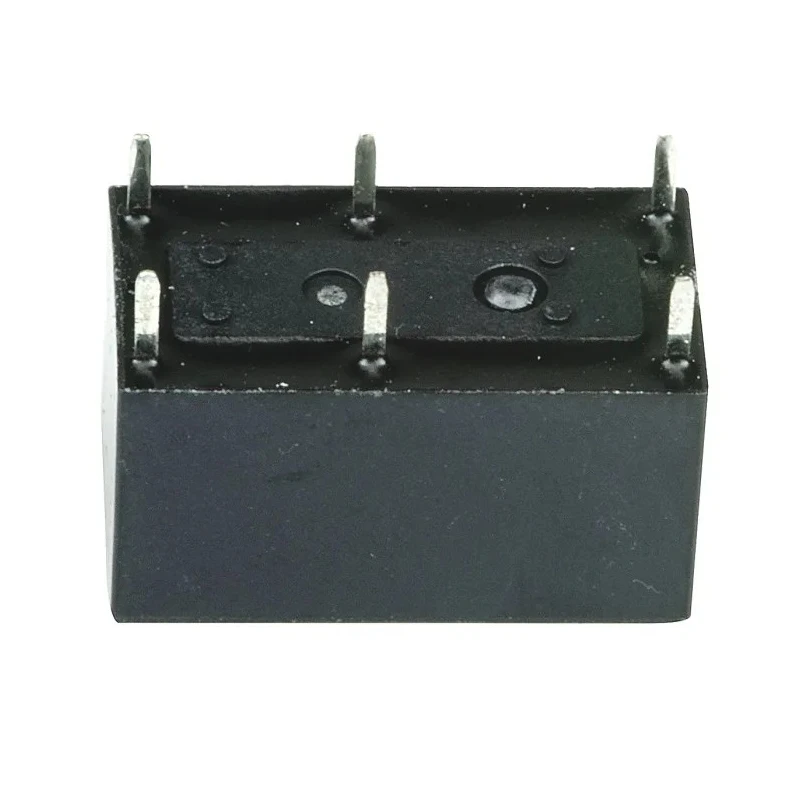

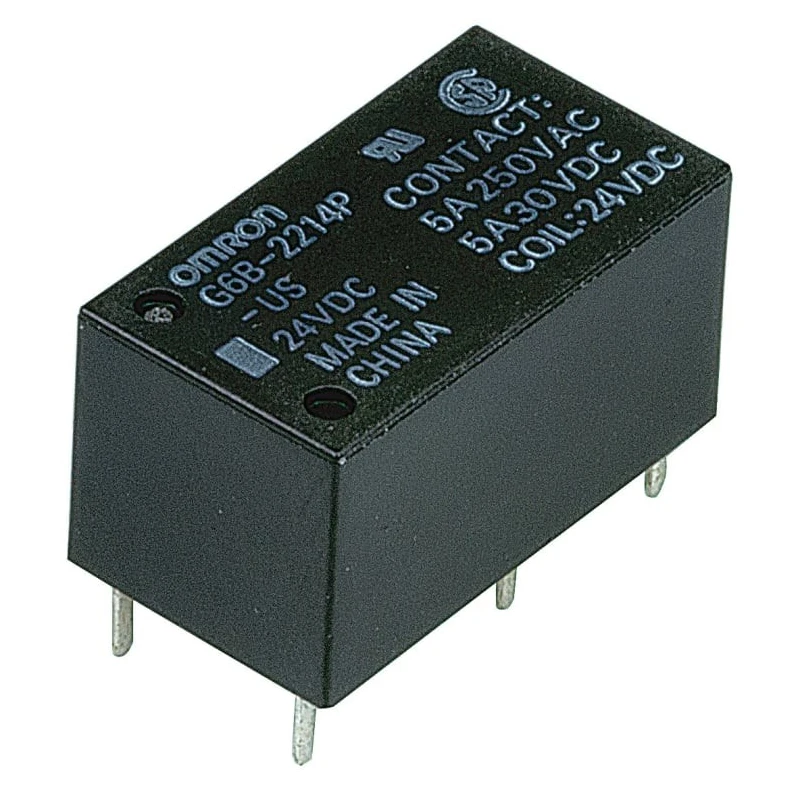

Omron Subminiature PCB Power Relay 24V DC Coil 5A Switching Current DPST G6B-2214P-US DC24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11mm |
| Length | 20mm |
| Model | G6B-2214P-US DC24 |
| Width | 11mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6B |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.9kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 200mW |
| Subminiature | 20x10x10mm |
Key Features
- Features a unique moving loop armature for reduced relay size and contact bounce time.
- Low coil power consumption of 200mW ensures energy efficiency.
- Supports switching voltages of up to 125V DC and 380V AC.
- Fully sealed design with high dielectric strength and impulse withstand voltage of 6kV.
- Compact dimensions of 20x10x10mm ideal for PCB mounting.
- Constructed with silver alloy contacts and low contact resistance of 30mΩ.
- Wide operating temperature range from -25°C to 70°C suitable for varied environments.
- RoHS compliant and built for high reliability in control equipment output applications.
Product Description
Omron G6B-2214P-US DC24 is a subminiature PCB power relay designed for industrial, automation, and electrical control applications. The relay features a 24V DC coil and supports a switching current of 5A with a DPST (Double Pole Single Throw) contact configuration, making it suitable for precise switching needs.
This relay's distinctive moving loop armature technology reduces its size and minimizes magnetic interference and contact bounce time, which improves overall operational efficiency. With a low coil power consumption of 200mW, it is energy efficient and ideal for use in compact electronic devices.
It offers switching capabilities of up to 125V DC and 380V AC with a fully sealed construction, providing high dielectric strength and an impulse withstand voltage of 6kV. The relay uses silver alloy contacts ensuring excellent conductivity and durability, with a contact resistance of only 30mΩ.

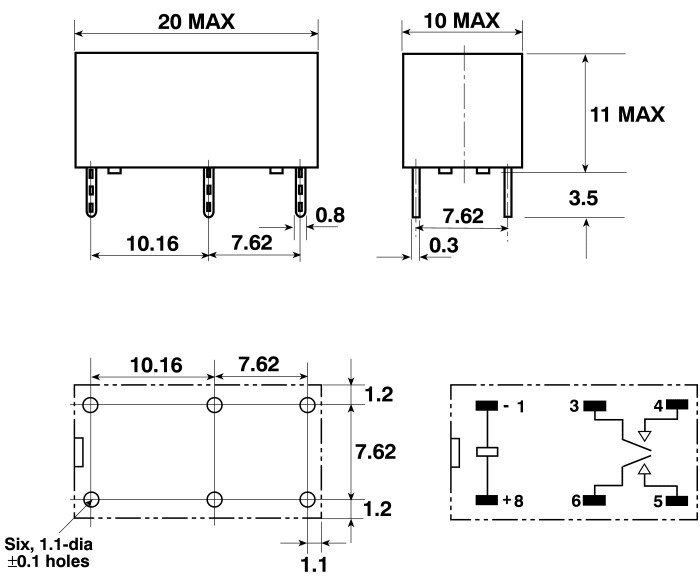

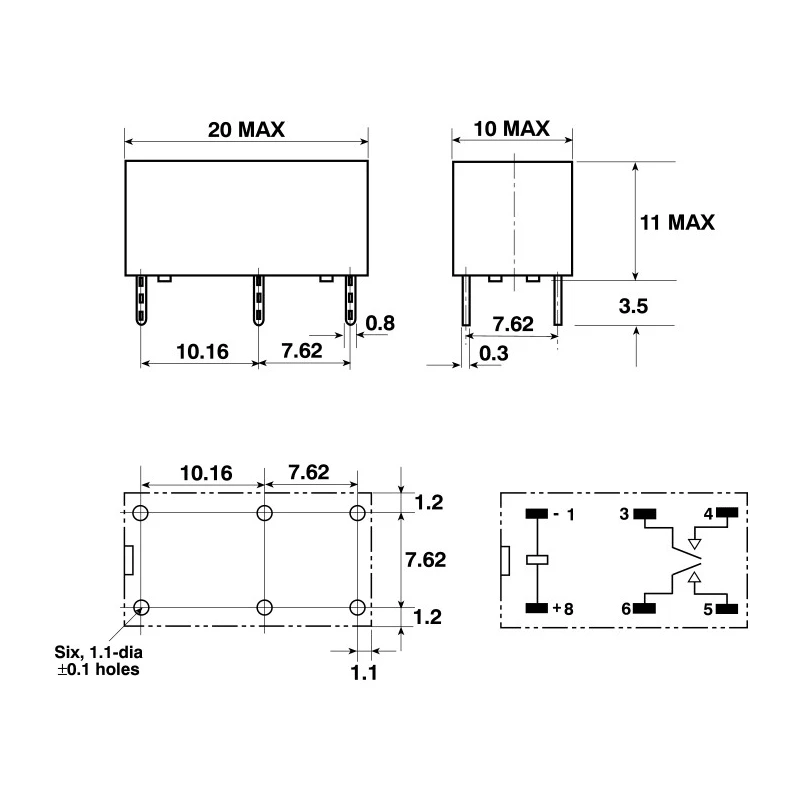

Designed for PCB mounting, the relay measures 20mm in length, 11mm in width, and 11mm in height, making it highly compact and space-saving. The operational temperature range from -25°C to 70°C allows this relay to operate reliably under various environmental conditions.
This product complies with RoHS standards, ensuring it meets environmental safety regulations. Its robust design is well-suited for output stages in control systems found in industrial, manufacturing, and automation sectors.
Features a unique moving loop armature for reduced relay size and contact bounce time. Low coil power consumption of 200mW for improved energy efficiency. Supports switching voltages up to 125V DC and 380V AC with 5A current capacity.
Compact dimensions of 20x10x10mm configured for PCB mounting. Silver alloy contacts with low contact resistance of 30mΩ ensure durability. Wide operating temperature range from -25°C to 70°C for versatile use. Fully sealed design with high dielectric strength and 6kV impulse withstand voltage.
RoHS compliant for environmental safety and reliability. Explore EnvMart's complete selection of industrial Power Relays for reliable switching solutions across various applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of 5A, making it suitable for various control applications.
The relay has compact dimensions of 20mm in length, 11mm in width, and 11mm in height, designed for PCB mounting.
The coil voltage for this relay is 24V DC, which is necessary for its operation.
It can switch voltages of up to 125V DC and 380V AC, providing versatility in various applications.
This unit features a DPST (Double Pole Single Throw) contact configuration, suitable for precise switching needs.
The contact resistance is 30mΩ, ensuring efficient conductivity and performance.
The coil power consumption is low at 200mW, contributing to energy efficiency in applications.
The relay is constructed with silver alloy contacts, which provide excellent conductivity and durability.
It operates effectively within a temperature range of -25°C to 70°C, making it suitable for various environments.
Yes, it is RoHS compliant, ensuring it meets environmental safety regulations.
This model is designed for PCB mounting, allowing for easy integration into electronic devices.
The relay has an impulse withstand voltage of 6kV, providing high dielectric strength for reliable operation.
