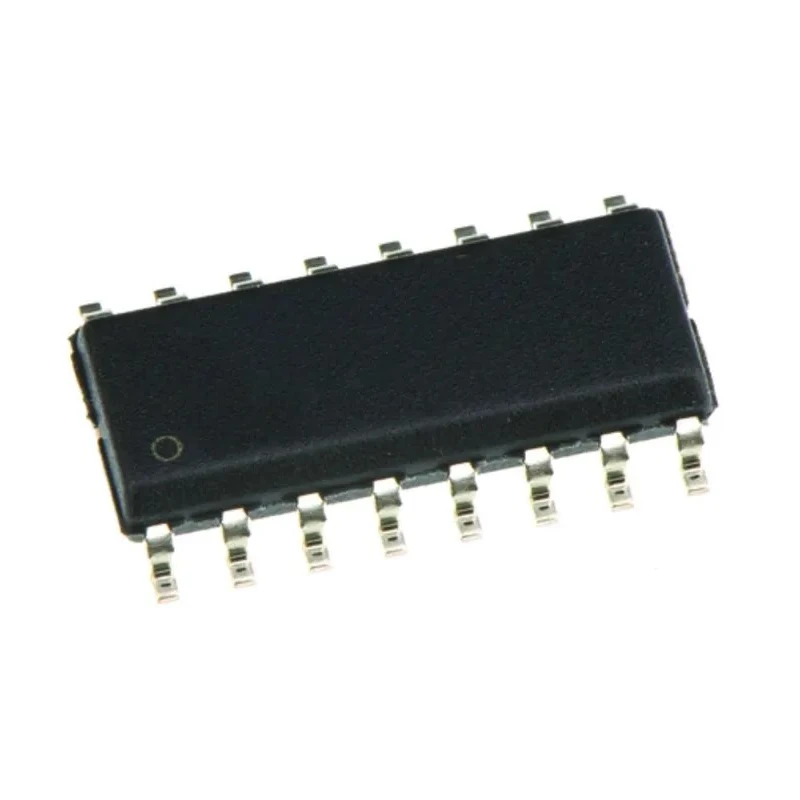

DiodesZetex 7-Input Logic Gate, 16-Pin SOIC, CMOS Input, Surface Mount ULN2003V12S16-13

DiodesZetex ULN2003V12S16-13 7-Input Logic Gate is a surface mount device designed in a 16-pin SOIC package, providing compact and efficient integration into modern electronic circuits.

Designed with CMOS inputs, it supports reliable logic operations with maximum supply voltages of 5V and minimum of 3.3V, allowing flexible voltage supply configurations.

This logic gate supports a maximum high level output current of 700mA and a maximum low level output current of 140mA, making it suitable for driving loads requiring moderate current levels.

It operates efficiently within a broad temperature range from -40°C to 125°C, ensuring durability and stability in harsh environmental conditions common in industrial applications.

The gate does not incorporate Schmitt trigger inputs, making it appropriate for standard threshold logic level applications where Schmitt triggers are not required. Common applications include industrial control systems, power and connector electronics, embedded system designs, and semiconductor logic circuits.

Features seven CMOS inputs enhancing signal compatibility. Packaged in a 16-pin Surface Mount SOIC for space-efficient PCB design. Operates between 3.3V and 5V supply voltages ensuring versatile application. Supports maximum high level output current of 700mA for robust performance.

Designed to function reliably across a wide temperature range from -40°C to 125°C. Maximum low level output current rating of 140mA for stable switching. Non-Schmitt trigger input type maintains signal integrity for standard logic gates.

Output type is voltage-based suitable for general logic circuitry. Ideal for use in industrial, electronic component manufacturing, and embedded systems. This product is made in China and conforms to general industrial standards but does not hold specific certifications.

Explore more semiconductor Logic Gates and electronic components at EnvMart for your design and manufacturing needs.
