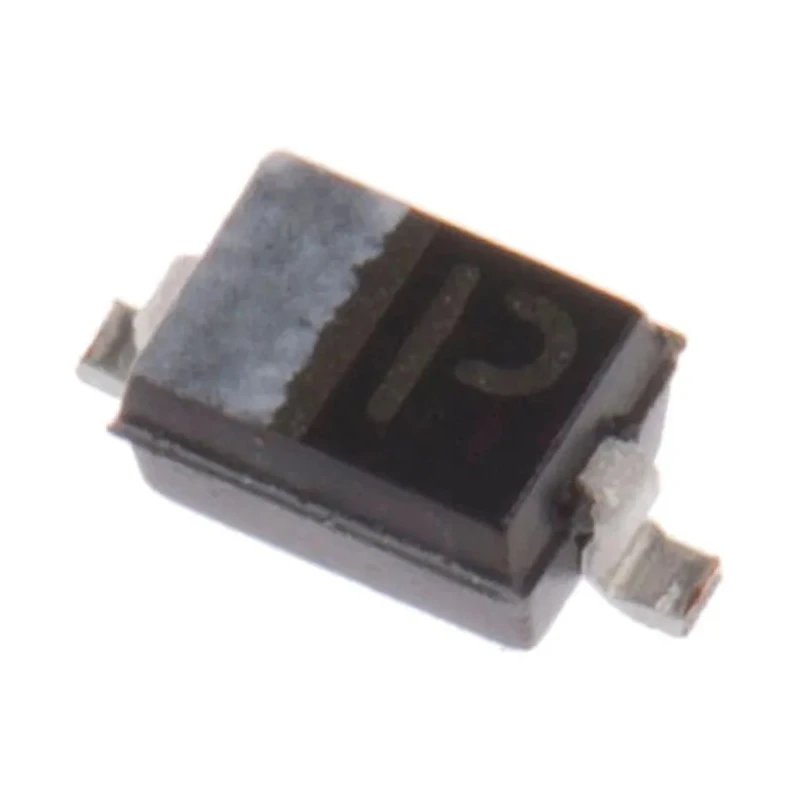

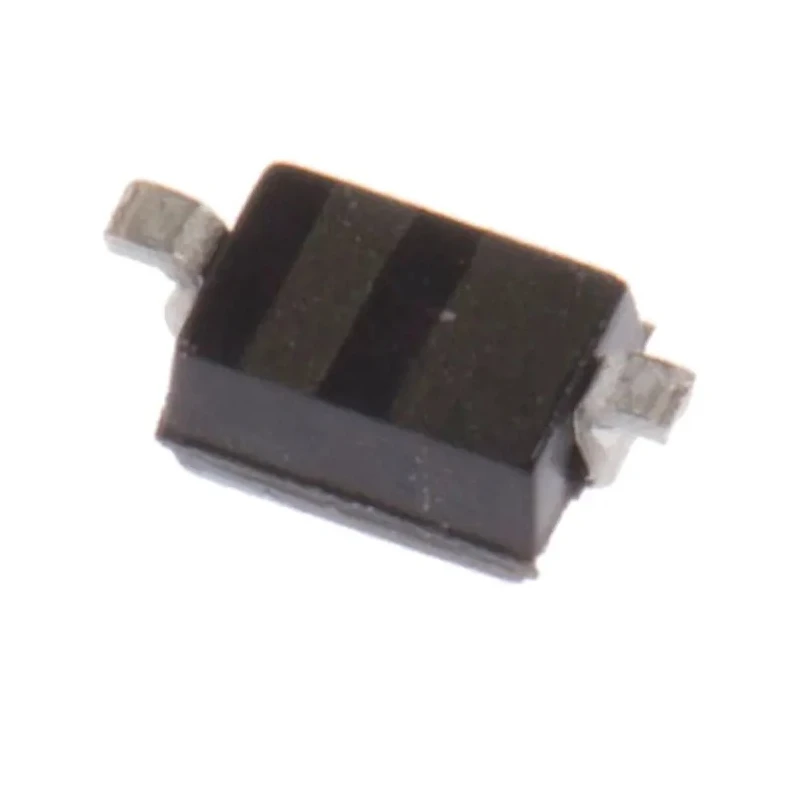

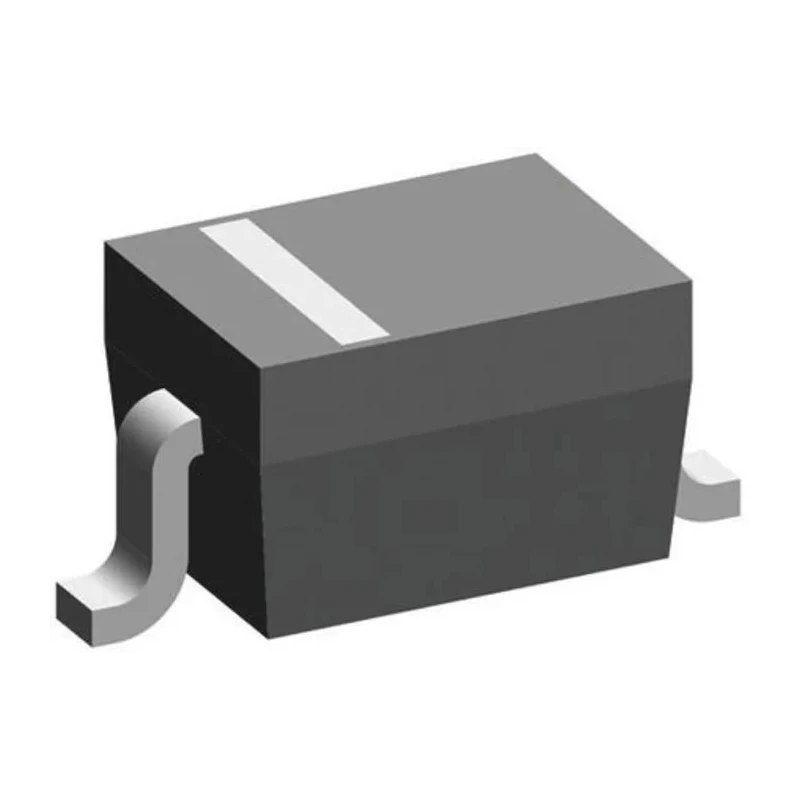

onsemi Schottky Diode 30 V 500 mA Surface Mount SOD-323 2-Pin Single Diode NSR0530HT1G

onsemi NSR0530HT1G Schottky Diode is a highly efficient single diode designed for surface mount applications, utilizing the Schottky barrier principle to enable low forward voltage drop and fast switching performance. It is engineered for low voltage, high-frequency rectification, freewheeling diodes, and polarity protection tasks.

This diode features a maximum continuous forward current rating of 500 mA and a peak reverse repetitive voltage of 30 V, ensuring reliable operation under typical industrial and commercial conditions. Its SOD-323 package offers a compact footprint with precise dimensions (1.8 mm length, 1.35 mm width, and 1 mm height) and a lightweight epoxy moulded case weighing approximately 11.7 mg.

The device operates over a broad temperature range from -55°C to 150°C, making it suitable for demanding environments such as electronics manufacturing, power supplies, automotive electronics (non-AEC-Q101 compliant), and other industrial applications. It supports automated PCB assembly processes with stress protection guarding to maintain reliability.

Technical highlights include a peak non-repetitive forward surge current of 2.5 A and a low peak reverse current leakage of 200 μA, helping maintain efficiency and durability. This diode is Pb-Free, supporting environmental compliance.

Maximum continuous forward current of 500 mA ensures efficient power handling. Peak repetitive reverse voltage of 30 V suitable for low voltage applications. Schottky barrier design minimizes forward voltage drop and switching losses.

Compact SOD-323 package dimensions: 1.8 mm length, 1.35 mm width, and 1 mm height. Wide operating temperature range from -55°C to 150°C supports robust industrial use. Peak non-repetitive forward surge current of 2.5 A for transient conditions.

Low peak reverse current of 200 μA ensures minimal leakage. Epoxy moulded case offers lightweight and protection suitable for automated assembly.

This product serves critical roles in electronics manufacturing, power conversion, telecommunications, automotive electronics, and various industrial applications requiring efficient rectification and protection.

Explore a wide range of semiconductor components and Schottky diodes on EnvMart to find the perfect match for your technical needs and manufacturing requirements.

Explore more products in our Schottky Diodes & Rectifiers category.
