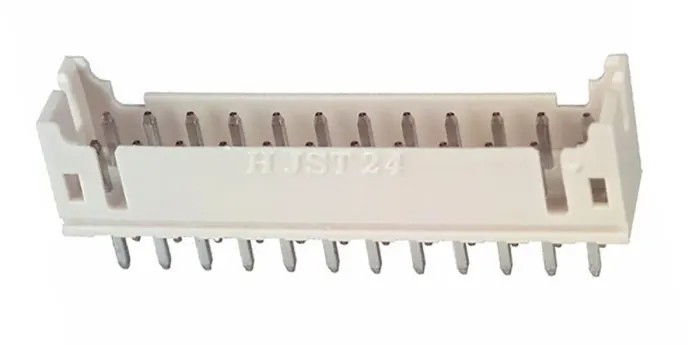

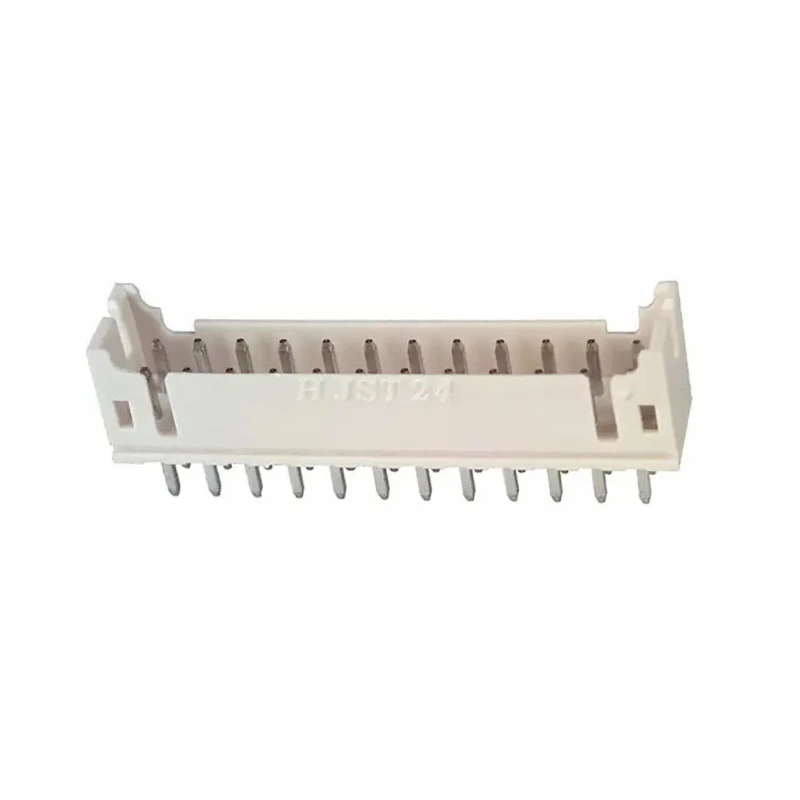

JST PHD Series Straight Through Hole Shrouded PCB Header 24 Contacts 2mm Pitch 2 Row B24B-PHDSS (LF)(SN)

JST B24B-PHDSS (LF)(SN) is a high-density, shrouded PCB header connector from the PHD Series, designed specifically for wire-to-board connections with a straight through hole mounting style. This 24-contact double-row header operates at 250 volts and supports a continuous current of 3 amperes, making it ideal for various electronic circuits requiring reliable connectivity.

The connector housing is molded from glass filled nylon, providing both durability and electrical insulation. The male contacts are made of copper alloy with tin plating, ensuring superior conductivity and corrosion resistance. With a 2 mm pitch and a low profile height of approximately 8.8 mm after mating, it enables compact PCB assembly suitable for high-density electronics.

The shrouded design of this header offers protection against incorrect mating and prevents flux or foreign object intrusion during soldering or assembly processes, enhancing long-term reliability in industrial, laboratory, commercial, and manufacturing settings.

Designed for through-hole mounting, this connector provides sturdy mechanical retention on PCB boards while facilitating solder termination. It is suitable for use in electronic assemblies in telecommunications, instrumentation, automotive electronics, and general industrial equipment.

The operating temperature range from -25°C to 85°C supports diverse environments, making it adaptable to standard electronic and electrical applications. This product originates from Malaysia, reflecting consistent build quality and compliance with manufacturing standards.

This connector supports a maximum current of 3 amperes for reliable performance. The housing is made from durable glass filled nylon material ensuring stability and longevity. Contacts are male gender, composed of copper alloy with tin plating for corrosion resistance.

The through hole mount type facilitates solid PCB integration and solder termination. Operating temperature range is from -25°C to 85°C suitable for diverse environments. The full shrouded design prevents incorrect mating and intrusion of contaminants.

Designed for 250 volts maximum operating voltage, providing safety and stability. Compact size with 2 mm pitch and 2 mm row pitch enables high-density PCB connections. Manufactured in Malaysia ensuring quality and standards adherence.
