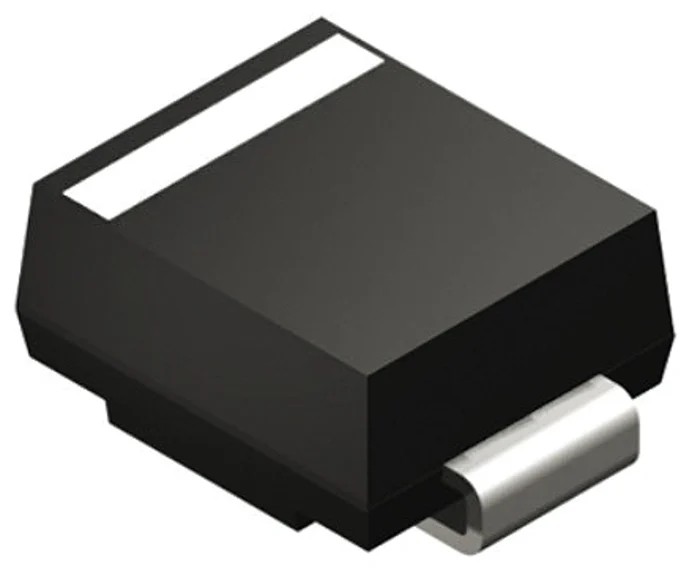

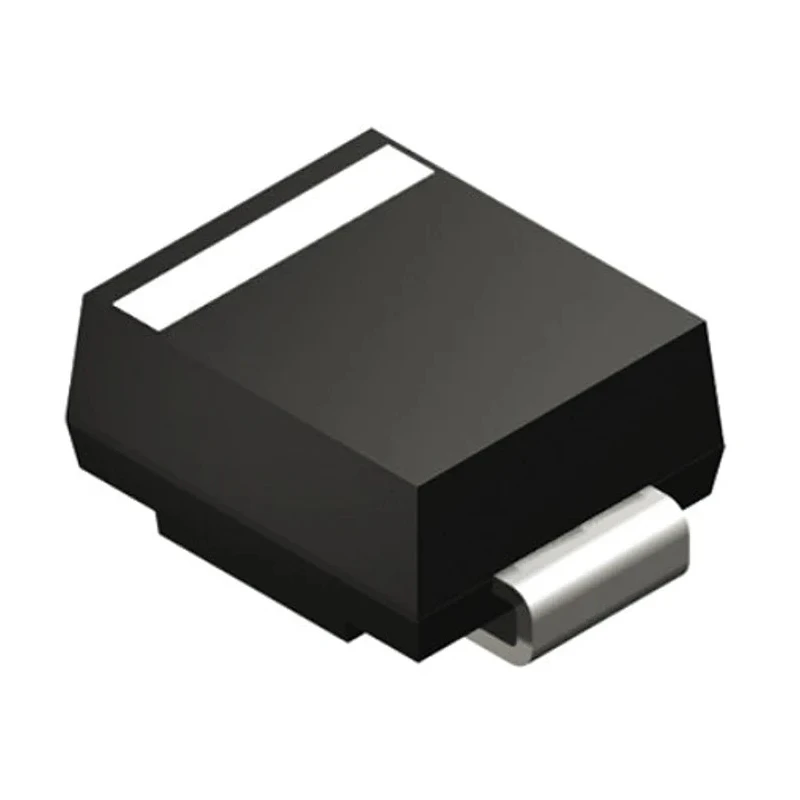

HY Electronic Corp 40 V 5 A Surface Mount Schottky Barrier Rectifier Diode DO-214AA SS54B
Specifications
| Country of Origin | China |
|---|---|
| Brand | HY Electronic Corp |
| Height | 2.23mm |
| Length | 4.7mm |
| Model | SS54B |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | FBI |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Polarity | indicated by cathode band |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 550mV |
| Moulded Plastic Case (Plastic | flammability classification UL 94V-0) |
Key Features
- This Schottky diode features a low forward voltage drop for higher efficiency.
- Packaged in a DO-214AA (SMA) moulded plastic case with UL 94V-0 flammability rating.
- Diode polarity is indicated by a cathode band for easy identification.
- Operating temperature range from -55°C to 150°C suits demanding industrial environments.
- The diode’s peak non-repetitive forward surge current rating is 150 A.
- Compact dimensions of 4.7 mm length, 3.94 mm width, and 2.23 mm height allow space-efficient PCB layouts.
- Ideal for applications such as free-wheeling diodes, inverters, and polarity protection circuits.
- Manufactured in China using epitaxial metal-semiconductor construction with guarding to enhance reliability.
Product Description
HY Electronic Corp SS54B is a high-performance surface mount Schottky barrier rectifier diode designed for efficient low voltage, high current switching applications. The diode offers a maximum continuous forward current of 5 A and can withstand peak reverse voltages up to 40 V. Its construction uses an epitaxial metal-semiconductor junction with guarding to improve performance and reduce forward voltage drop.
Encased in a compact DO-214AA (SMA) moulded plastic package with UL 94V-0 flammability classification, the SS54B provides reliable operation in a wide temperature range from -55°C to 150°C. The polarity is marked clearly by a cathode band to facilitate correct PCB assembly and maintenance.
This Schottky diode is suited for industrial and electronic applications including free-wheeling diodes in power converters, inverters, and polarity protection circuits in power supplies. Its 2-pin surface mount form factor allows for efficient automated assembly processes.
The device features a peak non-repetitive forward surge current rating of 150 A and a maximum forward voltage of 550 mV, enabling efficient power handling with low losses. Its physical dimensions are 4.7 mm in length, 3.94 mm in width, and 2.23 mm in height, making it suitable for compact electronic designs.
This diode’s low forward voltage drop reduces power dissipation. The surface mount DO-214AA package supports high density PCB layouts. Wide operating temperature range ensures performance under harsh conditions. Manufactured under strict quality standards for reliable semiconductor performance.
Typical applications include power supply rectification, polarity protection, and inverter circuits.
The product is sourced from China and is supplied as a new item. It is ideal for use in industrial electronics, consumer appliances, automotive circuits not requiring specific automotive certification, and general power electronics.
Explore a broad range of electronic components and power rectifiers at EnvMart for your design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
