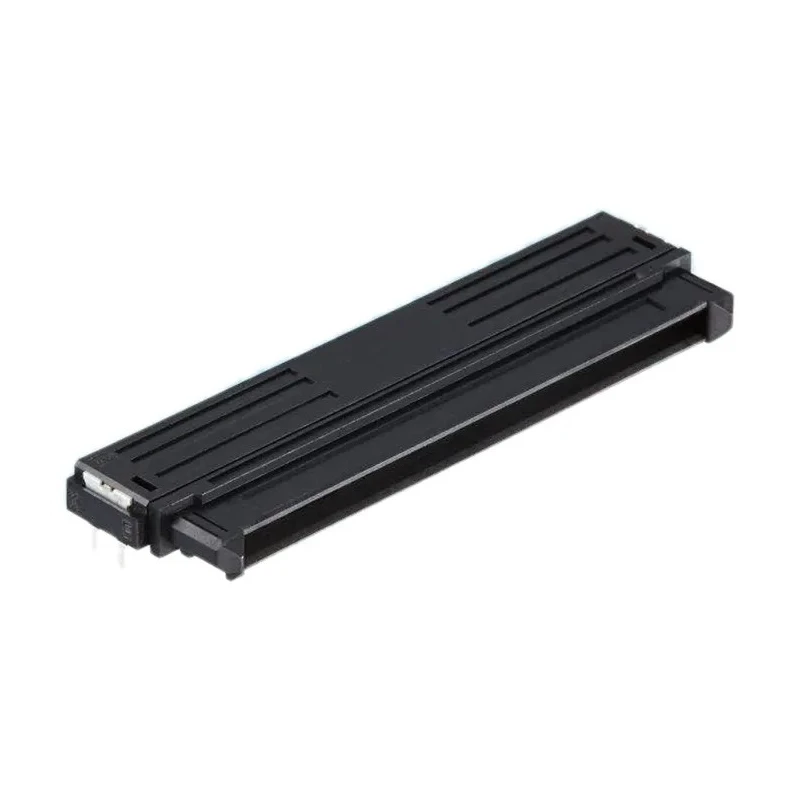

Hirose FX22 Series Right Angle Surface PCB Header, 40 Contacts, 0.5 mm Pitch, 2 Row, Shrouded

Hirose FX22-40P-0.5SH is a series right angle surface mount PCB header connector with 40 contacts arranged in 2 rows with a compact 0.5 mm pitch. This shrouded male connector utilizes a polyamide housing with gold-plated copper alloy contacts that provide outstanding electrical performance and corrosion resistance.

The unique floating feature embedded in the housing enables ±0.6 mm alignment adjustments along X and Z axes to compensate for board mounting tolerances. Large self-alignment guides on either side provide ±1.2 mm movement for precise mating and prevention of incorrect insertion.

Its vibration-resistant double beam contacts guarantee high contact reliability and self-cleaning functionality. The connector’s exceptionally low height of 4.2 mm allows it to fit in tight spaces, making it well suited for high-density board layouts.

This PCB header connector supports a current rating of 700 mA and a voltage rating of 50 V, with an operating temperature range from -55°C up to 85°C. Termination type is solder, and the connector system is board-to-board with surface mount style and right angle orientation.

Typical industrial and commercial applications include smart meters, medical devices, BTS telecommunications equipment, industrial instrumentation, and projectors that require reliable compact board interconnections.

Provides secure board-to-board connection with a compact 0.5 mm pitch. Features durable polyamide housing supporting operating temperatures from -55°C to 85°C. Incorporates gold-plated copper alloy contacts for high reliability and corrosion resistance.

Includes a floating alignment feature allowing ±0.6 mm movement to accommodate mounting variances. Designed for vibration resistance with self-cleaning double beam contacts ensuring consistent connectivity. Extremely low profile design at 4.2 mm height suitable for applications requiring high density mounting.

Supports up to 700 mA current and 50 V voltage rating. Shrouded connector design prevents misinsertion and enhances mechanical stability. Ideal for use in industrial equipment, medical devices, smart meters, BTS, and measuring instruments.

This Hirose FX22 PCB Header is an excellent choice for reliable electrical connections in compact, vibration-prone, and high-density applications. Explore EnvMart’s comprehensive category of PCB Headers for compatible connectors and accessories.
