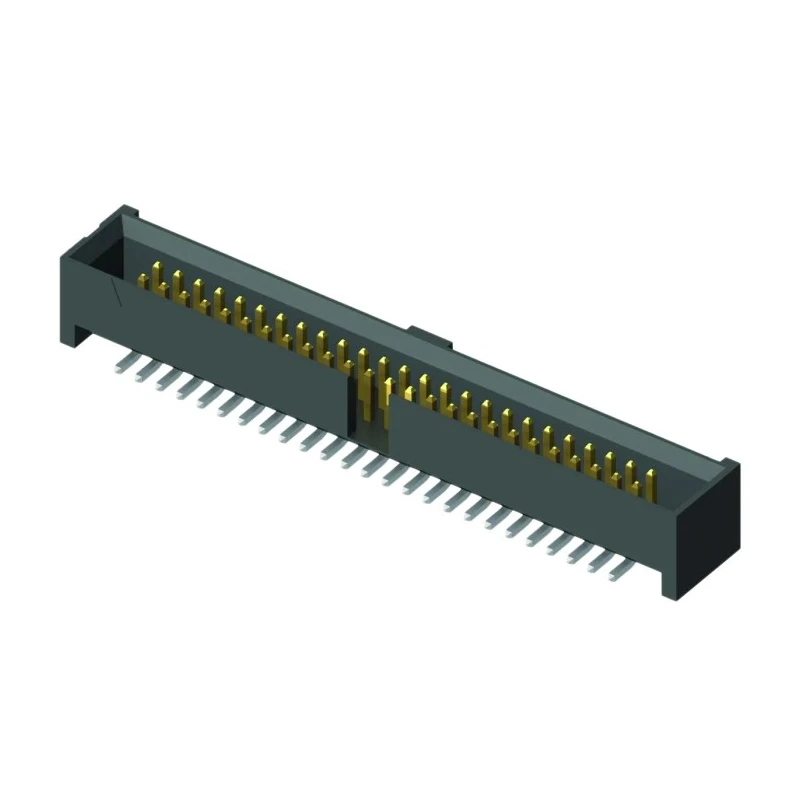

Samtec SHF Series Straight Surface PCB Header, 34 Contacts, 1.27 mm Pitch, 2 Row, Shrouded SHF-117-01-L-D-SM

Samtec SHF-117-01-L-D-SM is a high-quality SHF Series straight surface PCB header that provides 34 male contacts in a compact 2-row configuration with 1.27 mm pitch. The shrouded design offers added protection and correct orientation during assembly, reducing mating errors. Its housing is constructed from liquid crystal polymer, offering excellent durability and temperature resistance for demanding electronic environments.

This PCB header supports a continuous current of up to 3A, making it ideal for power and signal applications on printed circuit boards in industrial, commercial, and laboratory settings. The contacts are made of phosphor bronze and plated with gold to ensure low resistance and corrosion resistance over repeated mating cycles.

The surface mount type provides easy and reliable installation on PCBs, especially suited for wire-to-board connector systems. Operating temperature range spans from -55°C to 125°C, making it suitable for electronics exposed to varied environmental conditions such as automotive and HVAC control systems.

The 3.05 mm mating pin length and solder termination contribute to a secure mechanical and electrical connection, ensuring stability for critical applications in manufacturing and telecommunications.

The SHF Series headers feature a polarizing notch for precise and error-free mating with compatible connectors, improving assembly efficiency and reducing the risk of damage. Comprises 34 gold plated male contacts for reliable connectivity.

Uses liquid crystal polymer housing for durability and high-temperature resistance. Supports a current rating of 3A suitable for moderate power applications. Mount type is surface mount, compatible with wire-to-board connector systems.

Operates efficiently between -55°C and 125°C temperature range. Contact material is phosphor bronze ensuring excellent conductivity and resilience. Includes polarizing notch for accurate mating with compatible connectors.

Mating pin length measures 3.05 mm for secure PCB connection. Termination type is solder, facilitating strong mechanical and electrical bonds. Designed for industrial electronic, power, and connector applications.

Ideal for usage in PCB assemblies across industrial, manufacturing, and electronics testing applications. Explore more in the PCB Headers category on EnvMart for related electronic connector solutions.
