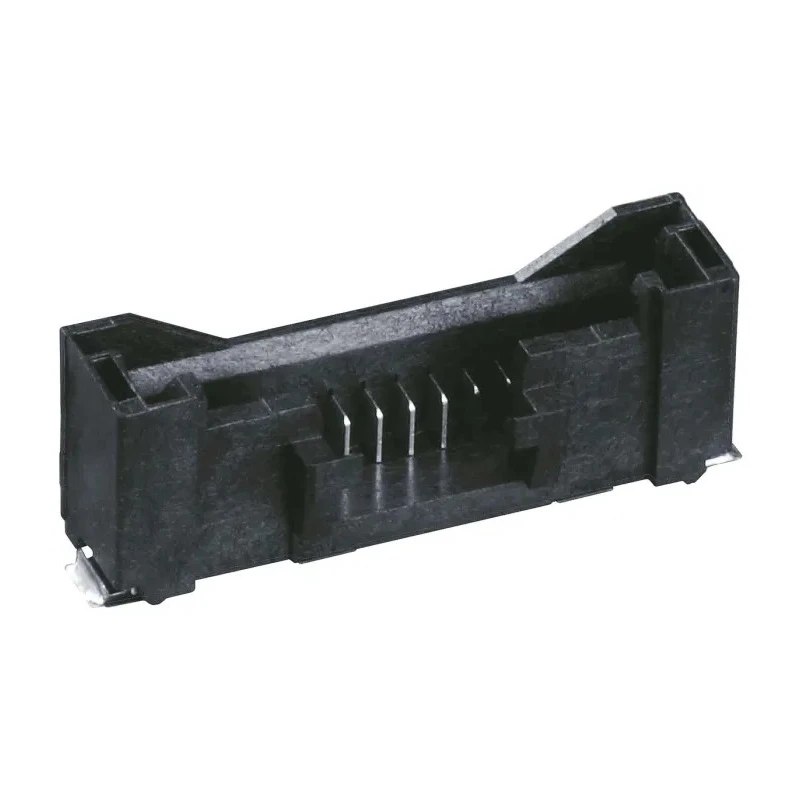

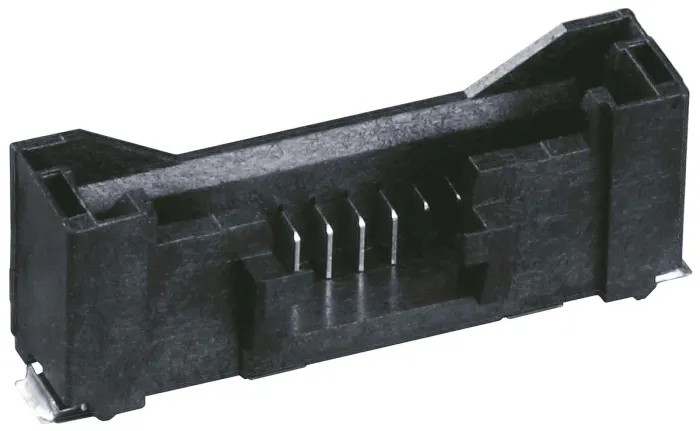

Hirose DF50 Series Straight Surface PCB Header, 10 Contacts, 1 mm Pitch, 1 Row, Shrouded DF50

Hirose DF50 Series Straight Surface PCB Header DF50 is a high-quality wire-to-board connector designed with 1.0 mm pitch, 10 contacts, and a single-row shrouded housing constructed from Liquid Crystal Polymer (LCP). This PCB header is engineered to provide a secure and reliable connection using a positive locking latch mechanism that ensures tactile and audible confirmation during mating, critical in high-vibration environments.

The contacts are made of brass and plated with gold, offering excellent electrical conductivity and resistance to corrosion. Rated for 1A current and 100V voltage, this surface mount PCB header operates efficiently across a broad temperature range from -35°C to 85°C, making it suitable for various industrial and consumer electronics including LCD TVs, digital displays, notebooks, wireless LAN devices, industrial controllers, office machines, and automotive audio-navigation systems.

The compact 1.0 mm pitch reduces PCB footprint, facilitating space-efficient board designs. Its straight orientation and shrouded design provide physical protection and prevent improper connections. Termination is by soldering, and the contact gender is male to mate with respective female connectors.

Constructed with durable Liquid Crystal Polymer housing. Brass contacts feature gold plating for enhanced conductivity. Supports up to 1A current and 100V voltage operation. Surface mount type for PCB installation. Designed with a positive locking latch for secure connection.

Operational temperature range from -35°C to 85°C. Compact 1.0 mm pitch and single-row configuration. Male contacts with solder termination. Ideal for industrial electronics, automotive, and consumer device applications. Manufactured in Malaysia ensuring high-quality standards.

Choose the Hirose DF50 Series PCB Header for reliable, high-performance PCB connectivity in demanding electronic applications.
