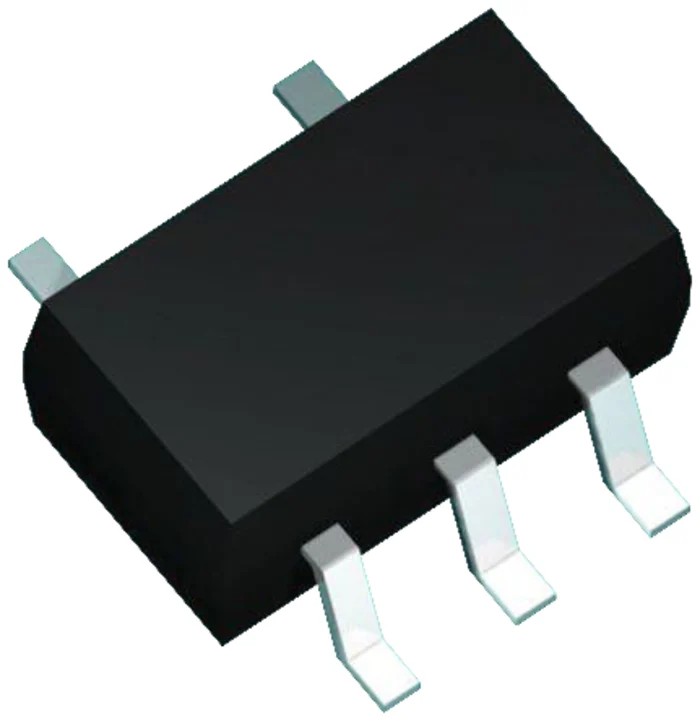

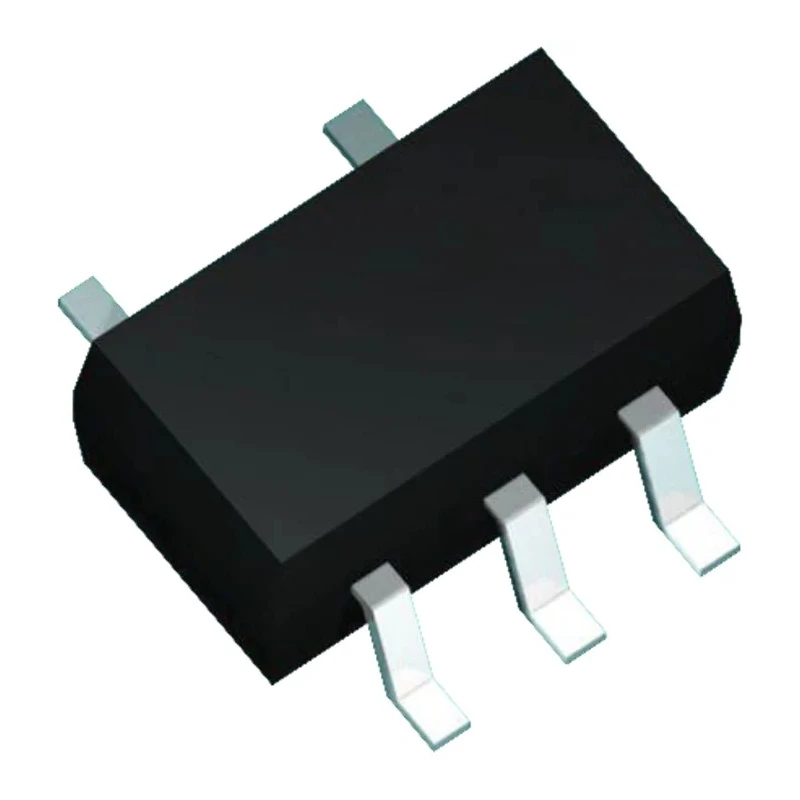

DiodesZetex Surface Hall Effect Sensor 1.65 V 3.3V SOT-553 5-Pin AH1883-ZG-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Response time | 3.75μs |
| Height | 600μm |
| Length | 1.7mm |
| Model | AH1883-ZG-7 |
| Technology | Chopper Stabilised |
| Sensor Type | Hall Effect Sensors |
| Width | 1.25mm |
| Mount Type | Surface |
| Series | AH1883 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-553 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Maximum Supply Voltage | 3.3V |
| Minimum Supply Voltage | 1.65V |
| Magnetic Type | Omnipolar |
Key Features
- Utilizes Chopper Stabilised technology for improved stability and accuracy.
- Designed for omnipolar magnetic field detection with a fast 3.75µs response time.
- Wide operating temperature range from -40°C to 85°C ensures reliability in various environments.
- Compact dimensions measuring 1.7mm length, 1.25mm width, and 600µm height provide ease of surface mounting.
- Equipped with 5 pins for secure and stable circuit integration.
- Complies with RoHS standards for environmental safety.
- Ideal for non-contact switching and sensing in industrial and automotive electronics.
- Suitable for PCB integration in motion detection and position sensing tasks.
Product Description
DiodesZetex AH1883-ZG-7 is a Surface Mount Hall Effect Sensor designed for ultra-reliable magnetic field sensing in industrial, automotive, and commercial electronics. Operating at a minimum supply voltage of 1.65 V and maximum of 3.3 V, this 5-pin sensor utilizes chopper stabilised technology to provide highly stable and precise digital switching outputs triggered by omnipolar magnetic fields.
The device's compact SOT-553 form factor, measuring just 1.7mm in length, 1.25mm in width, and 600μm in height, supports efficient surface mounting on printed circuit boards in space-constrained applications.
AH1883-ZG-7 functions effectively across a wide temperature range from -40°C to 85°C, making it suitable for harsh environments and automotive-grade applications. Its rapid response time of 3.75 microseconds allows for timely detection in dynamic systems.
Compliance with RoHS standards ensures environmentally friendly manufacturing and supports regulatory requirements. Chopper Stabilised technology offers improved sensor stability. Omnipolar magnetic detection allows switching for different magnetic polarities.
Compact SOT-553 package simplifies PCB integration. Wide temperature operating range enhances versatility in applications. Fast response time enables precise motion and position sensing. Five-pin configuration ensures robustness in signal and power connections.
RoHS compliant for environmental safety. Perfect for industrial control, automotive systems, and consumer electronics.
This Hall Effect Sensor is widely applied in motion sensor ICs for non-contact switching and magnetic field sensing in industrial, laboratory instrumentation, automotive systems, and HVAC controls.
Explore the full range of DiodesZetex sensors at EnvMart for reliable sensor components designed for precision and durability in demanding electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The response time of this Hall Effect sensor is 3.75 microseconds, allowing for timely detection in dynamic systems.
It operates effectively across a wide temperature range from -40°C to 85°C, making it suitable for harsh environments.
This model has compact dimensions measuring 1.7mm in length, 1.25mm in width, and 600μm in height, facilitating easy surface mounting.
It utilizes chopper stabilised technology, which enhances stability and accuracy in its performance.
The sensor operates with a minimum supply voltage of 1.65 V and a maximum of 3.3 V.
This model is equipped with 5 pins, ensuring secure and stable circuit integration.
Yes, it complies with RoHS standards for environmental safety, supporting regulatory requirements.
It supports omnipolar magnetic detection, allowing for switching with different magnetic polarities.
This model is designed for surface mounting, which is ideal for space-constrained applications.
It is suitable for non-contact switching and sensing in industrial, automotive, and consumer electronics applications.
It comes in a SOT-553 package type, which supports efficient PCB integration.
The series name of this sensor is AH1883, indicating its specific line within the DiodesZetex product range.
