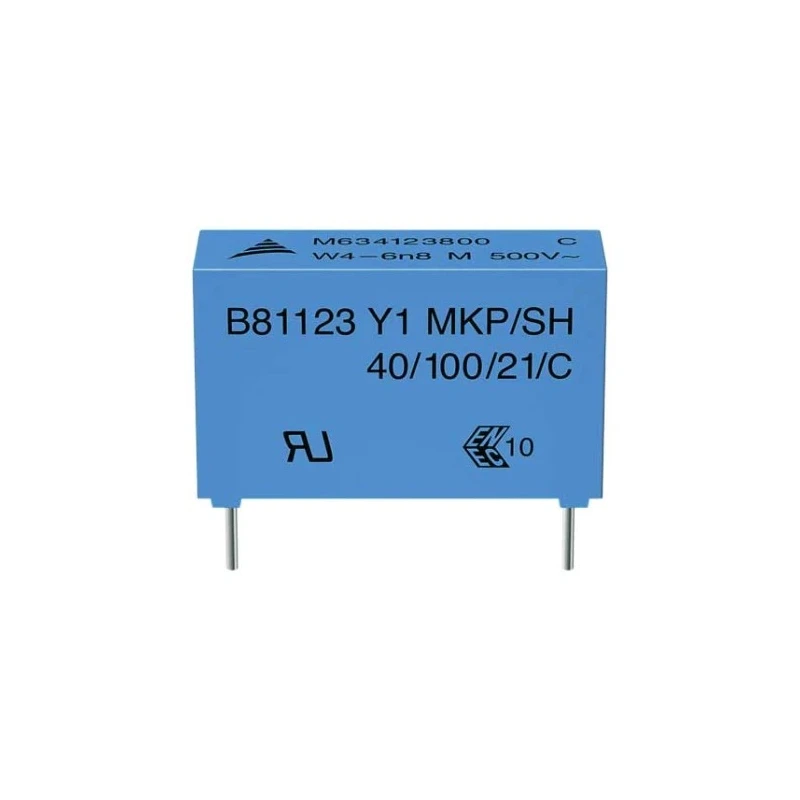

TDK B81123 Film Capacitor 1 nF 500V AC 3 kV DC Through Hole 2 Pins B81123C1102M000

Free Delivery in India | Lowest Global Shipping Charges

TDK B81123 Film Capacitor 1 nF 500V AC 3 kV DC Through Hole 2 Pins B81123C1102M000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	10.5mm
Length	18mm
Model	B81123C1102M000
Width	5mm
Mount Type	Through Hole
Series	B81123
Maximum Operating Temperature	110°C
Capacitance	1nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	500V ac
Rated DC Voltage	3kV dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D
Suppression Class	Y1

Key Features

Capacitance rated at 1 nanofarad for precise filtering and noise suppression.
Rated for 500V AC and 3 kV DC voltage operation for robust electrical performance.
Through Hole mounting with 2 pins and 15 mm lead pitch for PCB assembly.
Complies with automotive standard AEC-Q200 Rev D ensuring reliability in automotive environments.
Maximum operating temperature of 110°C for high temperature stability and durability.
Encapsulated with self-extinguishing UL94V-0 material supporting safety standards.
Y Class - Y1 capacitor suitable for line-to-ground applications with excellent self-healing properties.
Standards compliance includes RoHS and UL approvals for environmental and safety regulations.

Product Description

TDK B81123C1102M000 Film Capacitor is a high-quality electronic component designed for precise filtering and suppression applications in industrial, automotive, and electronic manufacturing sectors. This film capacitor is rated at 1 nF capacitance with a 500V AC rating and 3 kV DC maximum voltage, making it suitable for demanding electrical environments requiring reinforced or double insulation (class Y1).

The capacitor features Through Hole mounting style with 2 pins spaced at a 15 mm lead pitch, facilitating secure printed circuit board (PCB) assembly. It meets the automotive industry standard AEC-Q200 Rev D, guaranteeing dependable performance under automotive operating conditions.

The physical dimensions include an 18 mm length, 10.5 mm height, and 5 mm width, with lead diameter of 0.8 mm. The component is encapsulated using UL94V-0 self-extinguishing material ensuring fire safety during operation.

This capacitor is suitable for line-to-ground noise suppression and power supply filtering applications, with standards compliance including RoHS and UL certifications, emphasizing eco-friendliness and safety compliance.

Capacitance rated at 1 nF for noise filtering. 500V AC and 3 kV DC voltage ratings for robust electrical isolation. Through Hole mounting style with 2 pins and 15 mm pitch. Meets automotive standard AEC-Q200 Rev D for reliability.

Maximum operating temperature up to 110°C. Compact dimensions: 18x10.5x5 mm. Self-extinguishing encapsulation per UL94V-0. Complies with RoHS and UL standards. Ideal for Y1 class line-to-ground applications. Pin count: 2 for easy integration.

This Film Capacitor is widely used in electronic components manufacturing, automotive electronics, power supply units, industrial control systems, and high-reliability applications requiring reinforced insulation. Its robust electrical specs and standard approvals make it ideal for engineers designing safety-critical and durable electrical devices. Explore more electronic components and capacitors on EnvMart for your project and industrial automation needs.
