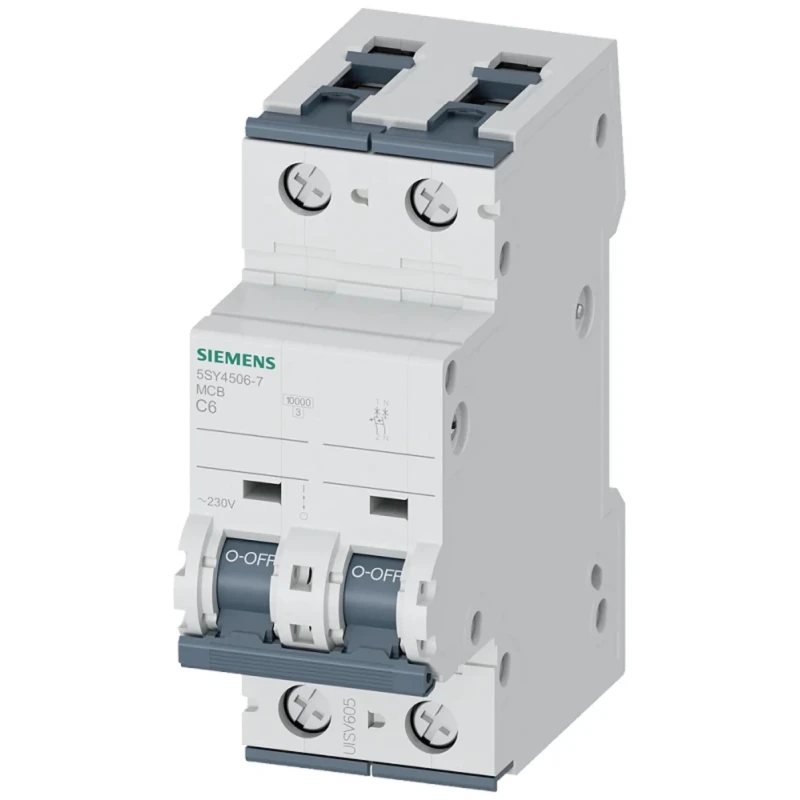

Siemens SENTRON Miniature Circuit Breaker 1-Pole 6A Type C 230V AC 60V DC 10 kA Breaking Capacity 5SY4506-7
Specifications
| Country of Origin | Germany |
|---|---|
| Range | SENTRON |
| Brand | Siemens |
| Height | 90mm |
| Model | 5SY4506-7 |
| Depth | 76mm |
| IP Rating | IP20 |
| Width | 36mm |
| Mount Type | DIN Rail |
| Current Rating | 6A |
| Series | 5SY4 |
| Terminal type | Combined Terminal |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60947-2/UL1077, IEC/EN 60898-1 |
| Rated AC Voltage | 230V ac |
| Rated DC Voltage | 60V |
| Tripping Characteristics | Type C |
| Better World Claim | Extended Product Life |
Key Features
- Compact 1-pole design suitable for DIN rail mounting.
- Supports rated voltages of 230V AC and 60V DC.
- Breaking capacity of 10 kA ensures enhanced safety under fault conditions.
- Constructed with halogen-free and silicon-free materials for compliance and safety.
- Mechanical service life supports up to 10,000 operational cycles.
- Touch protection minimizes risk of accidental contact during handling.
- Designed to operate reliably within a temperature range of -40°C to 70°C.
- Complies with IEC/EN 60947-2, UL1077, and IEC/EN 60898-1 standards.
Product Description
Siemens 5SY4506-7 SENTRON Miniature Circuit Breaker is engineered to provide reliable electrical protection in residential, commercial, and industrial applications. This 1-pole circuit breaker operates at a current rating of 6A and features Type C tripping characteristics, allowing it to respond effectively to overloads while accommodating transient inrush currents common in inductive loads.
This device supports rated voltages of 230V AC and 60V DC and offers a high breaking capacity of 10 kA, ensuring safety during short circuit conditions. Its compact dimensions of 90mm length, 36mm width, and 76mm depth make it suitable for efficient DIN rail mounting within electrical panels.
Constructed with halogen-free and silicon-free materials, this MCB meets international safety standards including IEC/EN 60947-2, UL1077, and IEC/EN 60898-1. The integrated touch protection feature prevents accidental contact, enhancing user safety during installation and maintenance.
With a mechanical service life of up to 10,000 cycles and the ability to operate in harsh environments ranging from -40°C to 70°C, this circuit breaker is a durable and reliable choice for power distribution protection. It is widely used across various sectors such as industrial automation, commercial facilities, and critical infrastructure requiring low voltage circuit protection.
Compact 1-pole design suitable for DIN rail mounting. Rates of 230V AC and 60V DC enable flexible application. Breaking capacity of 10 kA ensures robust fault protection. Halogen-free, silicon-free materials ensure compliance and safety.
Touch protection prevents accidental contact. Mechanical life rated to 10,000 cycles provides long-term reliability. Wide operating temperature range from -40°C to 70°C. Compliant with IEC/EN 60947-2, UL1077, IEC/EN 60898-1 standards.
Explore more Siemens products and components for electrical automation and protection at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 6A.
It has a breaking capacity of 10 kA, ensuring effective protection during fault conditions.
This unit supports rated voltages of 230V AC and 60V DC.
The dimensions are 90mm in height, 36mm in width, and 76mm in depth.
It is designed for DIN rail mounting, making it suitable for installation in electrical panels.
This circuit breaker features Type C tripping characteristics, which are effective for handling overloads and transient inrush currents.
It is constructed with halogen-free and silicon-free materials, ensuring compliance with safety standards.
The mechanical service life of this circuit breaker is rated for up to 10,000 operational cycles.
It operates reliably within a temperature range of -40°C to 70°C.
It complies with IEC/EN 60947-2, UL1077, and IEC/EN 60898-1 standards.
It features a combined terminal type, which allows for flexible wiring options.
This model is suitable for residential, commercial, and industrial applications requiring reliable electrical protection.
