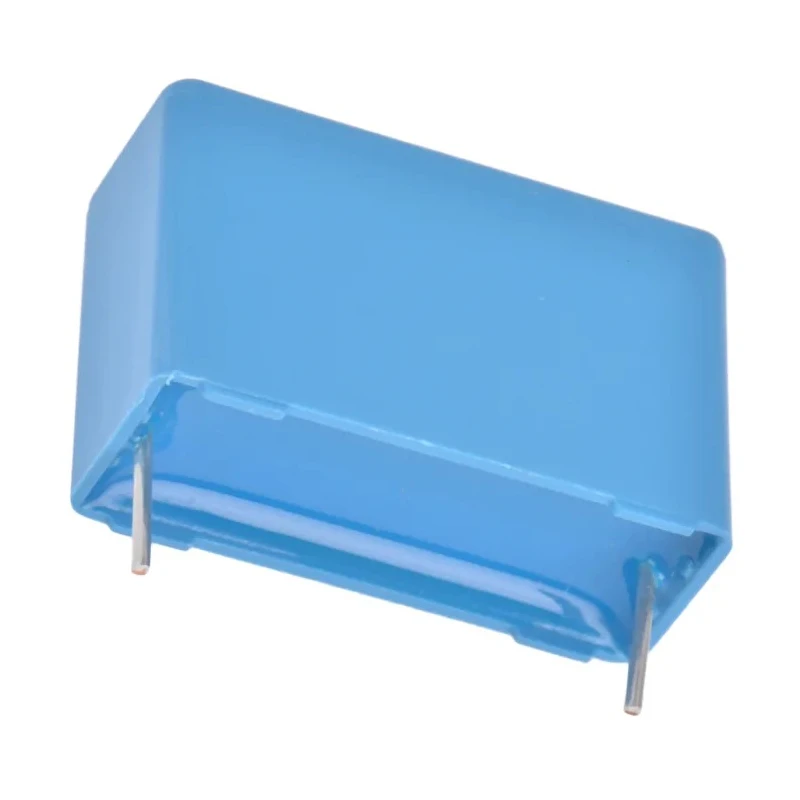

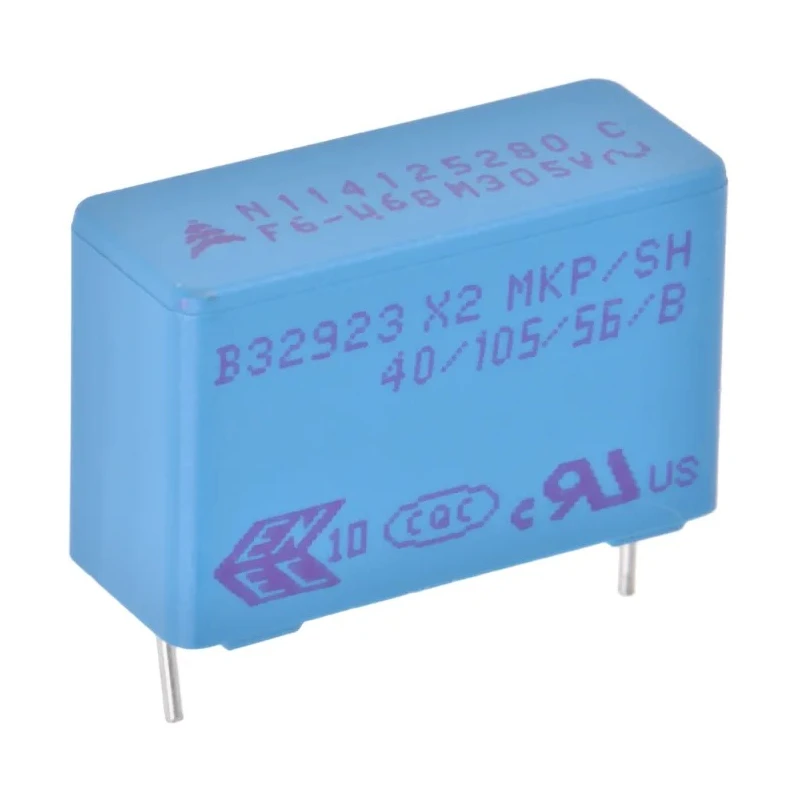

TDK Film Capacitor 680 nF 305V AC 630V DC, Through Hole Mount, 2 Pin B32923C3684M000

TDK B32923C3684M000 is a high-quality film capacitor designed for electronic and industrial applications requiring stable capacitance and reliable EMI suppression. It features a capacitance of 680 nF with rated voltages of 305V AC and 630V DC.

This capacitor employs a through-hole mount with 2 pins, having a lead pitch of 22.5 mm and lead diameter of 0.8 mm, making it suitable for PCB assembly and wave soldering processes. The compact physical size of 26.5 mm length, 16.5 mm height, and 10.5 mm width allows it to fit into constrained circuit spaces.

It operates safely up to 110 degrees Celsius and meets X2 class suppression requirements, meaning it is suitable for connection across the AC mains to filter transient disturbances while minimizing electric shock risk if properly installed. The plastic case is sealed with epoxy resin that complies with UL 94 V-0 flame retardant standards, ensuring durability and safety in demanding environments.

Applications include use in power supplies, EMI filtering circuits, industrial equipment, and other electronic devices requiring robust capacitors that withstand AC mains interference.

Capacitance value of 680 nanofarads for reliable signal filtering and EMI suppression. Rated for 305 volts alternating current and 630 volts direct current operation. Through hole mount type with 22.5 mm lead pitch and 0.8 mm lead diameter for easy PCB insertion.

Compact dimensions: 26.5 mm length, 16.5 mm height, and 10.5 mm width. Operating temperature rated up to 110 degrees Celsius suitable for harsh environments. Class X2 suppression capacitor type, ideal for line interference reduction in AC mains circuits.

Plastic case with epoxy resin sealing, UL 94 V-0 flame retardance. Explore the Electronics Components category for more Film Capacitors and passive components on EnvMart.
