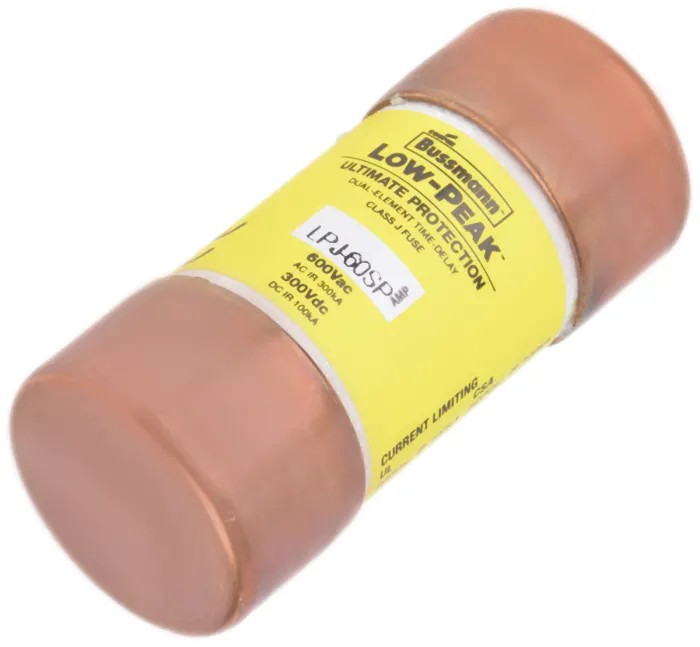

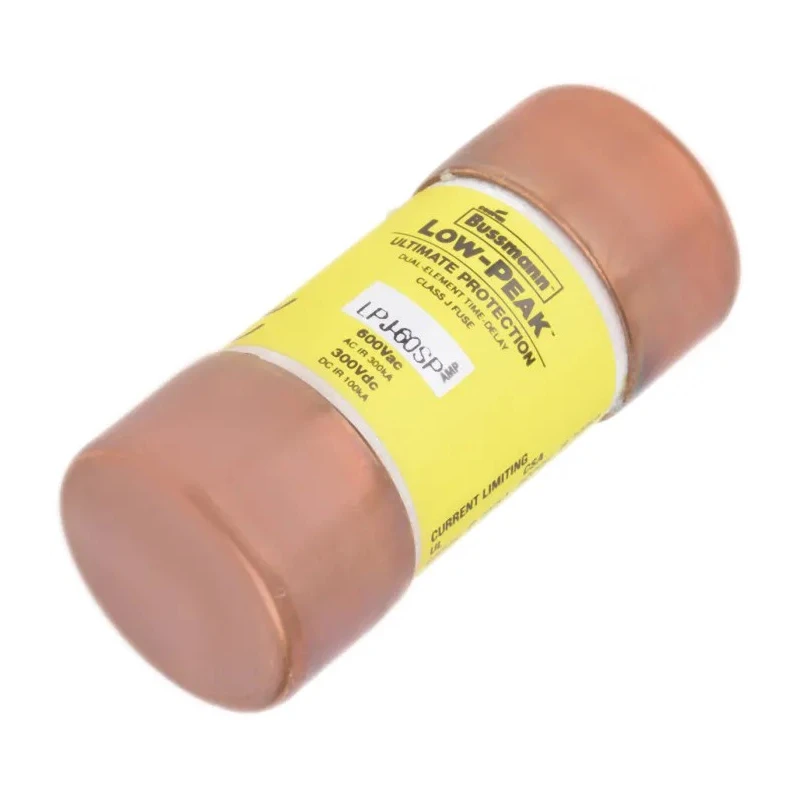

Eaton 60A Time Delay Dual-Element Cartridge Fuse 25 x 60 mm, 600V AC, High Breaking Capacity LPJ-60SP

Eaton LPJ-60SP is a 60 ampere dual-element, time delay cartridge fuse designed for use in electrical systems requiring protection from short circuits and temporal power surges. The 25 x 60 mm (1.06 x 2.38 inches) size with 600V AC rating suits circuits prone to overloads, such as motors and lighting equipment. Its slow-blow characteristics allow a minimum 10-second delay at five times the rated current to accommodate inrush currents common in capacitive and motor loads.

This fuse features a high breaking capacity of 300kA, providing a robust safety margin by quickly interrupting fault currents to protect connected equipment and wiring. The unique dimensions prevent accidental replacement with incompatible fuse types, ensuring system integrity and safety compliance.

The dual-element construction reduces power loss and helps maintain a cooler operating temperature, enhancing fuse longevity and circuit stability. Eaton’s LPJ series cartridge fuses meet UL 248-8 Class J standards and carry UL Listing and CSA Certification, ensuring compliance with stringent safety requirements.

Applications include use in industrial, commercial, HVAC, and electrical automation environments where reliable protection for motors, transformers, and other inductive loads is critical. This fuse is ideal for circuits that experience temporary surges but require continued operation without nuisance fuse blowing.

Dual-element time-delay fuse technology reduces nuisance blows caused by short-term surges. High rupture capacity of 300,000 amperes enhances safety in demanding electrical environments. Slow-blow fuse characteristics support motor start-ups and fluorescent lamps.

Compact 25 x 60 mm size designed to meet North American standards. Manufactured to UL 248-8 Class J specifications and CSA certified. Constructed with robust materials to ensure durability and reliable operation. Suitable for use in industrial control panels, HVAC systems, and motor protection circuits.

Choose Eaton Cartridge Fuses for effective overload and short circuit protection in critical electrical applications. Browse the Electronics & Electricals category at EnvMart for a wide range of circuit protection devices and accessories.
