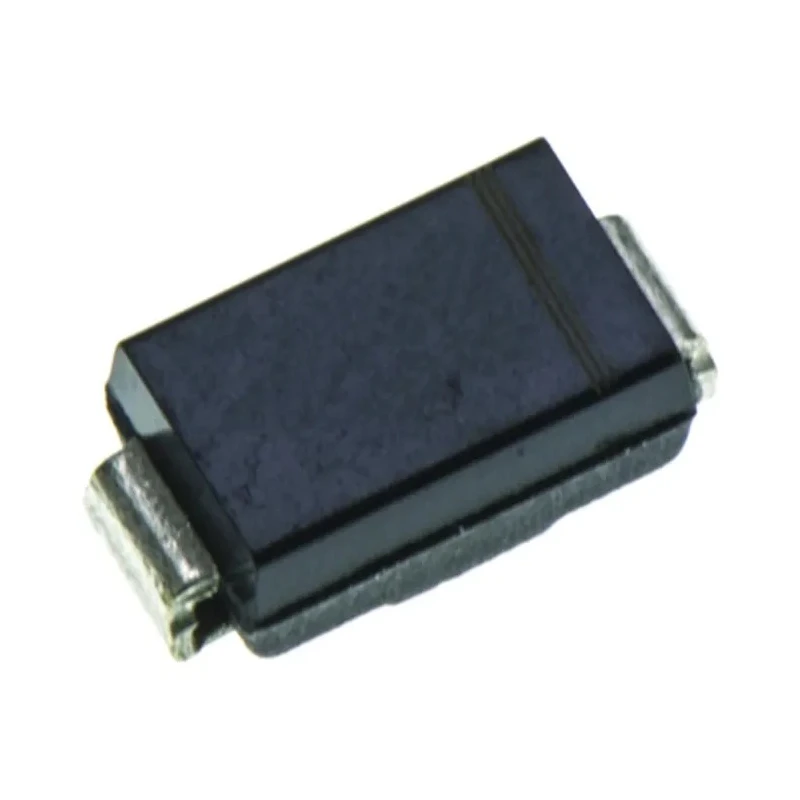

STMicroelectronics Schottky Diode 100 V 1 A Surface Mount DO-214AC Package STPS1H100AY

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Schottky Diode 100 V 1 A Surface Mount DO-214AC Package STPS1H100AY

Name: STMicroelectronics Schottky Diode 100 V 1 A Surface Mount DO-214AC Package STPS1H100AY
Brand: STMicroelectronics
SKU: 384611
Price: 0.19 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	2.45mm
Length	4.6mm
Model	STPS1H100AY
Width	2.9mm
Mount Type	Surface
Series	STPS1H100
Maximum Operating Temperature	175°C
Package Type	DO-214AC
Minimum Operating Temperature	-40°C
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	500μA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Maximum Forward Voltage Vf	0.62V

Key Features

This diode uses a Schottky barrier structure for low forward voltage drop.
The package type is compact DO-214AC suitable for surface mounting.
Maximum forward voltage is 0.62 V ensuring efficiency in power applications.
It operates reliably from -40°C up to a maximum of 175°C.
Peak non-repetitive surge current capability is 50 A for transient operation.
The device has a 2.45 mm height, 4.6 mm length, and 2.9 mm width footprint.
Peak reverse current is limited to 500 μA, enhancing performance stability.
It is ideal for use in power conversion, rectification circuits, and surface mount applications.

Product Description

STMicroelectronics STPS1H100AY is a Schottky diode designed for high power and efficiency in electronic circuits. Featuring a surface mount DO-214AC package, this diode supports a maximum continuous forward current of 1 A and withstands peak reverse repetitive voltage of 100 V.

The Schottky barrier design reduces forward voltage to a maximum of 0.62 V, improving power efficiency and thermal management. Rated for operation over a wide temperature range from -40°C to 175°C, it is suitable for demanding industrial and commercial electronic applications.

This device supports a peak non-repetitive forward surge current of 50 A, enabling it to handle transient high current conditions without damage. Its compact physical dimensions (2.45 mm height, 4.6 mm length, and 2.9 mm width) make it suitable for surface-mounted circuit boards in power rectifiers and switching power supplies.

The diode offers low peak reverse current leakage of 500 μA, enhancing circuit performance and reducing power loss. Although no specific automotive standards or additional certifications apply, its robust specifications make it widely applicable in power management and semiconductor circuits.

Applications include power conversion, rectification, voltage clamping, and protection in industrial electronics, manufacturing, and laboratory instrumentation. This diode uses a Schottky barrier structure for low forward voltage drop.

The package type is compact DO-214AC suitable for surface mounting. Maximum forward voltage is 0.62 V ensuring efficiency in power applications. It operates reliably from -40°C up to a maximum of 175°C. Peak non-repetitive surge current capability is 50 A for transient operation.

The device has a 2.45 mm height, 4.6 mm length, and 2.9 mm width footprint. Peak reverse current is limited to 500 μA, enhancing performance stability. It is ideal for use in power conversion, rectification circuits, and surface mount applications.

No automotive standards or additional approvals are specified. Explore more semiconductor products and Schottky diodes for advanced electronic designs with EnvMart’s comprehensive catalog.
