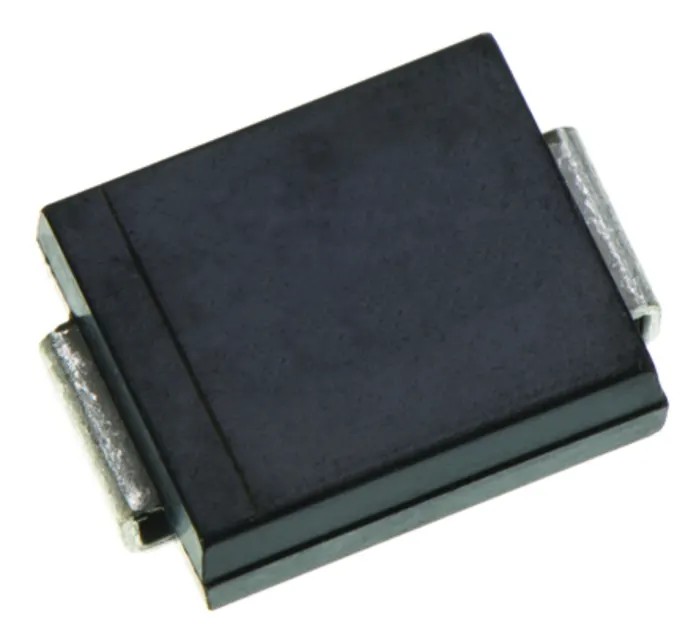

STMicroelectronics Schottky Diode Surface Mount DO-214AB 60 V 5 A STPS5L60S

Free Delivery in India | Lowest Global Shipping Charges

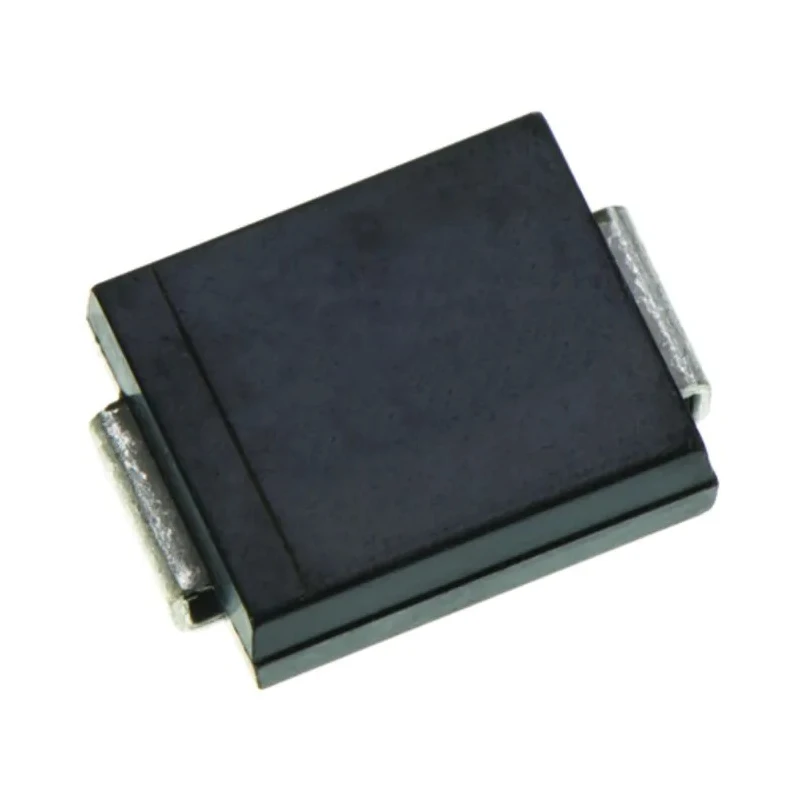

STMicroelectronics Schottky Diode Surface Mount DO-214AB 60 V 5 A STPS5L60S

Name: STMicroelectronics Schottky Diode Surface Mount DO-214AB 60 V 5 A STPS5L60S
Brand: STMicroelectronics
SKU: 384620
Price: 0.38 USD
Availability: InStock



Category Schottky Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	2.45mm
Length	7.15mm
Model	STPS5L60S
Width	6.25mm
Mount Type	Surface
Series	STPS5L60
Maximum Operating Temperature	150°C
Package Type	DO-214AB (SMC)
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	5A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	100mA
Peak Non-Repetitive Forward Surge Current Ifsm	150A
Maximum Forward Voltage Vf	0.42V

Key Features

The diode is configured as a single Schottky barrier diode optimized for fast switching.
Package type is DO-214AB (SMC) surface mount suitable for automated PCB assembly.
Maximum forward voltage drop of 0.42 V ensures low power loss during conduction.
Thermal ratings include a maximum operating temperature up to 150°C and minimum operating temperature down to -65°C.
Pin count is 2 with a compact form factor of 7.15 mm length, 6.25 mm width, and 2.45 mm height.
Peak reverse current is 100 mA with a robust peak non-repetitive forward surge current of 150 A.
The diode does not comply with automotive standards and has no certifications listed.
It is ideal for applications in power supplies, consumer electronics, and industrial equipment where fast and efficient rectification is required.

Product Description

STMicroelectronics STPS5L60S is a reliable Schottky diode designed for surface mount applications in compact and high-efficiency power circuits. This diode supports a maximum continuous forward current of 5 A and a peak reverse repetitive voltage of 60 V, ensuring robust performance in switched-mode power supplies, power management, and other electronic devices.

The device uses the DO-214AB (SMC) package, which is surface mount compatible, enabling easy integration into automated assembly lines. Its low forward voltage of 0.42 V reduces power dissipation, enhancing overall system efficiency.

The diode maintains functionality across a wide temperature range from -65°C to 150°C, suitable for industrial and commercial environments without automotive standard certification. Its compact dimensions, 7.15 mm in length, 6.25 mm in width, and 2.45 mm in height, help reduce PCB footprint in dense designs.

With 2 pins and a single diode configuration, this component provides effective rectification solutions for power supplies and related electronics. The peak non-repetitive forward surge current capability of 150 A allows it to withstand sudden high load conditions without damage.

The diode is a single Schottky barrier junction type fabricated for low forward voltage drop and fast switching. Surface mount DO-214AB package enables compact size and efficient PCB layout. Maximum continuous current rating of 5 A supports medium power applications.

Thermal performance allows operation in ambient temperatures down to -65°C and up to 150°C. Peak reverse repetitive voltage is 60 V with peak surge current up to 150 A. Dimensions of 7.15 mm by 6.25 mm by 2.45 mm fit space-constrained designs.

Applications include power rectification in industrial, electronic, and commercial devices requiring reliable Schottky Diodes. Explore the range of STMicroelectronics semiconductor components at EnvMart for quality and reliability in electronic design and manufacturing.
