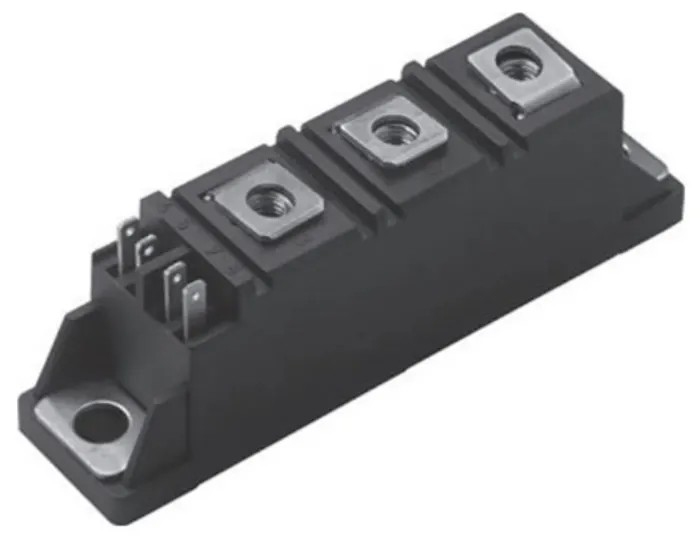

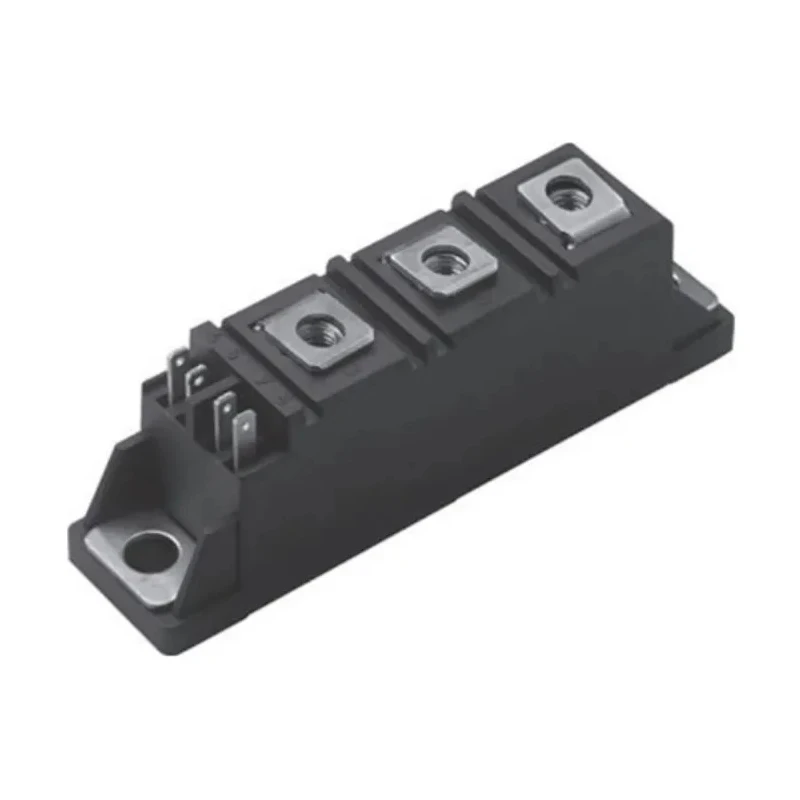

Vishay Thyristor Module 1600 V 2 kA, 95 A, 270 mA Gate Current, 1.73 V Peak On-State Voltage TO-240AA 7-Pin VS-VSKT91/16

Vishay VS-VSKT91/16 Thyristor Module is an industrial-grade solid-state semiconductor device rated for a repetitive peak reverse voltage of 1600 V and a surge current of 2 kiloamperes suitable for high power switching applications. This module has a rated average on-state current of 95 A and a peak on-state voltage drop of 1.73 V, offering efficient conduction with low power dissipation.

The device utilizes a TO-240AA 7-pin package with panel mounting type and a compact form factor measuring 92 mm in length, 30 mm in height, and 22.6 mm in width. The maximum operating temperature of 125°C ensures reliability in harsh environments. The maximum gate trigger current is 270 mA, with a suitable maximum gate trigger voltage of 4 V, facilitating precise control of the thyristor switching.

This thyristor is ideal for use in battery charging systems, industrial welding equipment, regulated power supplies, temperature, and speed control circuits. The module features an electrically isolated base plate to improve thermal management and enable safe integration into complex systems.

The module delivers a reliable holding current of 250 mA ensuring stable conduction after triggering. It has a repetitive peak off-state current of 15 mA, minimizing leakage during off state conditions. Encapsulated design offers mechanical robustness and electrical isolation.

Its industrial standard ADD-A-PAK package forms part of Vishay’s range of high-quality semiconductor modules. This device is manufactured in India and is rated as new condition. Explore and select from a wide category of semiconductor power modules and thyristors suitable for industrial, electrical, and electronics system designs at EnvMart.
