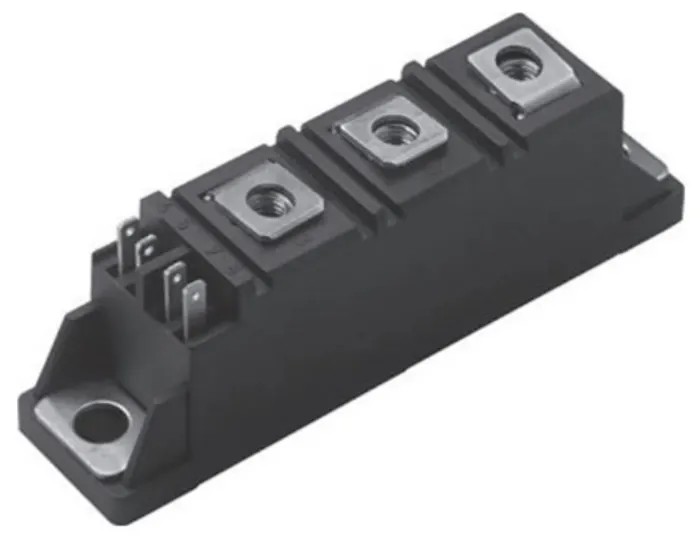

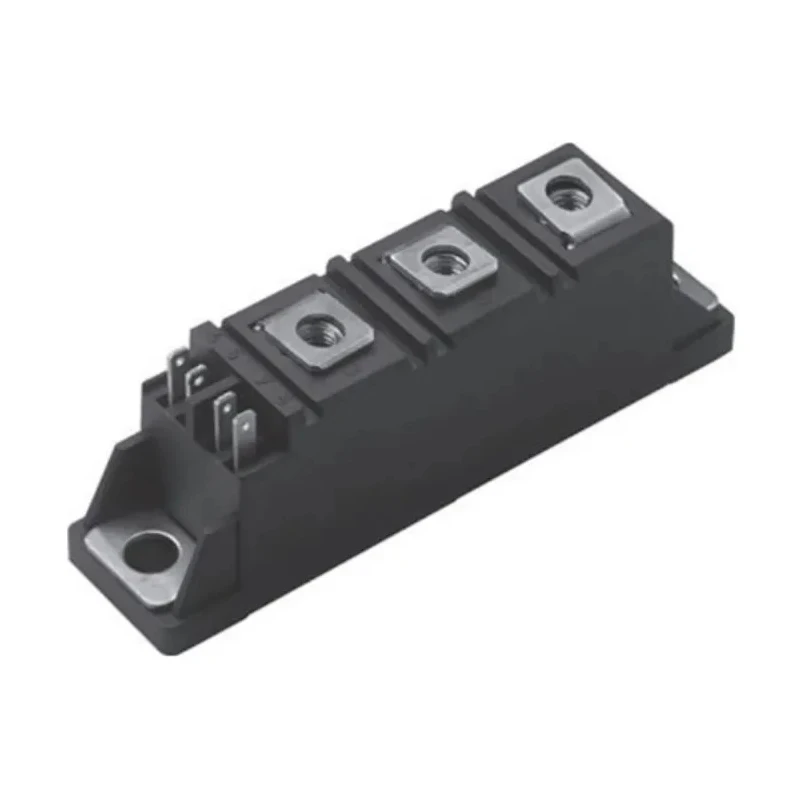

Vishay Thyristor Module 1600 V 1.2 kA 60 A 270 mA 1.7 V TO-240AA 7-Pin VS-VSKT56/16

Vishay VS-VSKT56/16 Thyristor Module is a robust solid-state semiconductor device designed for high power electronic switching and current regulation. This module features a 1600 V repetitive peak reverse voltage and a surge current rating of 1.2 kA, making it suitable for demanding industrial environments.

The device operates with a rated average on-state current of 60 A and includes a maximum gate trigger current of 270 mA, facilitating precise triggering control. It uses a TO-240AA package with a 7-pin configuration and is designed for panel mounting applications.

The compact dimensions of 92 mm length, 30 mm height, and 22.6 mm width make it versatile for various setups. It supports operation up to 125°C ensuring reliability under thermal stress.

Encapsulated with an electrically isolated base plate, the VS-VSKT56/16 offers low thermal resistance, enhancing its performance in power-sensitive applications. Encapsulated thyristor module with electrically isolated base plate for enhanced safety.

Low thermal resistance design suitable for high power applications. Operational temperature up to 125°C for reliable performance. Repetitive peak reverse voltage rating of 1600 V and surge current rating of 1.2 kA. Maximum gate trigger current of 270 mA and holding current of 200 mA ensuring precise control.

Compact dimensions: 92 mm length, 30 mm height, and 22.6 mm width. Ideal for industrial applications such as battery chargers, welders, plating equipment, and regulated power supplies. Solid-state semiconductor device acting as a bistable switch for current regulation.

Package type TO-240AA with 7 pins, suitable for panel mounting. Manufactured in India under strict quality controls, new product condition.

This Thyristor Module is widely used in industrial, laboratory, and manufacturing environments for applications including battery charging systems, welding machines, plating units, regulated power supplies and motor speed control circuits.

Its robust design and high current handling capacity make it a reliable component for switching and controlling power in complex electronic systems. Explore more high-quality semiconductor components in the Electronics & Electricals category at EnvMart for your industrial and commercial projects.
