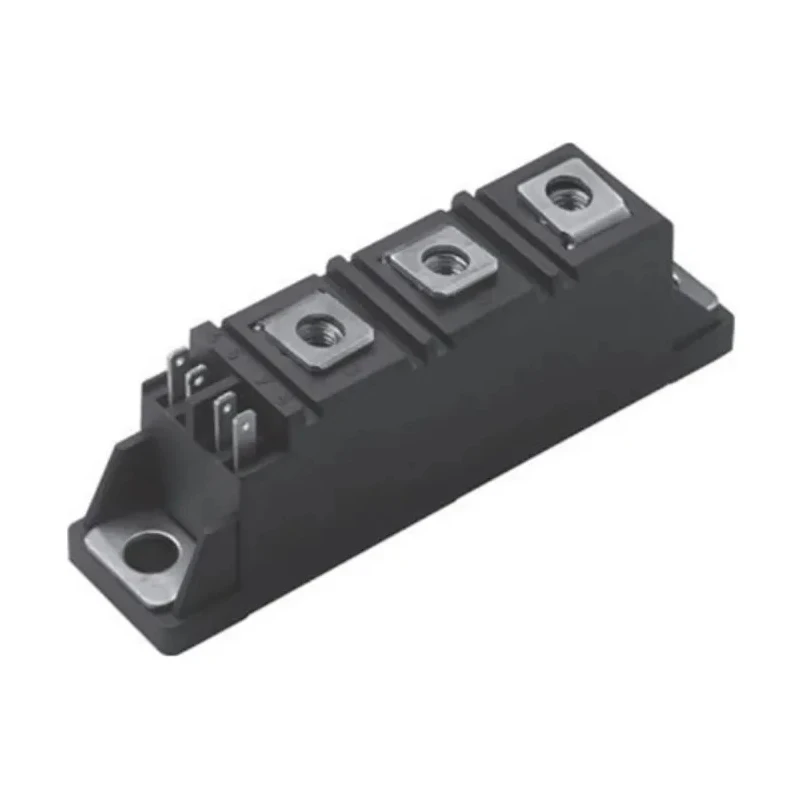

Vishay Thyristor Module 1200 V 1.2 kA, 60 A, 270 mA, 1.7 V TO-240AA 7-Pin VS-VSKT56/12

Vishay VS-VSKT56/12 Thyristor Module is a robust solid-state power device built for industrial and commercial applications requiring reliable switching and power control. This 7-pin module comes in an ADD-A-PAK style TO-240AA package designed for panel mounting, combining electrical isolation and low thermal resistance to enhance performance and safety.

This thyristor module supports a repetitive peak reverse voltage (VDRM) of 1200 V and a surge current rating of 1.2 kA, making it suitable for high-power circuits including battery chargers, welders, plating equipment, regulated power supplies, and motor controls. The rated average on-state current (Irms) of 60 A enables it to handle significant power loads effectively.

The gate trigger characteristics feature a maximum current of 270 mA and a trigger voltage of 4 V, with a maximum holding current of 200 mA. These parameters ensure reliable triggering and stable latching of the thyristor during operation. Its peak on-state voltage is only 1.7 V, which minimizes conduction losses and improves efficiency.

With a maximum operating temperature of 125°C, this module can withstand harsh industrial environments. Mechanical dimensions are compact with length 92 mm, height 30 mm, and width 22.6 mm, allowing integration into standard equipment panels.

Manufactured in India, the Vishay VS-VSKT56/12 offers dependable quality for semiconductor power devices. It finds applications in industrial automation, power electronics, HVAC controls, manufacturing machinery, and electrical switching systems.

The module's 7-pin TO-240AA package facilitates mounting and thermal management. High repetitive peak reverse voltage enables operation in demanding voltage environments. Surge current capability supports transient current handling.

Gate trigger and holding current specifications provide stable switching control. Compact form factor suits space-constrained applications. Designed for industrial and commercial power control use cases.

Choose Vishay Thyristor Modules for efficient and reliable power switching solutions across a range of industrial sectors. Browse more options in the semiconductor and power module category at EnvMart for additional applications.
