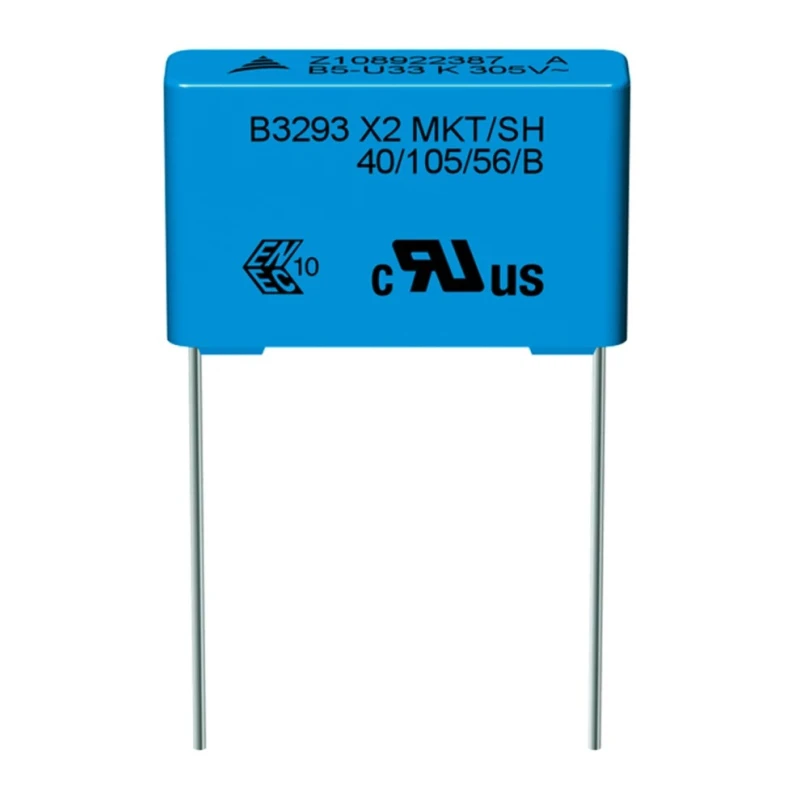

TDK Film Capacitor 470 nF 305V AC 305V DC Through Hole, 22.5mm Lead Pitch B32933B3474K000

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor 470 nF 305V AC 305V DC Through Hole, 22.5mm Lead Pitch B32933B3474K000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	16.5mm
Length	26.5mm
Model	B32933B3474K000
Width	10.5mm
Mount Type	Through Hole
Series	B3293
Maximum Operating Temperature	105°C
Capacitance	470nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	305V ac
Rated DC Voltage	305V dc
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D
Suppression Class	X2

Key Features

Manufactured with metallised polyester film providing stable capacitance value.
Features internal series connection for enhanced safety and durability.
Plastic case is flame-retardant and complies with UL 94 V-0 standard.
Rated for 305V AC and 305V DC operation with X2 safety approval.
Maximum operating temperature is 105°C suitable for demanding industrial environments.
Lead pitch of 22.5mm and lead diameter of 0.8mm for through-hole mounting.
Meets automotive AEC-Q200 Rev D standard ensuring high quality and reliability.
Applications include capacitive power supplies, energy meters, and connection in series with mains.

Product Description

TDK B32933B3474K000 is a high-quality film capacitor designed for through-hole mounting, featuring 470 nF capacitance suitable for power electronics applications. Rated at 305V for both AC and DC voltages, it provides exceptional reliability and safety with an internal series connection and X2 suppression class.

The capacitor uses metallised polyester film with a flame-retardant plastic casing that complies with UL 94 V-0 standards. It operates reliably at temperatures up to 105°C, making it ideal for use in industrial, automotive, and electrical power applications, including connection in series with mains, capacitive power supplies, and energy meters.

With precise mechanical specifications including a 22.5mm lead pitch and 0.8mm lead diameter, the component supports through hole mounting on printed circuit boards. Compact size dimensions of 26.5mm length, 16.5mm height, and 10.5mm width enable efficient PCB layouts.

The capacitor meets AEC-Q200 Rev D automotive standards, ensuring suitability for the automotive industry and other demanding fields requiring robust components. It is RoHS and UL approved, emphasizing compliance with global safety and environmental standards.

Manufactured using metallised polyester film ensuring stable electrical properties. Encased in UL 94 V-0 flame retardant plastic for heightened safety. Capacitance value of 470 nF suitable for filtering and suppression tasks.

X2 safety class rating making it suitable for connecting in series with mains supply. Rated for 305V AC and 305V DC operation across temperature range up to 105°C. Lead pitch of 22.5mm facilitates standard through-hole PCB mounting.

Compliant with AEC-Q200 Rev D automotive quality standards. Widely used in industrial, automotive, and energy metering applications.

This TDK Film Capacitor is a reliable and efficient component choice for designing electronic circuits requiring stable capacitance, high voltage rating, and safety assurance. Explore the Electronics Components category on EnvMart for more capacitors and passive components to complement your projects.
