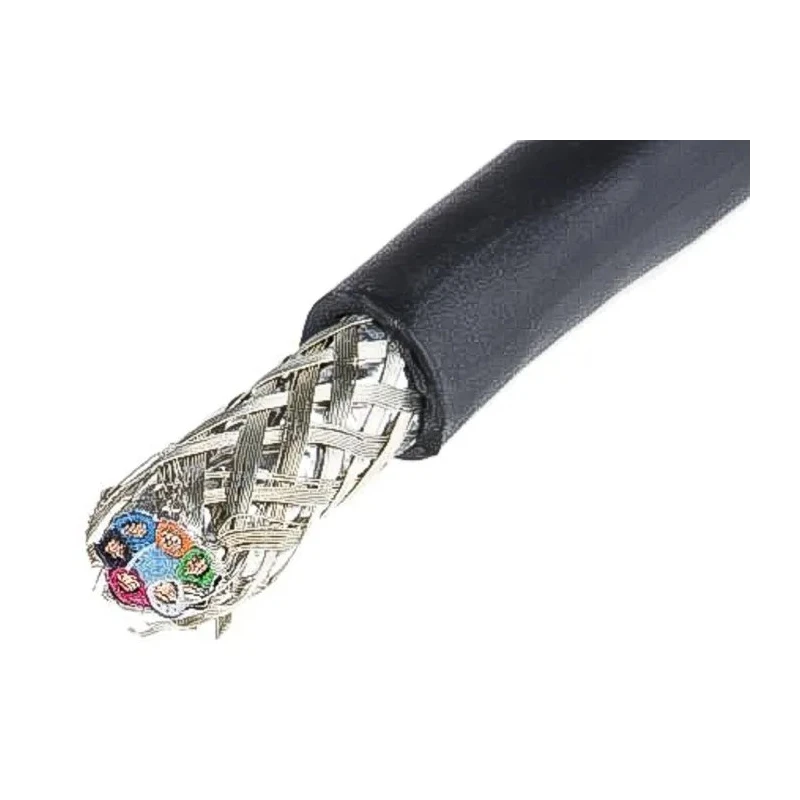

Alpha Wire Xtra-Guard 2 Performance Cable Series Data Cable 2 Pairs 4 Cores 0.35 mm² 30 m Black Sheath 25122 BK005

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Xtra-Guard 2 Performance Cable Series Data Cable 2 Pairs 4 Cores 0.35 mm² 30 m Black Sheath 25122 BK005

Name: Alpha Wire Xtra-Guard 2 Performance Cable Series Data Cable 2 Pairs 4 Cores 0.35 mm² 30 m Black Sheath 25122 BK005
Brand: ALPHA WIRE
SKU: 383229
Price: 504.45 USD
Availability: InStock



Category Data Cable Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	300V
Brand	Alpha Wire
CROSS SECTIONAL AREA	0.35mm²
Model	25122 BK005
Cable Length	30m
Series	Xtra-Guard 2 Performance Cable
Outside diameter	6.6mm
Maximum Operating Temperature	90°C
Number Of Cores	4
Conductor Material	Tin Copper Wire
Minimum Operating Temperature	-30°C
Jacket Material	Thermoplastic Polyurethane
Standards/Approvals	CE, UL, CSA
Jacket Colour	Black
Fire Behaviour	Flammability Test: VW-1
Number of Strands	7
Core Strands	7 x 0.25mm
Size of Strands	0.25mm
Number of Pairs	2
Fire Behaviour Flammability Test	VW-1

Key Features

The cable features a durable black thermoplastic polyurethane sheath enhancing abrasion resistance.
Designed for operating temperatures ranging from -30°C to 90°C for versatile industrial applications.
Includes nylon ripcord for ease of stripping and installation.
The conductor material is tin copper wire with 7 strands of 0.25mm size for excellent conductivity.
Supra-Shield technology provides superior electromagnetic interference protection with triple layer shielding and tinned copper braided shield.
Meets CE, UL, and CSA standards including flame retardant VW-1 certification.
Highly resistant to chemicals, UV light, and mechanical abuse making it suitable for harsh industrial environments.
Perfect for use in CNC machines, automotive plants, petrochemical operations, packaging machines and military ground support systems.

Product Description

Alpha Wire 25122 BK005 Xtra-Guard 2 Performance Cable Series is an industrial-grade Data Cable manufactured to endure demanding environments with superior abrasion resistance and chemical stability. This cable consists of 2 pairs and 4 cores, each core with a 0.35 mm² cross sectional area and total length of 30 meters, encased in a black thermoplastic polyurethane jacket designed for durability and mechanical protection.

The cable operates reliably across a temperature range of -30°C to 90°C and features a nylon ripcord that allows for easier jacket stripping during installation. The conductor comprises tin-plated copper wire configured with 7 strands of 0.25 mm each, ensuring optimal electrical performance. The Supra-Shield design incorporates a triple layered aluminum/polyester/aluminum foil combined with a braided tinned copper shield to provide outstanding EMI protection for sensitive data transmission.

This cable conforms to CE, UL, and CSA standards including VW-1 flame testing, confirming high safety standards for electrical and industrial use. Its robust construction offers excellent resistance to oils, solvents, chemicals, and UV exposure, making it highly suitable for equipment and machinery in industrial automation, CNC machinery, automotive manufacturing, petrochemical plants, packaging systems, geophysical instruments, and military ground support.

The Xtra-Guard 2 cable is preferred in installations where mechanical wear and chemical exposure are routine, ensuring long service life and reliable data integrity. Industrial users benefit from its flexibility, durability, and superior shielding characteristics in challenging operational conditions.

The cable features a durable black thermoplastic polyurethane sheath enhancing abrasion resistance. Temperature range from -30°C to 90°C for varied industrial environments. Incorporates nylon ripcord for easy jacket removal and installation.

Conductors made of tin copper wire with 7 strands of 0.25 mm each for enhanced conductivity. Supra-Shield triple layered foil and braided shield providing excellent electromagnetic interference protection. Certified to CE, UL, and CSA standards with flame retardancy VW-1 rating.

Resistant to chemicals, oils, UV light and mechanical abuse for harsh application uses. Ideal for CNC machines, automotive plants, petrochemical plant operations, packaging machines, and military support equipment. Explore complete ranges of Alpha Wire cables on EnvMart for data communication and industrial automation needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The cable operates reliably within a temperature range of -30°C to 90°C, making it suitable for varied industrial environments.

This model has an outside diameter of 6.6 mm and a total length of 30 meters.

The cable consists of 4 cores and 2 pairs, each core having a cross-sectional area of 0.35 mm².

The conductors are made of tin copper wire, configured with 7 strands of 0.25 mm each for enhanced conductivity.

It features a durable black thermoplastic polyurethane jacket that enhances abrasion resistance and provides mechanical protection.

This model meets CE, UL, and CSA standards, and it has a flame retardancy rating of VW-1.

The cable has a voltage rating of 300V.

Supra-Shield technology provides excellent electromagnetic interference protection through a triple-layered shielding system combined with a tinned copper braided shield.

This cable is ideal for use in CNC machines, automotive plants, petrochemical operations, packaging machines, and military ground support systems.

It includes a nylon ripcord that facilitates easy jacket stripping during installation.

The cable is highly resistant to chemicals, UV light, and mechanical abuse, making it suitable for harsh industrial environments.

The flammability test rating of VW-1 indicates that the cable has passed specific safety standards for flame retardancy, ensuring it is safe for electrical use.
