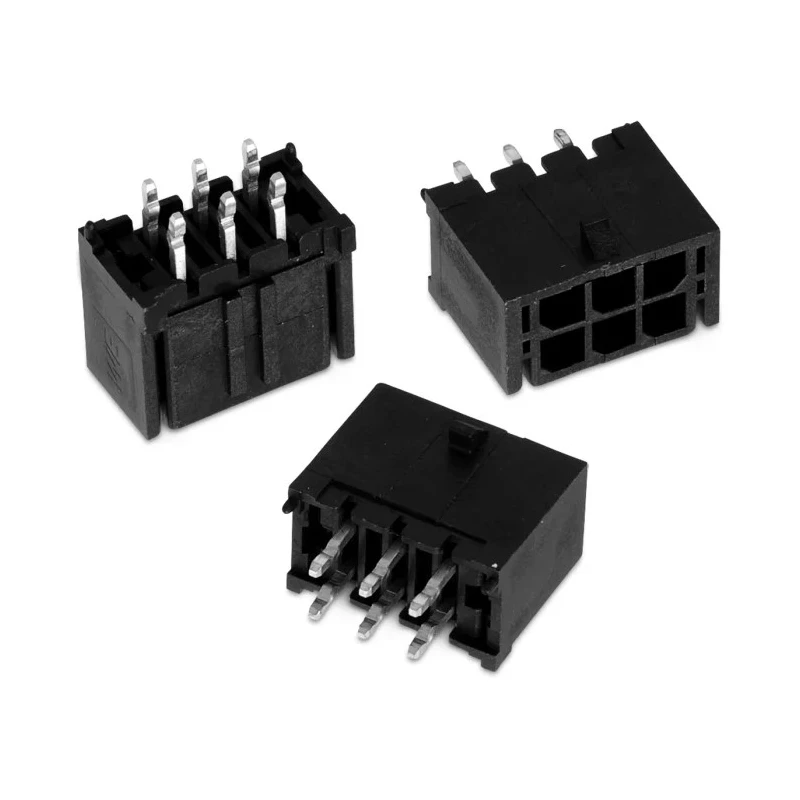

Wurth Elektronik WR-MPC3 Series Straight Through Hole PCB Header, 8 Contacts, 3 mm Pitch, 2 Row, Shrouded MPC3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 5A |
| Model | MPC3 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | WR-MPC3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.2mm |
Key Features
- The dual-row design features 2 rows with 8 male contacts for versatile connectivity.
- Constructed with a black UL94-V0 liquid crystal polymer housing for high durability and flame resistance.
- Contacts are made of copper alloy with tin plating, ensuring excellent conductivity and corrosion resistance.
- Designed for through-hole mounting with kinked tail pins measuring 3.2 mm in length for secure solder termination.
- Shrouded connector system protects contacts and ensures correct mating with female receptacle housings.
- Rated for 5 amperes current and 250 volts operating voltage, suitable for various electronic applications.
- Operating temperature range is -40°C to 105°C, supporting use in demanding environments.
- Complies with no specific certifications but meets mechanical and electrical functional requirements.
Product Description
Wurth Elektronik MPC3 series straight through hole PCB header is engineered for robust wire-to-board connections. This dual row male header features 8 contacts with a 3 mm pitch spacing, ideal for compact electronic devices and power connectors.
The connector housing is made of high-quality liquid crystal polymer rated UL94-V0, providing excellent flame retardancy and mechanical stability. With tin-plated copper alloy contacts, the connector ensures effective electrical conductivity and durability over extended use.
Designed for through-hole mounting, the 3.2 mm kinked tail pins provide secure solder termination, ensuring reliable mechanical and electrical connections on printed circuit boards. The shrouded design guards the contacts against damage and accidental short circuits.
Rated to carry currents up to 5A at 250V, it suits a wide range of industrial, telecommunications, consumer electronics, and embedded system applications where reliable PCB connections are necessary.
The operating temperature range from -40°C to 105°C allows the connector to function stably in harsh environmental conditions, including industrial and outdoor deployments. This product is packaged in multiples of 5 pieces, ready for efficient automated insertion into manufacturing lines, improving production speed and reducing handling time.
The WR-MPC3 is a trusted choice for engineers requiring dependable PCB Header connectors in their designs. The dual-row, 8-contact design with 3 mm pitch size suits various PCB layouts. Flame retardant LCP housing provides durability and safety.
Copper alloy contacts with tin plating deliver reliable conductivity. Through-hole mounting supports standard PCB assembly processes. Wide temperature range ensures stable operation in diverse environments. Shrouded design enhances protection and mating security.
Rated for 5A current and 250V voltage for versatile usage. Packaged in 5-piece sets for efficient production. Discover more PCB connectors and electronic components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 5 amperes.
This PCB header is rated for an operating voltage of 250 volts.
The contacts are made of copper alloy and are tin plated to ensure effective electrical conductivity and corrosion resistance.
It features a 3 mm pitch with a total of 8 male contacts.
The operating temperature range is from -40°C to 105°C, allowing for stable performance in various environments.
This model is designed for through-hole mounting, featuring kinked tail pins for secure solder termination.
It utilizes a wire-to-board connector system, designed for robust wire connections on PCBs.
The housing is made of liquid crystal polymer, rated UL94-V0 for flame resistance and mechanical stability.
The shrouded design of the connector protects the contacts from damage and ensures correct mating with female receptacle housings.
The tail pins measure 3.2 mm in length, providing secure solder connections.
This PCB header is manufactured in India.
The contacts in this model are oriented straight, facilitating easy insertion into PCB layouts.
