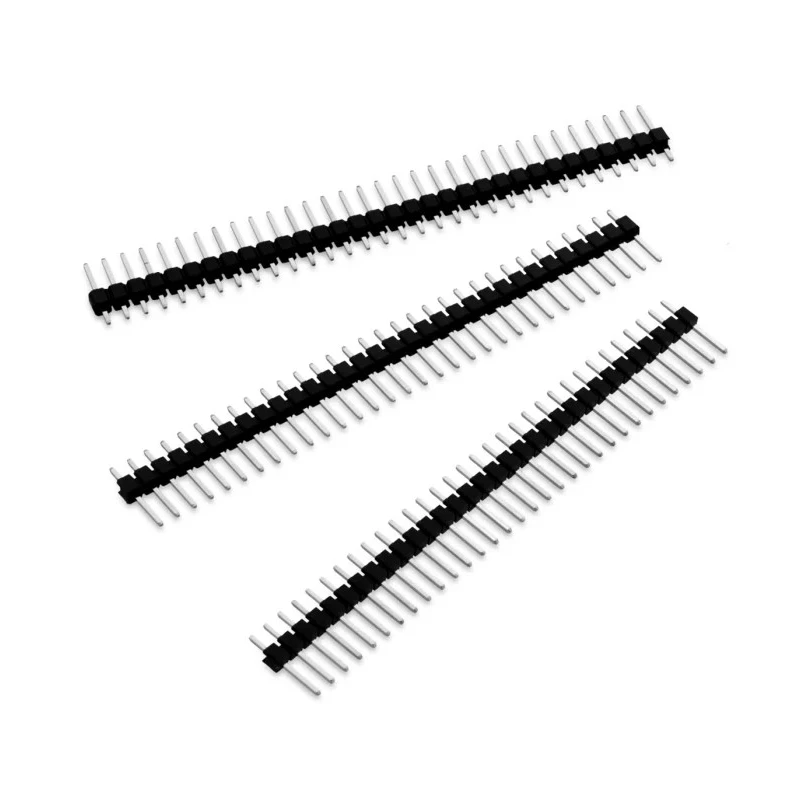

Wurth Elektronik WR-PHD Series Straight Surface Mount Pin Header 8 Contacts 2.54 mm Pitch 1 Row Unshrouded 61300811121
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface Mount |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 6mm |
Key Features
- Features a polyamide housing material ensuring durability and insulation.
- Mount type is surface mount, suitable for PCB installation.
- Contacts are male, made of copper alloy with gold plating for enhanced conductivity.
- Operating temperature ranges from -40°C to 105°C for reliable performance.
- Tail pin length is 3mm and mating pin length is 6mm to fit typical PCB layouts.
- Unshrouded design with a single row and 2.54mm row pitch spacing.
- Complies with common industrial standards though no specific certifications are listed.
Product Description
Wurth Elektronik 61300811121 Straight Surface Mount Pin Header is a high-quality PCB connector designed for board-to-board electrical connections in electronic assemblies. Featuring 8 male contacts arranged in a single row with a 2.54 mm pitch, this pin header is optimized for surface mount applications ensuring reliable and compact connections.
The pin header housing is made from robust polyamide material, providing excellent insulation and durability under industrial operating temperatures from -40°C to 105°C. Contacts are manufactured from copper alloy and plated with gold, enhancing electrical conductivity and resistance to corrosion.
This pin header supports a voltage rating of 250V and a current capacity of up to 3A, making it suitable for various power and signal applications within industrial, electronics manufacturing, and laboratory equipment.
The termination type is solder, with tail pins 3mm in length and mating pins 6mm, ensuring compatibility with standard PCB footprint designs. The unshrouded, straight orientation provides ease of access and straightforward mating with complementary connectors.
Polyamide housing for reliable insulation. Gold-plated copper alloy contacts for enhanced conductivity. Surface mount type for secure PCB installation. Wide operating temperature range from -40°C to 105°C. Rated at 250V and 3A for diverse electronic applications.
Unshrouded, straight design for ease of use in PCB layouts. Complies with industrial norms.
Ideal for applications in electronics manufacturing, industrial control systems, laboratory instrumentation, and other PCB-based assemblies requiring robust board-to-board connectivity.
Explore the full range of Wurth Elektronik PCB Headers and related components in the Electronics & Electricals category on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a voltage rating of 250V, suitable for various power and signal applications.
This model can handle a current capacity of up to 3A, making it versatile for different electronic applications.
The contacts are arranged with a pitch size of 2.54 mm, which is standard for many PCB layouts.
The contacts are made of copper alloy and are gold-plated to enhance conductivity and corrosion resistance.
The tail pin length is 3mm, while the mating pin length is 6mm, ensuring compatibility with standard PCB designs.
It operates reliably within a temperature range of -40°C to 105°C, suitable for various industrial environments.
This unit is designed for surface mount installation, making it ideal for compact PCB applications.
It features 8 male contacts arranged in a single row, optimized for board-to-board connections.
The termination type is solder, which is standard for ensuring secure connections on PCBs.
This model is unshrouded, allowing for straightforward mating with complementary connectors.
The housing is made from polyamide, providing good insulation and durability for electronic applications.
It is ideal for applications in electronics manufacturing, industrial control systems, and laboratory instrumentation requiring robust connectivity.
