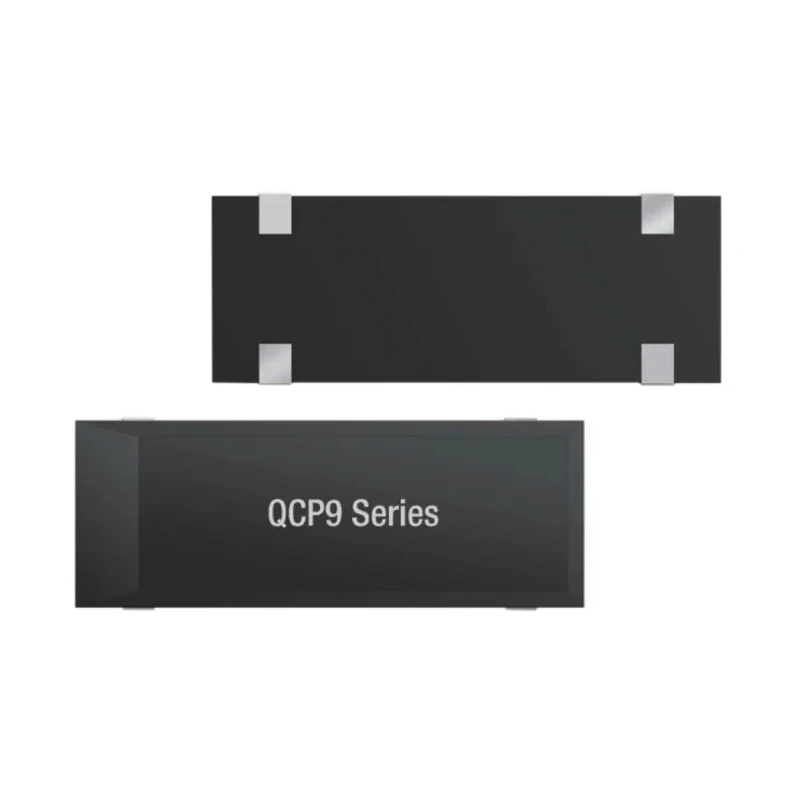

QANTEK 8 MHz Surface Mount 4-Pin Crystal Unit ±30 ppm Frequency Tolerance QCP98.00000F18B35R

Free Delivery in India | Lowest Global Shipping Charges

QANTEK 8 MHz Surface Mount 4-Pin Crystal Unit ±30 ppm Frequency Tolerance QCP98.00000F18B35R

Name: QANTEK 8 MHz Surface Mount 4-Pin Crystal Unit ±30 ppm Frequency Tolerance QCP98.00000F18B35R
Brand: Qantek
SKU: 378335
Price: 1.42 USD
Availability: InStock



Category Crystal Unit Brand Qantek Condition New

Specifications

Country of Origin	China
Brand	QANTEK
Height	3.7mm
Length	12.5mm
Model	QCP98.00000F18B35R
Packaging	Tape & Reel
Width	4.6mm
Mount Type	Surface
Series	QCP9
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	8MHz
Load Capacitance	18pF
Series Resistance	120Ω
Fox Electronics 8MHz Crystal ±50ppm SMD 4-Pin 12.5 x 4.6 x 3.7mmBrand	Fox Electronics

Key Features

This crystal unit features a surface mount package type with 4 pins.
The device operates at a standard frequency of 8 MHz with a frequency tolerance of ±30 ppm.
Its package dimensions measure 12.5 mm length, 4.6 mm width, and 3.7 mm height.
It supports a load capacitance of 18 pF and a series resistance of 120 Ω.
The operating temperature range extends from -40°C to +85°C, suitable for industrial environments.
The unit is RoHS compliant, ensuring environmentally friendly manufacturing.
Packaging is in tape and reel format, facilitating automated assembly processes.
Ideal for use in commercial and industrial electronic equipment requiring precise timing and frequency control.

Product Description

QANTEK QCP98.00000F18B35R is an 8 MHz crystal unit designed for surface mount applications requiring reliable frequency stability and tolerance. This component operates at a standard frequency of 8 MHz, with a frequency tolerance of ±30 ppm and stability of ±50 ppm, making it suitable for demanding industrial and commercial electronic devices.

The crystal unit is housed in a compact surface mount plastic package measuring 12.5 mm in length, 4.6 mm in width, and 3.7 mm in height. It features a 4-pin configuration and supports a load capacitance of 18 pF and a series resistance of 120 Ω, ensuring consistent oscillation characteristics and low phase noise. The unit withstands operating temperatures between -40°C and +85°C, providing robust performance in harsh environments. Furthermore, the product complies with RoHS standards, ensuring environmental safety.

Packaged in tape and reel, the device is ideal for high-volume, automated PCB assembly processes. Typical applications include frequency control in communication devices, industrial controllers, instrumentation, and embedded systems requiring precise timing references.

This surface mount crystal oscillator is suitable for commercial and industrial applications. Offers excellent environmental and heat resistance with reflow capability. The extended temperature range supports reliable performance from -40°C to +85°C.

RoHS compliant design promotes environmental responsibility. The 4-pin plastic SMT package facilitates compact board layouts and automated assembly. Frequency tolerance of ±30 ppm ensures precise timing control. Tape and reel packaging is optimized for production efficiency.

Constructed for use in communication, industrial, and instrumentation applications requiring frequency stability.

The QANTEK QCP98.00000F18B35R crystal unit combines precision, durability, and manufacturing convenience, making it a versatile choice in electronics requiring stable clock sources.
