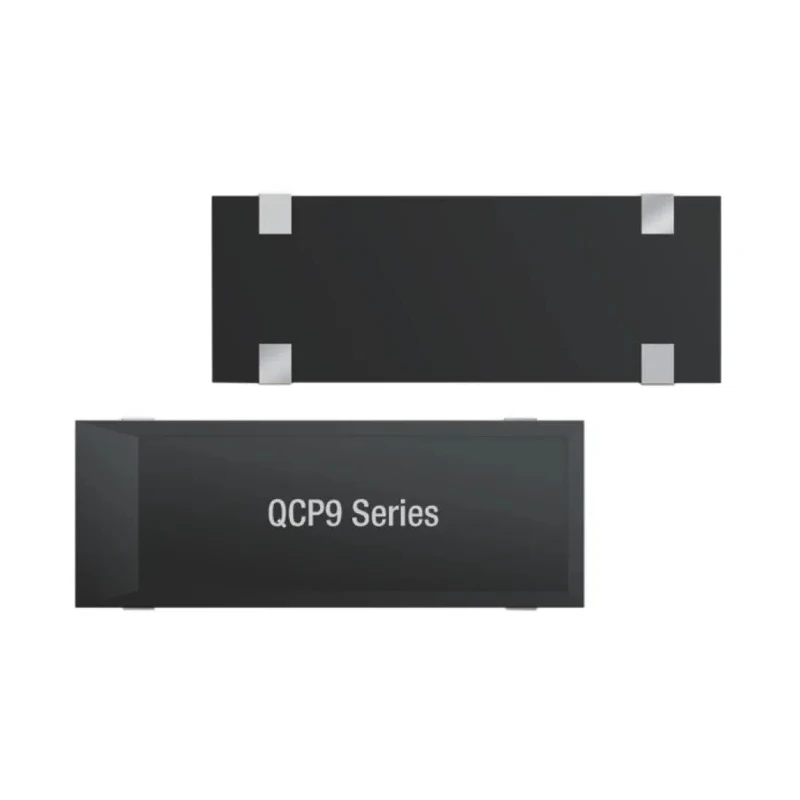

QANTEK 8 MHz Crystal Unit ±30 ppm Surface Mount 4-Pin 3.7 mm x 12.5 mm x 4.6 mm QCP98.00000F18B35R

Free Delivery in India | Lowest Global Shipping Charges

QANTEK 8 MHz Crystal Unit ±30 ppm Surface Mount 4-Pin 3.7 mm x 12.5 mm x 4.6 mm QCP98.00000F18B35R

Name: QANTEK 8 MHz Crystal Unit ±30 ppm Surface Mount 4-Pin 3.7 mm x 12.5 mm x 4.6 mm QCP98.00000F18B35R
Brand: Qantek
SKU: 378334
Price: 1.42 USD
Availability: InStock



Category Crystal Unit Brand Qantek Condition New

Specifications

Country of Origin	China
Brand	QANTEK
Height	3.7mm
Length	12.5mm
Model	QCP98.00000F18B35R
Packaging	Tape & Reel
Width	4.6mm
Mount Type	Surface
Series	QCP9
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	8MHz
Load Capacitance	18pF
Series Resistance	120Ω
SMD CRYSTAL 8.00 MHZBrand	AEL
Crystal,SMT,8.0000MHz,50ppm,20Brand	Fox Electronics
Fox Electronics 8MHz Crystal ±50ppm SMD 4-Pin 12.5 x 4.6 x 3.7mmBrand	Fox Electronics

Key Features

Standard frequency of 8 MHz ensuring precision performance.
Surface mount with a 4-pin plastic SMT package for compact PCB integration.
Operating temperature range from -40°C to 85°C suitable for harsh environments.
Tape and reel packaging for automated assembly processes.
Package dimensions of 12.5 mm length, 4.6 mm width, and 3.7 mm height.
Series resistance of 120 Ω optimizing signal quality.
Compliant with RoHS environmental standards.
Manufactured in China following the QCP9 series specifications.

Product Description

QANTEK QCP98.00000F18B35R 8 MHz Crystal Unit is designed as a high-precision surface mount crystal oscillator suitable for industrial and commercial electronics applications that require compact size and stable frequency control. The surface mount 4-pin plastic SMT package with dimensions 12.5 mm x 4.6 mm x 3.7 mm enables easy PCB integration while maintaining excellent environmental and heat resistance.

This crystal unit features a frequency tolerance of ±30 ppm and stability of ±50 ppm, making it ideal for applications demanding accurate timing and signal processing. It operates reliably across a wide temperature range from -40°C to 85°C, supporting demanding industrial environments.

The device includes an 18 pF load capacitance and a series resistance of 120 Ω, ensuring proper crystal oscillation and signal integrity. It is supplied in tape and reel packaging to facilitate automated manufacturing and assembly.

The product complies with RoHS directives, emphasizing environmentally responsible manufacturing practices. This QCP9 series crystal oscillator is manufactured in China, aligning with industry standards.

Standard frequency of 8 MHz ensuring precision performance. Compact surface mount 4-pin plastic SMT package suitable for PCB mounting. Frequency tolerance ±30 ppm and stability ±50 ppm for reliable timing. Wide operating temperature range from -40°C to 85°C for industrial use.

Tape and reel packaging supports efficient automated assembly. Package dimensions of 12.5 mm length, 4.6 mm width, and 3.7 mm height. Series resistance of 120 Ω ensures optimal signal quality. Compliant with RoHS environmental standards.

Manufactured in China under QCP9 series specifications.

This QANTEK crystal unit is widely used in industrial, commercial electronics, manufacturing, automation, and communication equipment for accurate timing and frequency control. EnvMart offers a broad range of Crystal Units for diverse industrial applications.
