DiodesZetex 3 A NPN Transistor, 100 V, 4-Pin SOT-223 Surface Mount, ZXTN25100DGTA

DiodesZetex ZXTN25100DGTA is a general purpose NPN bipolar transistor designed for high reliability in electronic and power applications. It features a maximum DC collector current of 3 A and a collector-emitter voltage rating of 100 V, making it suitable for switching and amplification tasks in discrete semiconductor circuits.

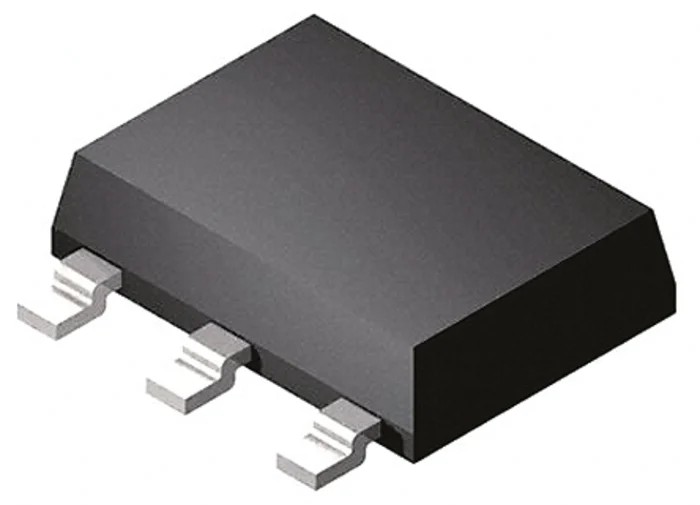

Housed in a 4-pin SOT-223 surface mount package, this transistor offers easy integration onto modern printed circuit boards while maintaining a small footprint with dimensions approximately 6.55 mm length, 7.1 mm width, and 1.65 mm height. The device supports a maximum operating temperature up to 150°C and a minimum temperature of -55°C, allowing its use in harsh industrial, automotive, and general electronics environments.

With a minimum DC current gain (hFE) of 40 and a transition frequency of 175 MHz, the ZXTN25100DGTA transistor provides efficient amplification and fast switching suitable for signal processing and power management. Its maximum power dissipation of 1.2 W ensures stability under moderate loads.

The product conforms to the automotive standard AEC-Q101, affirming its quality and reliability for automotive and stringent industrial applications. The transistor configuration is single NPN type with a maximum collector-base voltage of 180 V and a maximum emitter-base voltage of 7 V, offering robust electrical tolerance parameters.

Maximum collector current: 3A. Collector-emitter voltage rating: 100V. SOT-223 package with 4 pins for surface mounting. High frequency operation at 175 MHz. Temperature range from -55°C to 150°C. Automotive AEC-Q101 compliant.

This transistor is well suited for industrial, automotive, and general purpose electronic circuit applications where robust switching and amplification are required. Explore a wide range of reliable Bipolar Transistors and semiconductor components on EnvMart for your engineering and manufacturing needs.
