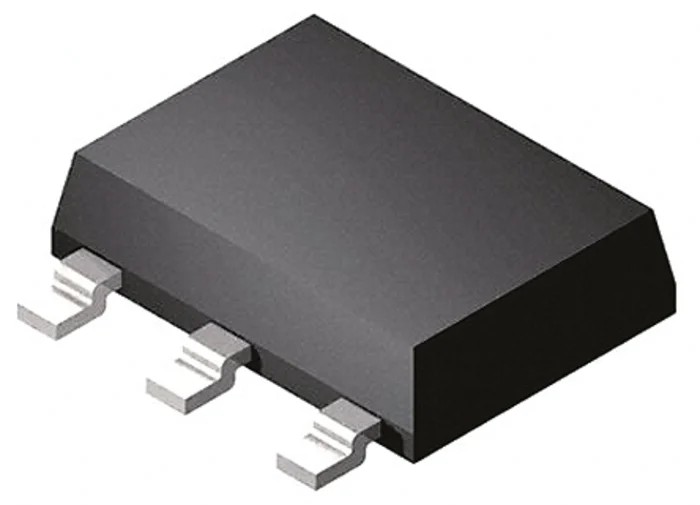

DiodesZetex General Purpose NPN Bipolar Transistor 3 A 100 V 4-Pin SOT-223 Surface Mount ZXTN25100DGTA

DiodesZetex ZXTN25100DGTA is a general purpose NPN bipolar transistor designed for use in electronic circuits requiring moderate power and high switching speeds. It delivers a maximum collector current of 3 A and withstands a collector emitter voltage of up to 100 V, making it suitable for applications in power regulation, signal amplification, and switching.

This transistor is housed in a 4-pin SOT-223 surface mount package, enabling easy mounting on printed circuit boards (PCBs) with efficient thermal dissipation. Its maximum power dissipation is rated at 1.2 W, suitable for moderately demanding thermal environments.

The device exhibits a minimum DC current gain (hFE) of 40 and a maximum transition frequency (ft) of 175 MHz, allowing for rapid signal switching in both analog and digital circuits. It is designed to operate within a wide temperature range from -55°C to 150°C, guaranteeing robust performance under harsh environmental conditions.

Compliant with the automotive standard AEC-Q101, the ZXTN25100DGTA transistor meets stringent reliability standards for automotive electronics, making it ideal for use in automotive and industrial applications.

Key dimensions include a length of 6.55 mm, width of 7.1 mm, and height of 1.65 mm, allowing for compact circuit designs. The transistor layout supports a single NPN configuration with a maximum collector base voltage of 180 V and emitter base voltage of 7 V, making it a versatile choice for designers.

Provides a maximum DC collector current of 3 Amperes. Supports a maximum collector emitter voltage rating of 100 Volts. Designed with a single NPN transistor configuration for general purpose applications. Surface mount package type SOT-223 with four pins ensures efficient PCB integration.

Maximum power dissipation rating of 1.2 Watts facilitates reliable thermal management. High transition frequency of 175 MHz supports high-speed switching operations. Operates reliably in temperatures ranging from -55°C to 150°C.

Automotive compliant with AEC-Q101 standard ensuring suitability for automotive electronics. Compact dimensions of 6.55 mm length, 7.1 mm width, and 1.65 mm height.

This transistor is ideal for industrial, automotive, and electronic design uses, including switching circuits, amplifiers, and other semiconductor applications requiring reliable and efficient performance. For a comprehensive selection of semiconductor devices and accessories, explore related products at EnvMart.
