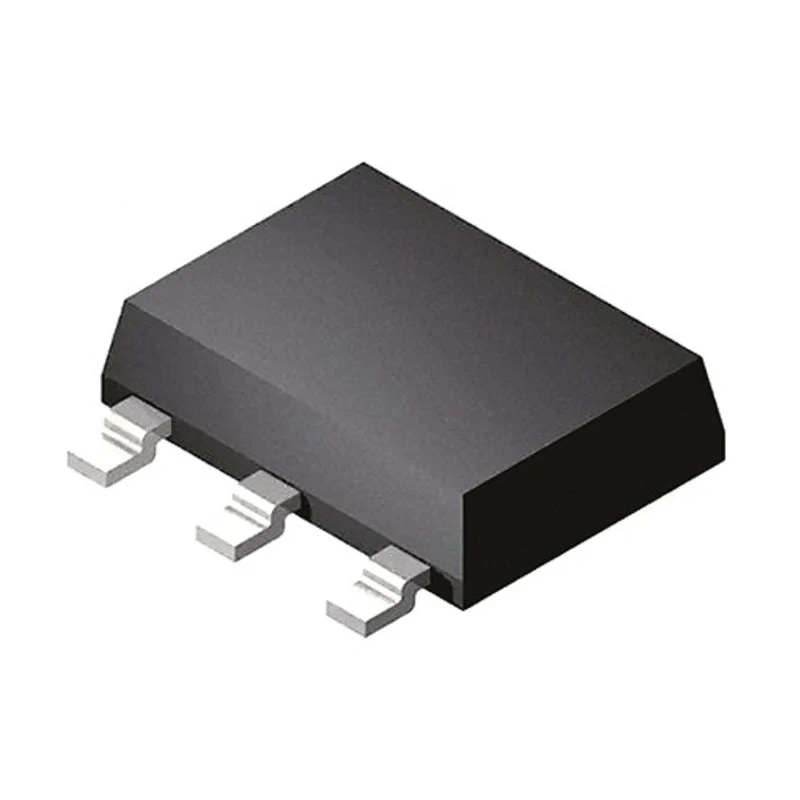

DiodesZetex General Purpose PNP Transistor Single Configuration Surface Mount 3W Power Dissipation 6A 12V 4-Pin FZT968TA

DiodesZetex FZT968TA is a high-performance general purpose bipolar PNP transistor designed for surface mount applications. It is housed in a compact 4-pin SOT-223 package, providing a robust solution for electronic circuits requiring up to 6 amperes collector current and 3 watts power dissipation.

This transistor features a maximum collector emitter voltage of 12 volts, making it suitable for low voltage switching and amplifier circuits. It has a minimum DC current gain (hFE) of 150, ensuring good current amplification characteristics. The device operates with a high transition frequency of 80 MHz, which supports its use in medium frequency switching and amplification tasks.

The FZT968TA supports a pin count of 4, allowing for stable and reliable connections on printed circuit boards employing surface mount technology. Its physical dimensions of 6.55 mm length, 7.1 mm width, and 1.65 mm height make it compatible with compact electronic modules.

Designed to operate under a wide temperature range from -55°C to 150°C, this transistor ensures dependable performance in demanding industrial, automotive, and commercial applications. Moreover, its conformity to the automotive AEC-Q101 standard certifies its reliability for automotive system usage.

Typical applications include general switching, amplification, and automotive electronics where robust performance under thermal stress and electrical load is required. The device does not carry specific certifications but meets stringent automotive qualification requirements.

Choosing the DiodesZetex FZT968TA transistor provides engineers and technicians a dependable component for a variety of semiconductor needs including industrial controls, HVAC systems, automotive electronics, and embedded systems design.

This transistor features a maximum collector emitter voltage of 12 volts. It has a minimum DC current gain of 150 for efficient current amplification. The device supports high transition frequency up to 80 MHz, suitable for medium frequency applications.

With a pin count of 4, the SOT-223 package enables easy PCB mounting and compact design. The transistor operates in a temperature range from -55°C to 150°C, ensuring reliability in harsh environments. It complies with the automotive standard AEC-Q101 for automotive-grade applications.

The dimensions include a length of 6.55 mm, width of 7.1 mm, and height of 1.65 mm. Explore other quality semiconductor components in the Electronics & Electricals category on EnvMart for your diverse industrial and electronic project requirements.
