| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 2.2mm |
| Model | BAS70W-06-7-F |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | BAS70W |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 70mA |
| Peak Reverse Repetitive Voltage Vrrm | 70V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 100nA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100mA |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 5ns |

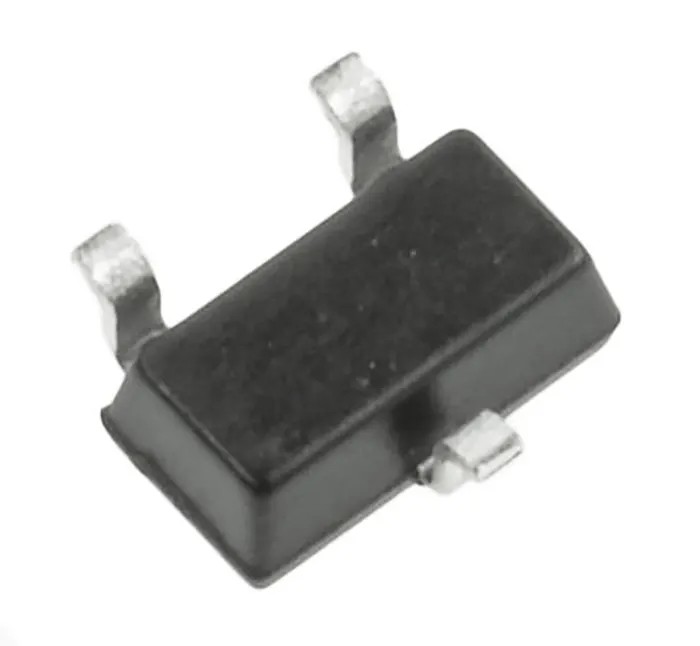

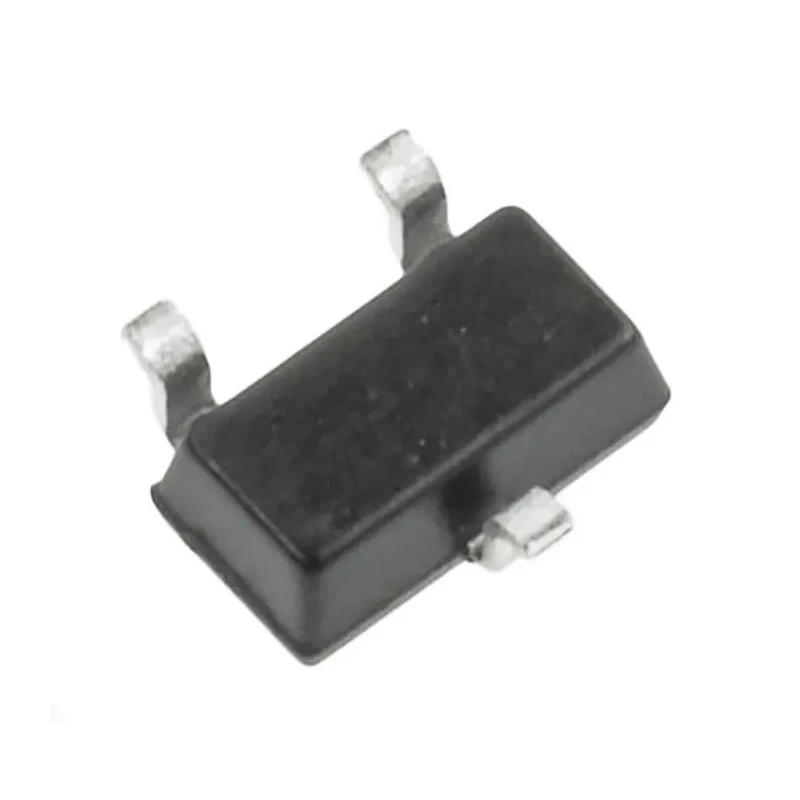

DiodesZetex BAS70W-06-7-F is a 70 V, 70 mA single switching diode housed in a compact 3-pin SC-70 surface mount package. Its design leverages Schottky barrier technology, which provides low forward voltage and thermal stability, making it highly reliable for high-speed switching applications in electronics manufacturing and assembly.
The diode supports a maximum continuous forward current of 70 mA and a peak reverse repetitive voltage of 70 V, suitable for various semiconductor discrete and power connector applications. Its fast 5 ns peak reverse recovery time enables efficient switching performance in circuits requiring rapid diode response.
The operating temperature range from -55°C to 125°C facilitates use in demanding environments, maintaining performance consistency. Its small size with dimensions of 2.2 mm × 1.35 mm × 1 mm enables high-density PCB layouts, ideal for modern electronic devices.
While it does not possess specific automotive certifications, the diode conforms to relevant standards for discrete semiconductor switching components. This makes it appropriate for industrial, power electronics, and telecommunications sectors where efficient and low-energy diode switching is crucial.
Key package contents include the single BAS70W-06-7-F diode in SC-70 format ready for surface mount installation. It is widely used in Schottky Diode and rectifier assemblies in power management and signal switching subassemblies.
This diode provides low forward voltage and fast switching time ideal for industrial and electronic manufacturing use. The compact SC-70 package offers space savings and compatibility with automated PCB assembly techniques.
Its high operating temperature range suits applications exposed to thermal variation and electrical stress. Single diode configuration supports simple insertion into existing circuit designs requiring switching diode functionality.
Designed for efficiency and reliability in switching power and signal control. Browse the Electronics & Electricals category for more advanced semiconductor and switching diode products at EnvMart.
