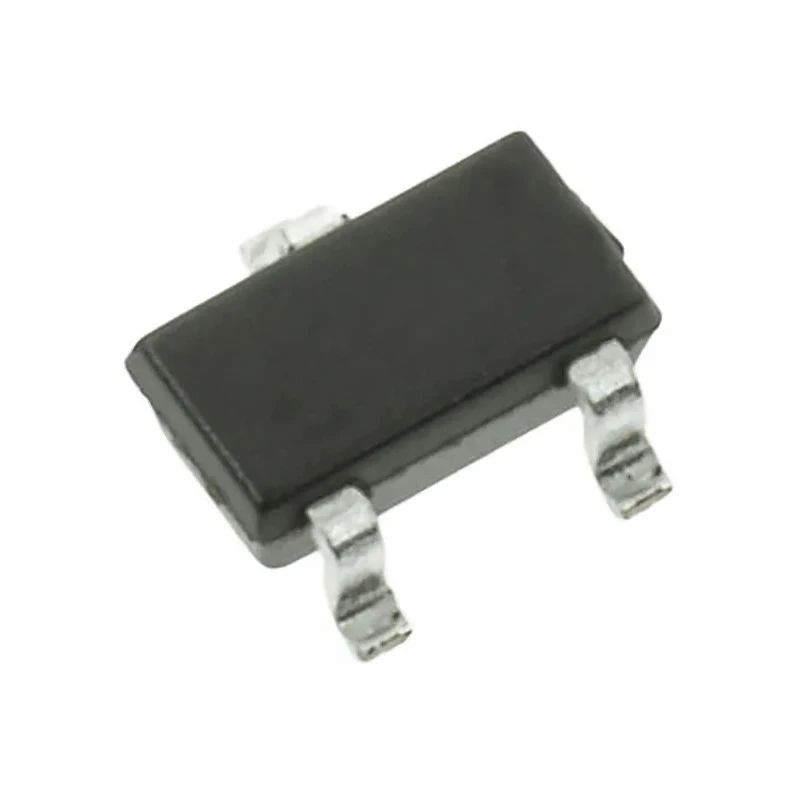

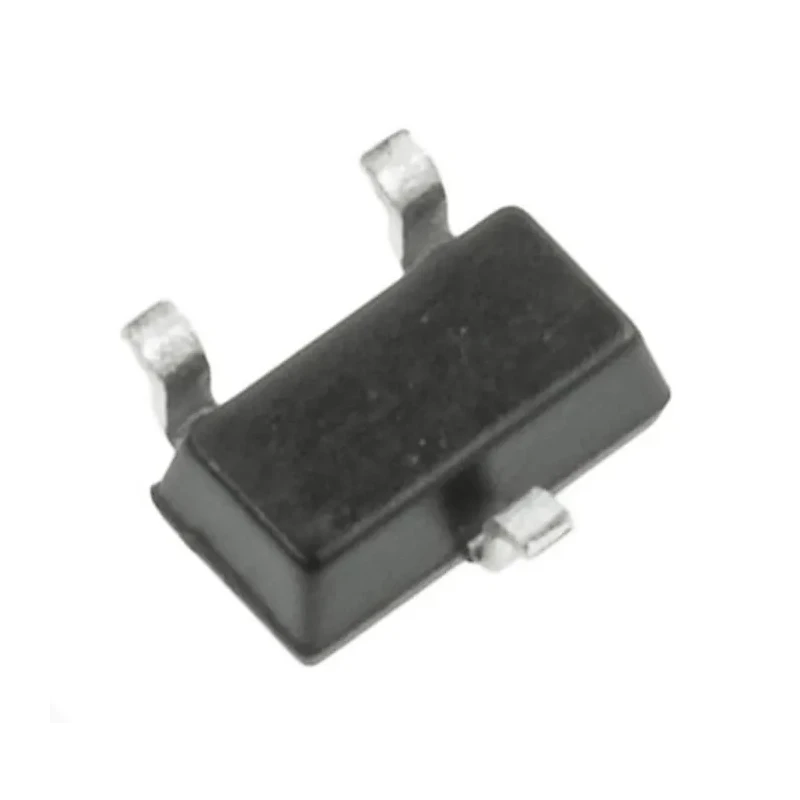

DiodesZetex Surface Hall Effect Sensor, 2.5V to 5V Supply, SC-59 Package, 3-Pin AH183-WG-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Response time | 100μs |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | AH183-WG-7 |
| Technology | CMOS Hall Effect |
| Sensor Type | Hall Effect Sensors |
| Width | 1.7mm |
| Mount Type | Surface |
| Series | AH18 |
| Maximum Operating Temperature | 85°C |
| Package Type | SC-59 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 2.5V |
| Magnetic Type | Unipolar |
Key Features
- CMOS Hall Effect technology enables efficient and stable sensing.
- Surface mount design in compact SC-59 package for space-saving PCB integration.
- Unipolar magnetic sensing type suitable for switching applications.
- Operates within a temperature range of -40°C to 85°C for industrial use.
- Fast response time of 100 microseconds ensures prompt switching.
- Three-pin configuration simplifies electrical connection and installation.
- RoHS compliant and environmentally friendly.
- Compatible with automotive and general electronic sensor applications.
Product Description
DiodesZetex AH183-WG-7 is a surface mount Hall Effect sensor IC designed for precise non-contact magnetic field sensing. Featuring CMOS Hall Effect technology, it offers stable switching output activated by the proximity of a magnetic field. The sensor operates within a supply voltage range of 2.5V to 5V, making it adaptable for various low-voltage electronic circuits.
The device is housed in a compact SC-59 package measuring 3.1mm in length, 1.7mm in width, and 1.3mm in height. Its surface mount design facilitates easy integration on PCBs for industrial, automotive, and consumer electronic applications.
The sensor type is unipolar, meaning it responds to a magnetic field of a single polarity, suitable for position and speed sensing, as well as proximity detection tasks. Its fast response time of 100 microseconds enables timely switching operations in dynamic environments.
Operating temperature range extends from -40°C to 85°C, providing durability under harsh conditions common in industrial and automotive systems. The 3-pin configuration simplifies electrical connectivity, making the sensor user-friendly for electronic design engineers.
CMOS Hall Effect technology for stable magnetic sensing. Surface mount SC-59 package for compact and reliable installation. Unipolar sensing type optimally used in switching devices. Wide operating temperature range ensures robustness.
Fast 100μs response time for efficient switching. Compact dimensions allow space-saving PCB layout. RoHS compliant to meet environmental standards. Versatile application in automotive, industrial, and consumer electronics.
This hall effect sensor IC is suitable for industrial automation, motion detection, proximity sensing, and electronic switching in HVAC systems, consumer devices, and automotive controls. Its compact size and reliable operation make it an ideal choice for engineers designing efficient magnetic detection systems.
Explore additional Hall Effect Sensors in the Electronics & Electricals category on EnvMart for a wide range of industrial sensor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AH183-WG-7 operates within a supply voltage range of 2.5V to 5V.
It has a fast response time of 100 microseconds, enabling prompt switching operations.
The SC-59 package measures 3.1mm in length, 1.7mm in width, and 1.3mm in height.
The sensor operates within a temperature range of -40°C to 85°C, suitable for industrial applications.
It features unipolar magnetic sensing, responding to a magnetic field of a single polarity.
The AH183-WG-7 has a 3-pin configuration, simplifying electrical connection and installation.
Yes, it is RoHS compliant, meeting environmental standards.
This model is suitable for industrial automation, motion detection, proximity sensing, and electronic switching in various systems.
It utilizes CMOS Hall Effect technology for stable magnetic sensing.
The maximum operating temperature is 85°C, allowing it to function effectively in harsh conditions.
The minimum supply voltage for the AH183-WG-7 is 2.5V.
This model supports surface mounting, facilitating easy integration on PCBs.
