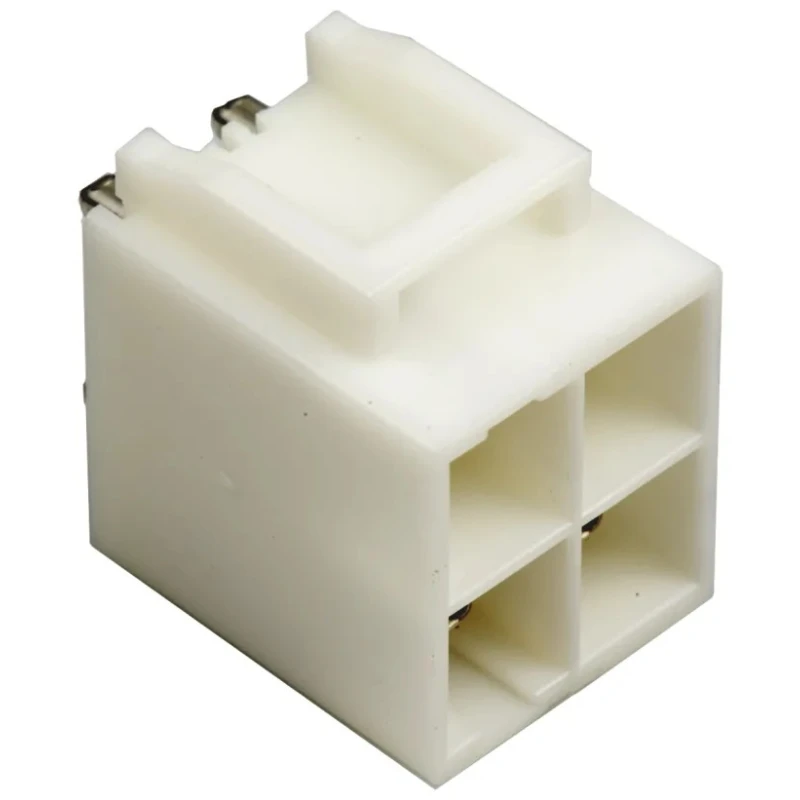

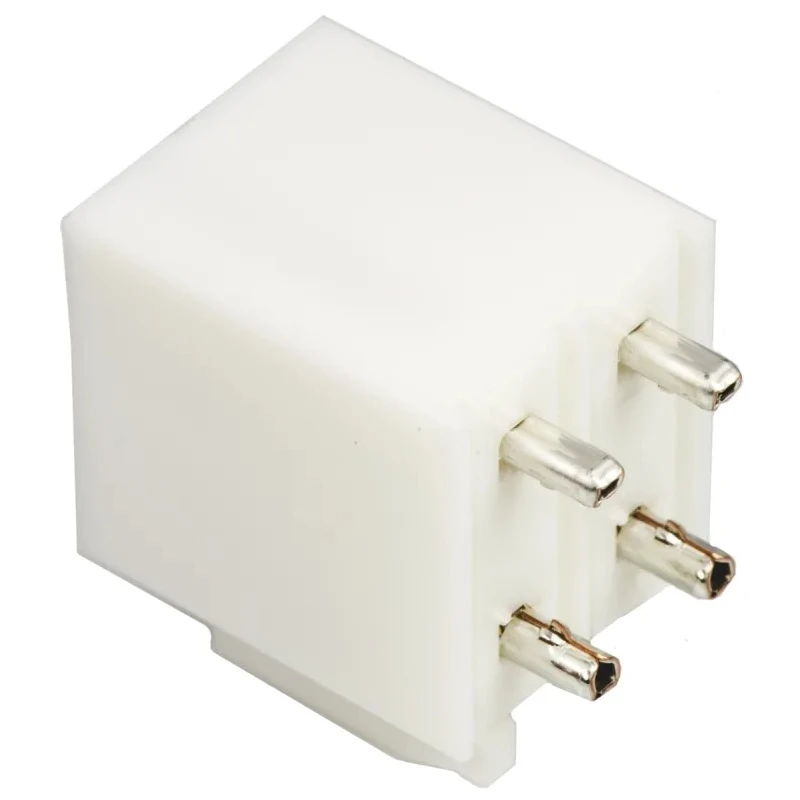

JST VL Series Straight Through Hole PCB Header, 4 Contact(s), 6.2 mm Pitch, 2 Row, Shrouded B04P-VL (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST VL Series Straight Through Hole PCB Header, 4 Contact(s), 6.2 mm Pitch, 2 Row, Shrouded B04P-VL (LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	600V
Brand	JST
Orientation	Straight
Current	20A
Model	B04P-VL (LF)(SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	VL
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	2
Pitch	6.2mm
Contact Plating	Tin
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3.6mm
Initial contact resistance	7mΩ max

Key Features

Supports a current rating of 20A with a voltage rating of 600V AC/DC.
Features a straight orientation with through-hole mount type for robust PCB integration.
Constructed with polyamide housing material certified to UL94V-0 for flame retardancy.
Contact material is copper alloy with tin plating ensuring reliable conductivity and corrosion resistance.
Designed to operate between -25°C and 85°C temperature range.
Includes inter-housing locks to prevent accidental disconnection during operation.
Mating pin length is 3.6 mm with male contact gender suitable for wire-to-board connections.
Shrouded design enhances electrical insulation and safety compliance.

Product Description

JST B04P-VL (LF)(SN) PCB Header is a high current, high voltage, fully shrouded straight through-hole PCB header featuring 4 contacts arranged in 2 rows with 6.2 mm pitch. This connector is engineered with a polyamide housing material rated UL94V-0, making it highly resistant to combustion and suitable for demanding industrial applications.

The header supports a current rating of 20A and voltage rating of 600V AC/DC, making it ideal for power supply and high-current PCB applications. The copper alloy male contacts plated with tin deliver reliable electrical performance with low contact resistance (maximum 7 milliohms).

Designed for wire-to-board mounting, this connector’s through-hole mount type assures a robust mechanical and electrical connection. It features inter-housing locks that prevent accidental disconnection during industrial use, boosting system reliability in electronics manufacturing, power electronics, industrial controls, and HVAC systems.

Operating temperature ranges from -25°C to 85°C, making it adaptable to diverse environments. The 3.6 mm mating pin length ensures secure interfacing with mating VL series plug housings, facilitating seamless system integration.

Supports 20A current and 600V AC/DC voltage ratings. Polyamide (PA 66) UL94V-0 flame-retardant housing. Shrouded design for improved electrical safety and mechanical stability. Through-hole mount for enhanced PCB durability.

Copper alloy contact with tin plating ensures corrosion resistance. Interlock mechanism prevents accidental disconnection. Wide operating temperature range from -25°C to 85°C. Male contact gender suited for wire-to-board applications.

This JST VL series PCB header is manufactured in Japan and is a trusted choice for electrical connectors in industrial, laboratory, manufacturing, and commercial applications requiring reliable high current connectors. It supports seamless integration with compatible JST VL series plug housings offering modular and secure wire-to-board connections.

Explore JST VL Series and related high performance PCB Headers in the Electronics & Electricals category at EnvMart for your next project or industrial solution.
