| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Length | 3.9mm |
| Model | TZX24C-TR |
| Mount Type | Through Hole |
| Series | TZX |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-27 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 2mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 24V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 70Ω |

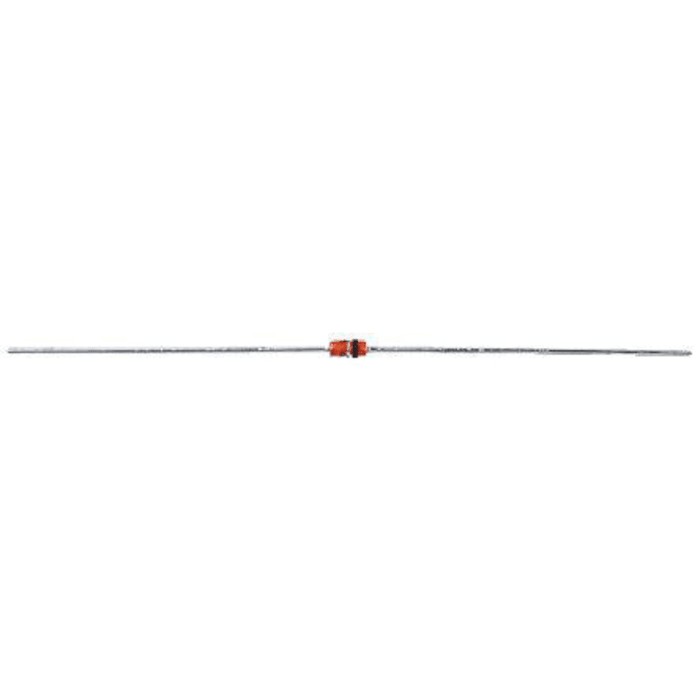

Vishay TZX24C-TR is a single Zener diode designed as a voltage regulator with a nominal Zener voltage of 24 V and a power dissipation rating of 500 mW. Featuring a through hole mount in a compact 2-pin SOD-27 package, it supports applications requiring precise voltage regulation with high stability and low noise levels.
The device is characterized by its sharp reverse characteristic and very low reverse leakage current of 1 μA, enabling stable voltage regulation in sensitive electronic circuits. It operates efficiently within a temperature range from -65°C up to 175°C, making it suitable for industrial, automotive, and harsh environment use.
The diode is AEC-Q101 qualified, indicating automotive industry reliability standards are met. This compliance ensures the diode can be utilized in automotive power management, industrial control systems, and embedded electronics requiring stringent quality assurances.
Typical applications include voltage regulation in power supplies, signal conditioning, and protective circuits in electronic and electrical equipment. Its compact length of 3.9 mm allows easy integration onto PCBs with limited space.
With RoHS compliance, the TZX24C-TR diode supports eco-friendly manufacturing norms. Nominal Zener voltage of 24 volts with ±2% tolerance. Maximum power dissipation of 500 mW ensuring reliable performance. Low reverse leakage current for stability in voltage regulation applications.
Through hole mount suitable for robust mechanical and electrical connections. Automotive AEC-Q101 qualification for high reliability systems. Operating temperature range from -65°C to 175°C for harsh environments. Compact 3.9 mm length for space efficient design.
RoHS compliant for environmentally safe production. Explore more automotive qualified and high performance Zener Diodes in our Electronics & Electricals category at EnvMart for industrial and specialized electronic applications.
