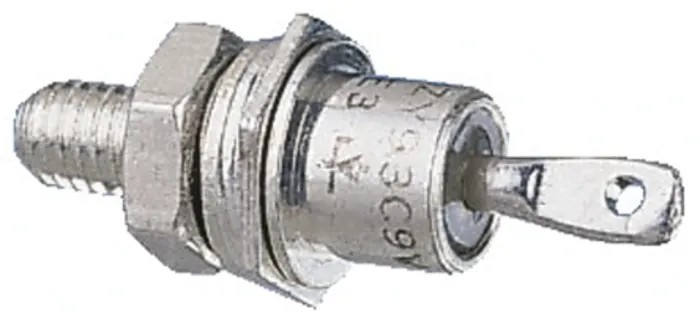

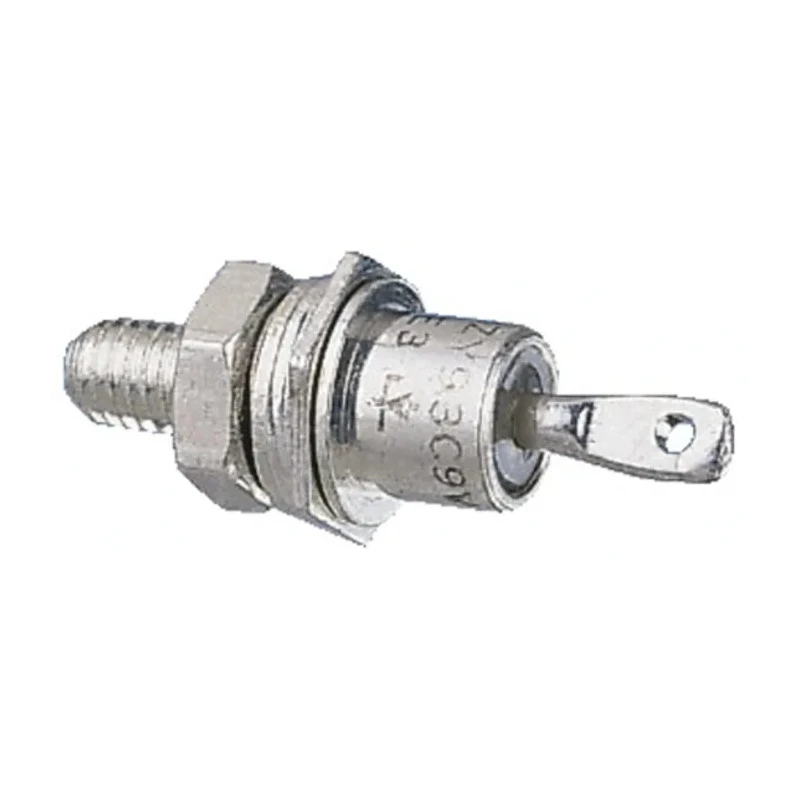

Vishay 800 V 80 A Recovery Diode Stud Mount Package DO-2013AB VS-80PFR80

Vishay VS-80PFR80 recovery diode is a high-performance semiconductor device designed for power rectification and switching applications. Featuring a robust DO-2013AB stud mount package, it is well-suited for industrial, laboratory, and commercial power electronics where reliable current handling and voltage blocking are critical.

Rated for a maximum continuous forward current of 80 amperes and a peak reverse repetitive voltage of 800 volts, this diode ensures efficient operation in demanding environments. The maximum forward voltage of 1.4 V helps reduce power dissipation and improves energy efficiency.

This diode operates effectively within a wide temperature range from -55°C to 180°C, making it suitable for harsh conditions encountered in manufacturing, electrical, and HVAC applications. The device includes a peak non-repetitive forward surge current rating of 1.6 kA, providing protection against transient current spikes.

The package dimensions (length 36.4 mm, width 18.9 mm, height 17.25 mm) offer a compact footprint, compatible with standard mounting hardware for ease of installation. Being RoHS compliant, it respects environmental regulations by limiting hazardous substances.

With a stud anode diode configuration and 2-pin count, it integrates seamlessly into power circuits requiring dependable rectification and fast recovery characteristics. Vishay's manufacturing and quality assurance ensure consistency and long service life.

Standard recovery rectifier designed for high efficiency and reliability. Stud anode diode configuration suitable for industrial power applications. Maximum continuous forward current of 80 amperes and peak reverse voltage of 800 volts.

Maximum forward voltage drop of 1.4 volts to reduce energy loss. Operates within a temperature range from -55°C to 180°C for diverse environments. Robust DO-2013AB package with dimensions approximately 36.4 mm length and 18.9 mm width.

Compliance with RoHS standards ensuring environmentally friendly manufacture. Peak non-repetitive forward surge current capability of 1.6 kiloamperes for surge conditions. Pin count of 2 for straightforward mounting and electrical connections.

Designed and manufactured in India, ensuring local quality standards.

This Vishay recovery Diode is ideal for use in industrial power rectifiers, power supplies, motor drives, and other applications requiring high surge current handling and reliability. Explore more power semiconductor devices and electronics components on EnvMart for advanced industrial and commercial solutions.
