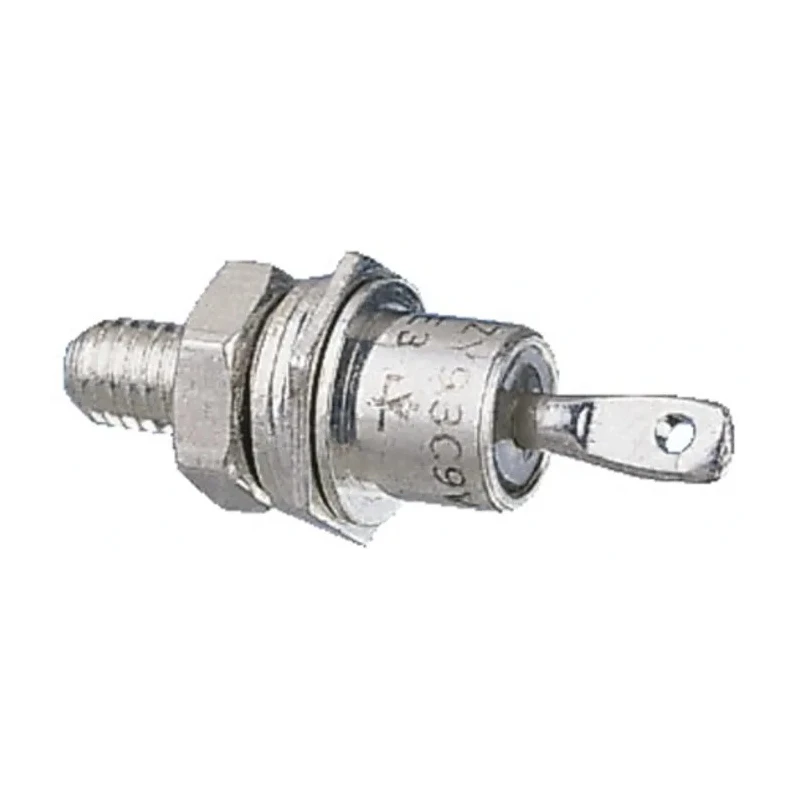

Vishay 1200 V 70 A Standard Recovery Diode 2-Pin DO-203AB VS-72HFR120

The Vishay VS-72HFR120 Standard Recovery Diode is designed for high-efficiency power rectification. With a maximum repetitive peak reverse voltage of 1200 V and continuous forward current rating of 70 A, this diode is ideal for industrial and laboratory electronic circuits requiring robust switching capabilities.

Housed in the standard DO-203AB 2-pin package with a stud anode, this diode facilitates screw mounting for secure and easy installation. It achieves a low forward voltage drop of 1.35 V, optimizing energy efficiency in power conversion systems.

Operating reliably within a wide temperature range from -65°C up to 180°C, the VS-72HFR120 is well-suited for harsh environments commonly found in manufacturing, construction, and commercial electrical equipment.

The robust peak non-repetitive forward surge current rating of 1.1 kA ensures the diode can withstand sudden power surges without damage, enhancing device longevity. Its low peak reverse current leakage of 9 µA minimizes power loss during reverse operation, beneficial in sensitive electronic applications.

Compact physical dimensions (36.5 mm length, 14.6 mm width, 17.4 mm height, diameter 17.4 mm) make this diode adaptable for systems with limited space. This diode supports a maximum continuous forward current of 70 amps.

It provides a peak reverse repetitive voltage rating of 1200 volts. The maximum forward voltage drop is 1.35 volts, ensuring efficient conduction. Designed for reliable operation between -65°C and 180°C temperature ranges.

The diode features a stud anode configuration with a 2-pin screw mount. High surge capability with a peak non-repetitive forward surge current of 1.1 kiloamperes. Low peak reverse current leakage of 9 microamperes. Compact dimensions with length 36.5 mm, width 14.6 mm, and height 17.4 mm.

This standard recovery rectifier is suitable for industrial power applications. No automotive or specific certifications apply to this diode.

This standard recovery power diode is ideal for use in industrial electronics, laboratory equipment, construction machinery, HVAC systems, and manufacturing power supplies where efficient rectification and reliability are critical.
