Nexperia 40 V 120 mA Schottky Diode Single 3-Pin SOT-23 BAS40,215

Free Delivery in India | Lowest Global Shipping Charges

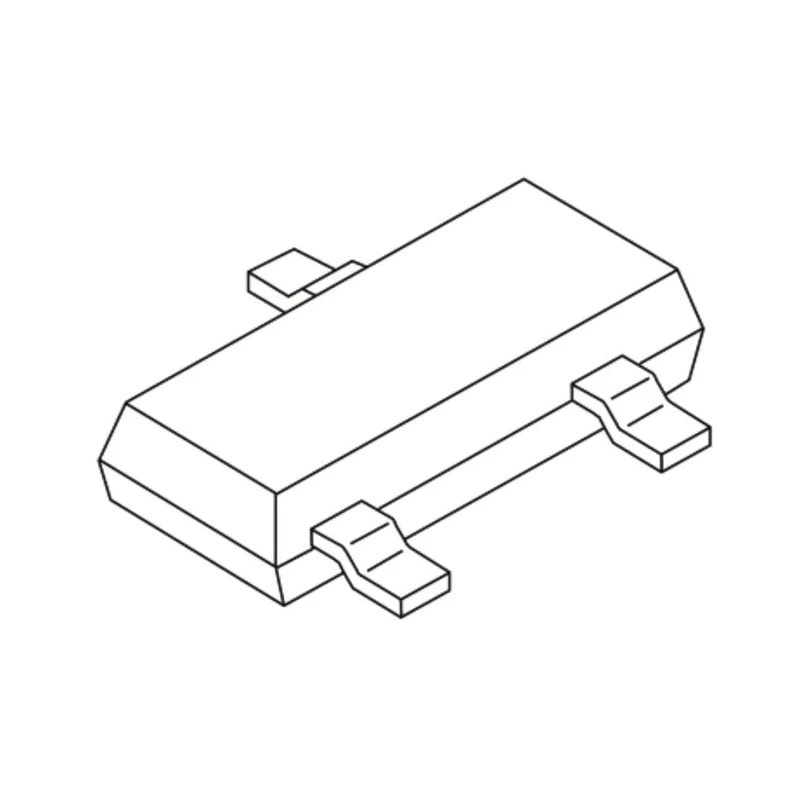

Nexperia 40 V 120 mA Schottky Diode Single 3-Pin SOT-23 BAS40,215

Name: Nexperia 40 V 120 mA Schottky Diode Single 3-Pin SOT-23 BAS40,215
Brand: Nexperia
SKU: 376706
Price: 0.04 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.1mm
Length	3mm
Model	BAS40,215
Width	1.4mm
Mount Type	Surface
Series	BAS40
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-65°C
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	120mA
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	200mA
Maximum Forward Voltage Vf	380mV

Key Features

High efficiency with low forward voltage drop ensures energy-saving operation.
Ultra-small, low-profile surface-mount SOT-23 package allows compact PCB designs.
Optimized for high junction temperature and low capacitance for reliable performance.
Low leakage current minimizes power losses in sensitive electronic applications.
Automotive grade AEC-Q101 compliant for rigorous automotive system use.
Wide operating temperature range from -65°C to 150°C for harsh environments.
Peak non-repetitive surge current rating of 200 mA supports temporary overloads.
Single diode configuration for discrete semiconductor applications.

Product Description

Nexperia BAS40,215 is a high efficiency Schottky diode designed for surface mount technology (SMT) applications. It features a 3-pin SOT-23 package suitable for compact electronic circuits, offering a maximum continuous forward current of 120 mA and peak reverse voltage of 40 V. This diode exhibits a low forward voltage drop of 380 mV and a minimal leakage current of 10 μA, making it ideal for power-sensitive designs.

With an automotive standard AEC-Q101 rating and a wide temperature operation from -65°C to 150°C, this diode is suited for automotive, industrial, and consumer electronics fields requiring high reliability and efficiency. Its low capacitance and negligible power switching losses enhance overall circuit performance, especially in power rectification and voltage clamping applications.

The BAS40 series offers exceptional surge tolerance with a peak non-repetitive forward surge current of 200 mA, protecting circuits under transient conditions. Its compact dimensions (3 mm length, 1.4 mm width, and 1.1 mm height) and single diode configuration facilitate flexible design integration.

High efficiency with low forward voltage drop ensures energy-saving operation. Ultra-small, low-profile surface-mount SOT-23 package allows compact PCB designs. Optimized for high junction temperature and low capacitance for reliable performance.

Low leakage current minimizes power losses in sensitive electronic applications. Automotive grade AEC-Q101 compliant for rigorous automotive system use. Wide operating temperature range from -65°C to 150°C for harsh environments.

Peak non-repetitive surge current rating of 200 mA supports temporary overloads. Compact dimensions enable dense mounting on PCBs. Single diode configuration suited for discrete semiconductor applications.

This Nexperia Schottky diode is well suited for industrial, automotive, communication, and general power supply circuits requiring fast switching and low energy loss. Explore our wide range of semiconductor components on EnvMart for additional electronic solutions.
