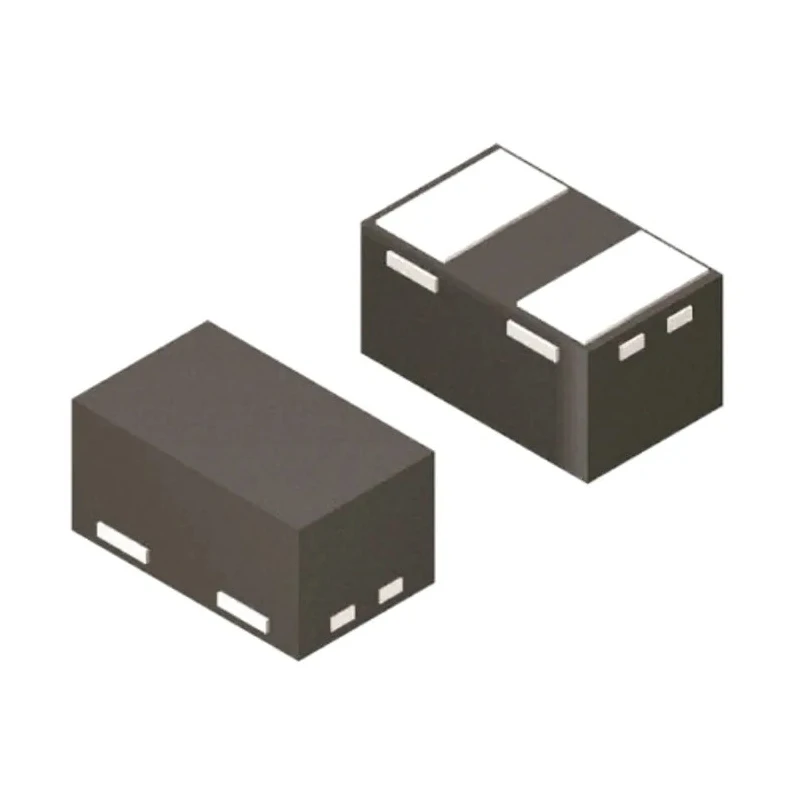

Nexperia 1-Element Uni-Directional ESD Protection Diode 2-Pin SOD-882 PESD3V3U1UL,315

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 1-Element Uni-Directional ESD Protection Diode 2-Pin SOD-882 PESD3V3U1UL,315

Name: Nexperia 1-Element Uni-Directional ESD Protection Diode 2-Pin SOD-882 PESD3V3U1UL,315
Brand: Nexperia
SKU: 376631
Price: 0.1 USD
Availability: InStock



Category ESD Protection Diode Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	0.5mm
Length	1.02mm
Model	PESD3V3U1UL,315
Width	0.62mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOD-882
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	4.5V
Maximum Reverse Stand-off Voltage Vwm	3.3V
Test Current It	5mA
Maximum Reverse Leakage Current	100nA

Key Features

Single uni-directional diode configuration protects against electrostatic discharge.
Small 2-pin SOD-882 surface mount package minimizes PCB footprint.
Minimum breakdown voltage rating of 4.5 V with maximum stand-off voltage of 3.3 V.
Operates reliably from -55°C to 150°C for a wide range of industrial applications.
Low maximum reverse leakage current of 100 nA enhances circuit stability.
Tested to rigorous standards including IEC 61000-4-2 level 4 and MIL-STD-883 for ESD robustness.
Meets automotive quality standard AEC-Q101 for vehicle electronics applications.
Ideal for protecting sensitive electronics in industrial, automotive, and consumer devices.

Product Description

Nexperia PESD3V3U1UL,315 is a 1-element uni-directional ESD protection diode featuring ultra-low capacitance designed to safeguard one data line against electrostatic discharge (ESD) events. This diode is housed in a compact, surface-mount SOD-882 package measuring 1.02 mm length, 0.62 mm width, and 0.5 mm height, making it suitable for high-density PCB layouts.

This device offers a minimum breakdown voltage of 4.5 V and a maximum reverse stand-off voltage of 3.3 V. Its operating temperature range extends from -55°C to 150°C, ensuring reliable performance in harsh automotive and industrial environments. The diode exhibits a test current of 5 mA and a very low maximum reverse leakage current of 100 nA, enhancing circuit integrity under normal operation.

Certification to standards such as IEC 61000-4-2 at level 4, MIL-STD-883, and compliance with automotive AEC-Q101 standards affirm its robust protection capabilities. The Nexperia PESD3V3U1UL,315 diode is widely used in electronic applications requiring transient voltage suppression, including industrial control systems, automotive electronics, telecommunications, and consumer devices.

Single uni-directional ESD protection diode configuration. Surface mount SOD-882 package optimizes PCB space. Operating temperature range from -55°C to 150°C for demanding environments. Certified to stringent ESD and automotive standards for reliability.

Compact physical size enables flexible design integration. Low power loss and high ESD robustness protect sensitive electronics. Ultra-low capacitance minimizes signal distortion on data lines. Suitable for industrial, automotive, laboratory, and commercial electronics applications.

The Nexperia PESD3V3U1UL,315 diode is an essential component for transient voltage suppression to protect critical electronic circuits. Its compact design and high reliability make it an ideal choice for engineers and product designers seeking durable, space-efficient ESD protection solutions. Explore additional semiconductor components and ESD Protection Diodes in EnvMart for comprehensive electronic systems design.
