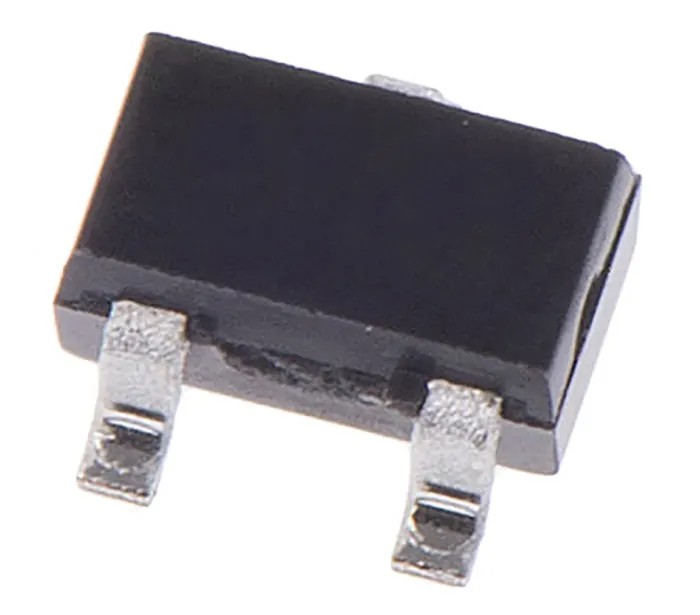

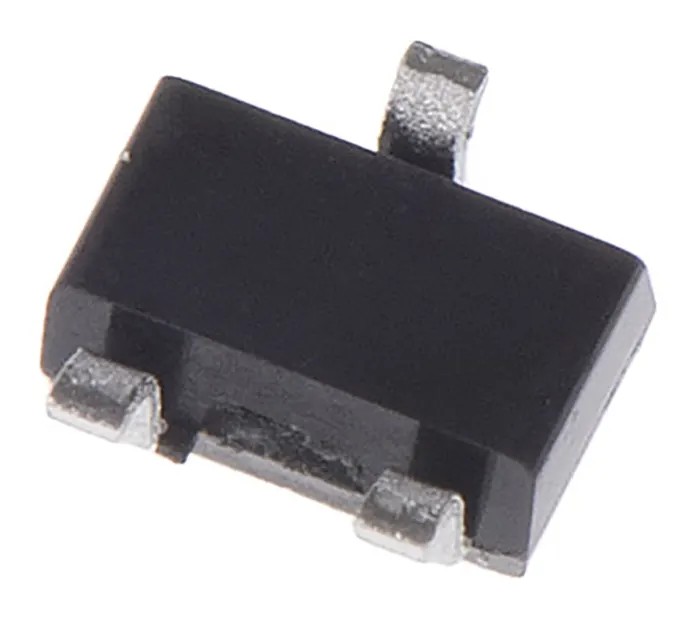

Nexperia Small Signal PNP Transistor BC807W, -500 mA, -45 V, 3-Pin SOT-323 BC807W

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Small Signal PNP Transistor BC807W, -500 mA, -45 V, 3-Pin SOT-323 BC807W

Name: Nexperia Small Signal PNP Transistor BC807W, -500 mA, -45 V, 3-Pin SOT-323 BC807W
Brand: Nexperia
SKU: 376661
Price: 0.06 USD
Availability: InStock



Category Bipolar Transistors Brand Nexperia Condition New

Specifications

Country of Origin	Malaysia
Brand	Nexperia
Height	1.1mm
Length	2.1mm
Model	BC807W
Width	2.2mm
Mount Type	Surface
Series	BC807
Maximum Operating Temperature	150°C
Package Type	SOT-323
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	3
Maximum Collector Emitter Voltage Vceo	-45V
Minimum DC Current Gain hFE	100
Transistor Polarity	PNP
Maximum Emitter Base Voltage VEBO	-5V
Maximum Collector Base Voltage VCBO	-50V
Maximum Power Dissipation Pd	200mW
Maximum DC Collector Current Idc	-500mA
Transistor Configuration	Single
Maximum Transition Frequency ft	100MHz
onsemi Digital Transistor, -500 mA PNP, -45 V, 3-Pin SC-70Brand	onsemi

Key Features

Supports a maximum collector base voltage of -50 V.
Maximum power dissipation is 200 mW ensuring efficient performance.
Features a minimum DC current gain (hFE) of 100.
Capable of operating at frequencies up to 100 MHz.
Operating temperature ranges from -65°C to 150°C ensuring reliability in harsh conditions.
Designed for surface mount applications with a 3-pin SOT-323 package.
Complies with RoHS standards for environmental safety.

Product Description

Nexperia BC807W is a small signal PNP bipolar transistor designed for general-purpose amplification and switching applications. It supports a maximum DC collector current of -500 mA and a collector-emitter voltage rating of -45 V, packaged in a compact 3-pin SOT-323 surface mount package.

The transistor features a minimum current gain (hFE) of 100, making it suitable for low power amplification in various electronic circuits. It has a maximum power dissipation of 200 mW and a transition frequency of up to 100 MHz, ensuring stable and efficient high-frequency performance.

This device is designed to operate across a wide temperature range from -65°C to 150°C, making it reliable for industrial, laboratory, communication, and consumer electronics applications. The small form factor of 2.1 mm length, 2.2 mm width, and 1.1 mm height supports high-density PCB layouts.

The BC807W transistor complies with RoHS environmental standards, ensuring it meets global directives for hazardous substance content. It features a maximum collector base voltage of -50 V and a maximum emitter base voltage of -5 V, suitable for various signal switching uses.

Applications include signal amplification, switching, and general-purpose electronic circuit designs where a reliable PNP transistor is required. The SOT-323 package supports efficient automated surface mounting in manufacturing.

Supports a maximum collector base voltage of -50 V. Maximum power dissipation of 200 mW. Minimum DC current gain (hFE) of 100. Maximum transition frequency of 100 MHz. Operating temperature range from -65°C to 150°C. Compact SOT-323 surface mount package with 3 pins.

RoHS compliant for environmental safety.

Choose the Nexperia BC807W transistor for efficient, reliable small signal amplification and switching in industrial and consumer electronics. Browse our electronics category for more semiconductor solutions.
