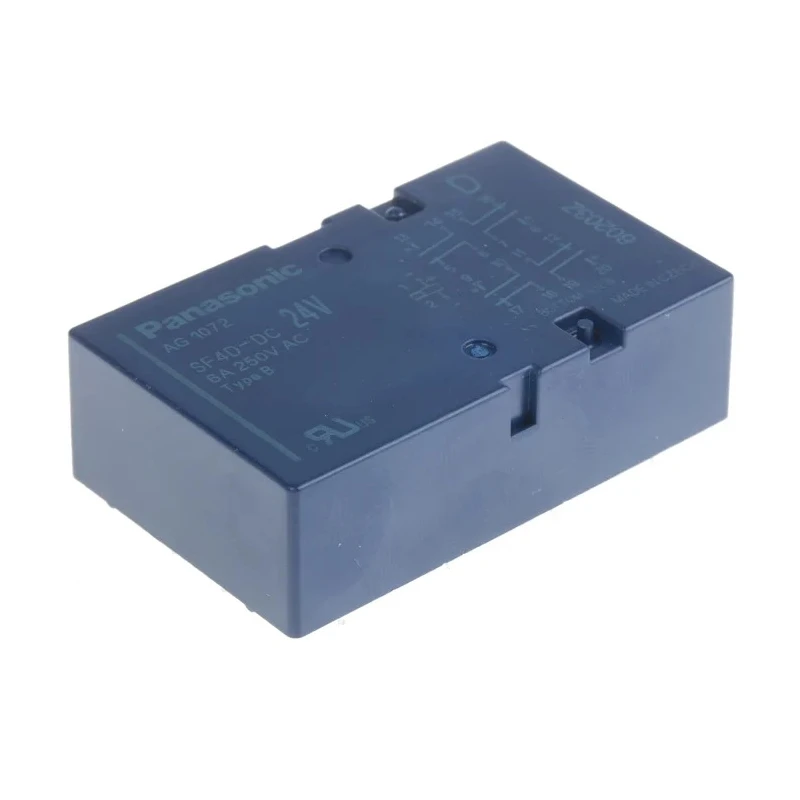

Panasonic PCB Force Guided Relay 24V DC Coil Voltage 4-Pole 4PDT SF4D24D

Panasonic SF4D24D PCB Force Guided Relay is a high-precision relay designed for safety and control applications in industrial and automation sectors. Featuring a 24V DC coil voltage and 4 poles with 4PDT contact configuration, it provides reliable switching performance with forcibly guided contacts ensuring safety mechanisms.

This monostable relay supports a maximum switching voltage of 400V, suitable for electrical control systems requiring efficient voltage handling. The coil resistance of 1.152kΩ and coil power of 500mW ensure energy-efficient operation with minimal heat generation.

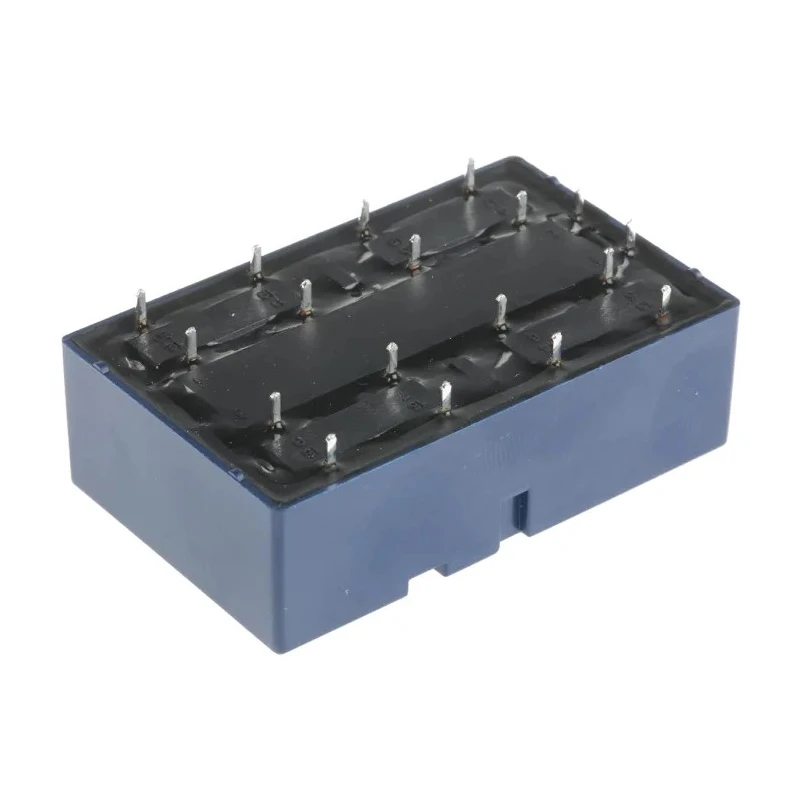

Designed for PCB mounting, this relay measures 53.3mm in length, 16.5mm in height, and 33mm in depth, making it compact for electronic circuit boards. The silver alloy contacts offer excellent electrical conductivity and wear resistance, enhancing durability.

Operating reliably in temperatures from -40°C to 70°C, the SF4D24D relay is suitable for harsh industrial environments. Its terminal type is designed for PCB integration with ease of installation and maintenance.

The coil to contact isolation voltage withstands up to 2.5kVrms, providing high electrical isolation for safety in control circuits. The relay allows a maximum switching frequency of 10Hz without load, supporting fast switching cycles for dynamic electrical applications.

This Panasonic force guided relay finds applications across industrial automation, manufacturing control systems, safety circuits, and electrical signal conditioning. It ensures secure operation where forced guided contacts are required to maintain relay safety standards.

Monostable relay with forcibly guided contacts for safety applications. Maximum switching voltage of 400V ensures compatibility with various circuits. Coil resistance rated at 1.152 kiloohms with power consumption of 500mW.

Operating temperature range from -40°C to 70°C for robust industrial usage. Compact PCB mount relay with dimensions 53.3mm length, 16.5mm height, and 33mm depth. Silver alloy contact material provides excellent conductivity and durability.

Coil to contact isolation voltage rated at 2.5kVrms for electrical safety. Maximum switching frequency (without load) of 10Hz enables fast switching operations. PCB terminal type facilitates easy PCB integration and soldering.
