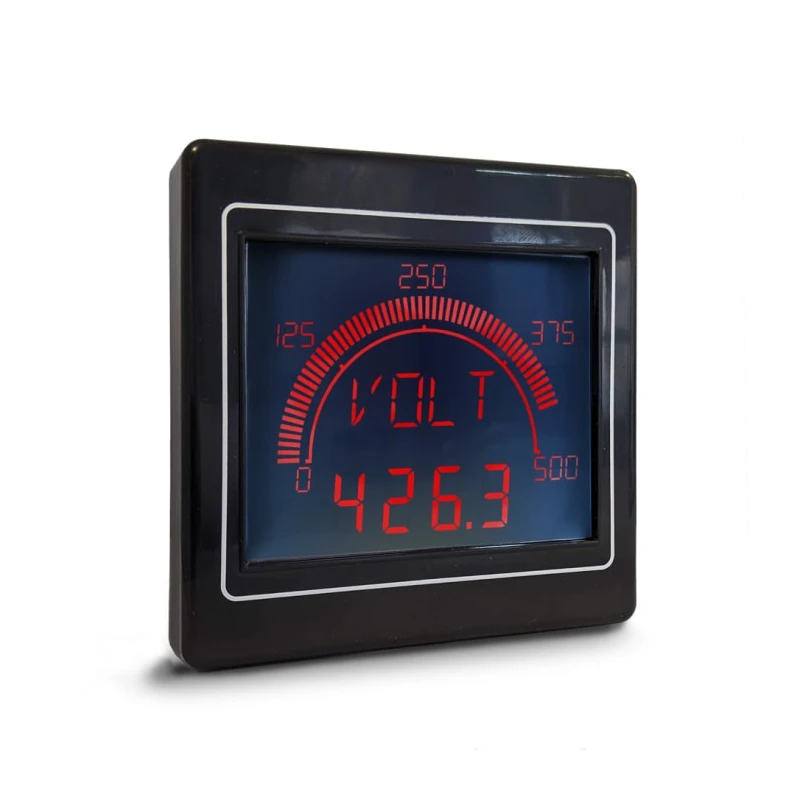

Trumeter APM LCD Multi-Function Panel Meter for Current, Voltage, Frequency, Power, 68mm x 68mm Cutout APM-MAX-M23-NL-4R

Trumeter APM-MAX-M23-NL-4R is a high-performance Multi-Function Panel Meter designed for industrial and process control applications. The meter measures key electrical parameters including current, voltage, frequency, and power, making it suitable for comprehensive monitoring of lower voltage electrical systems.

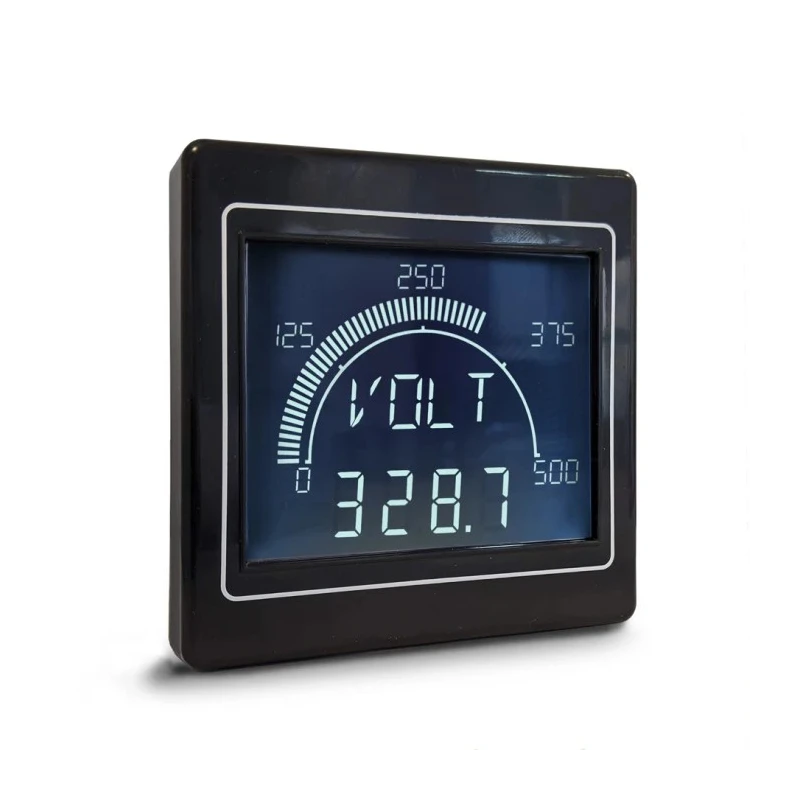

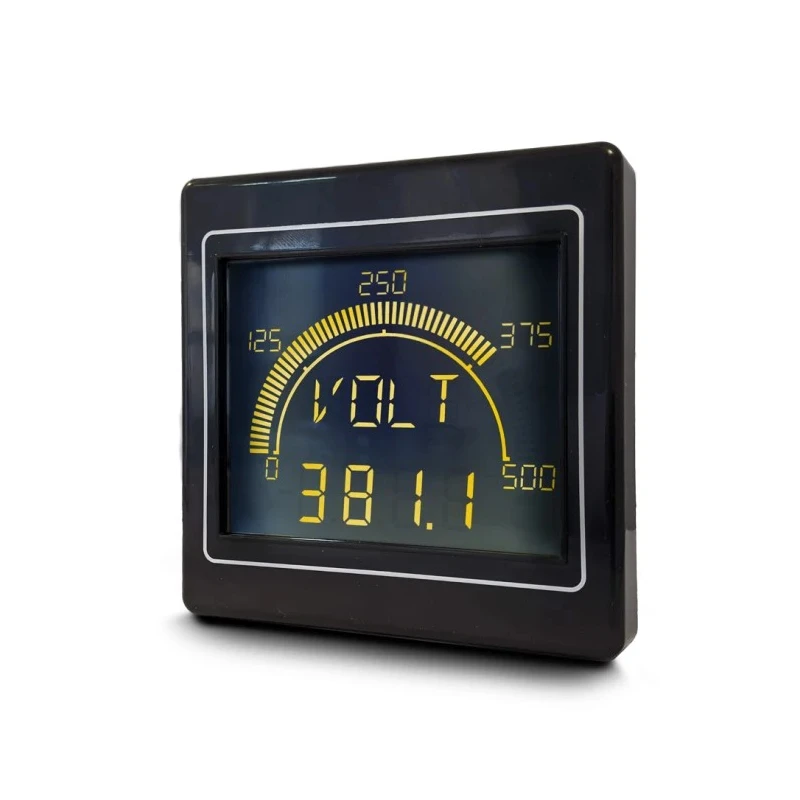

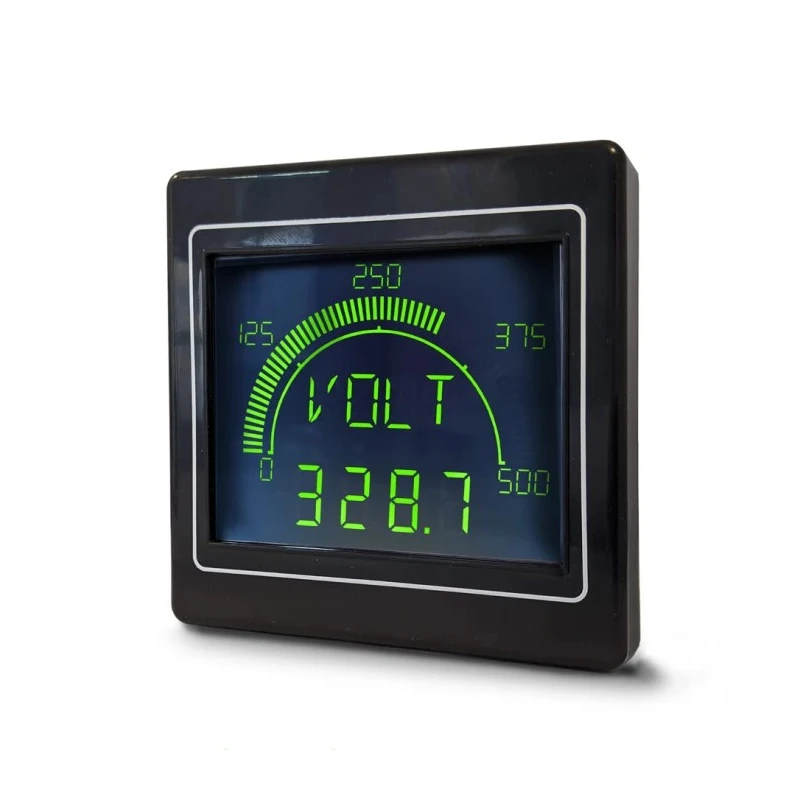

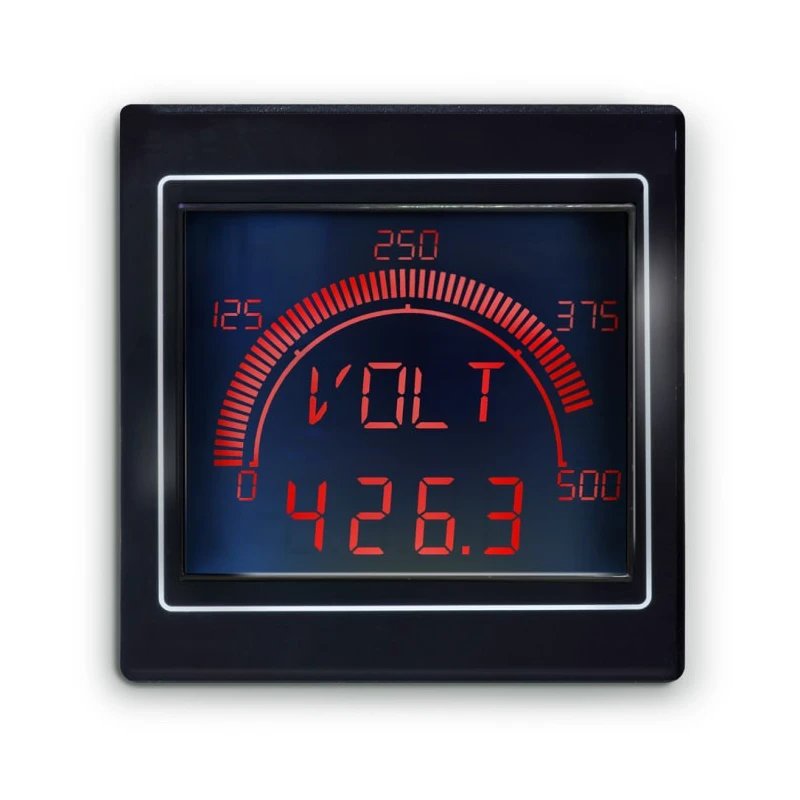

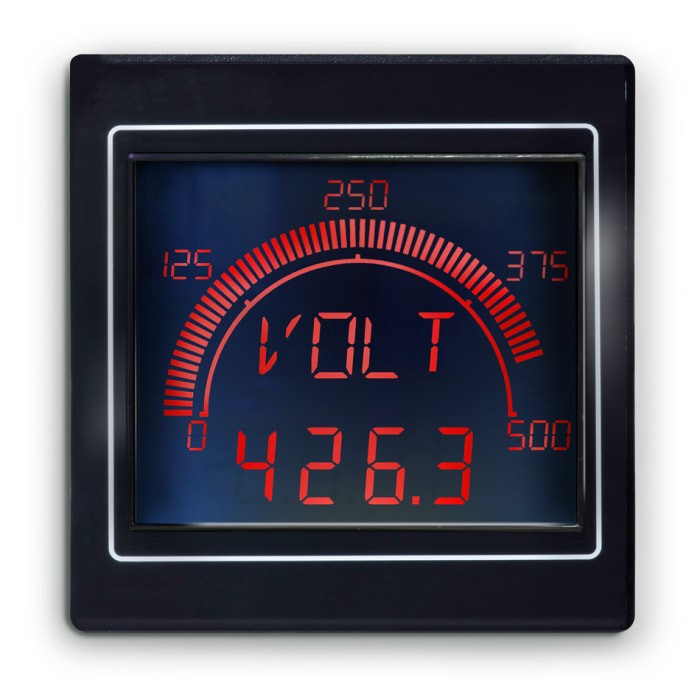

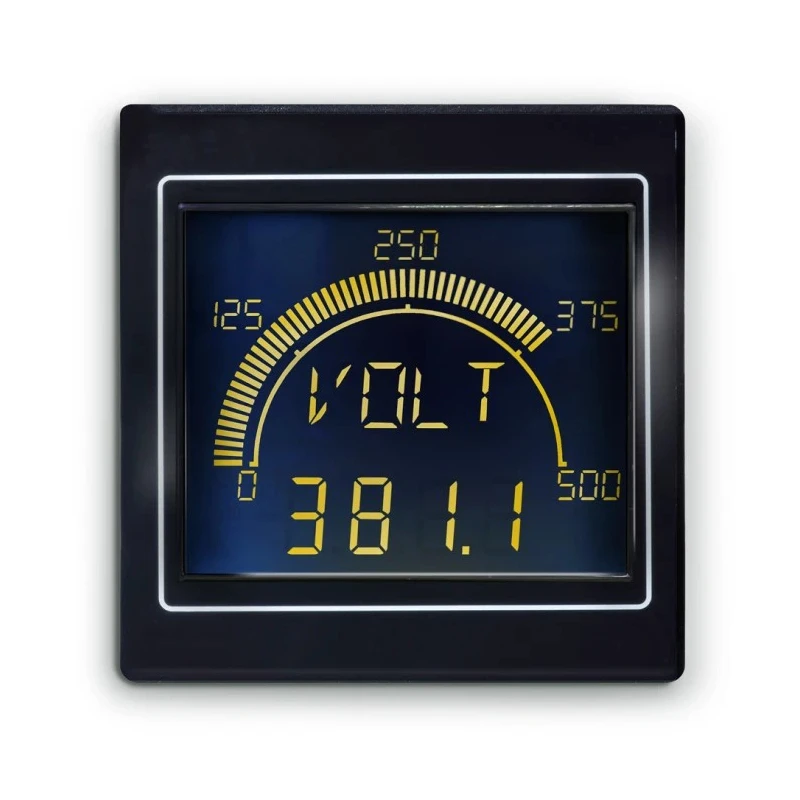

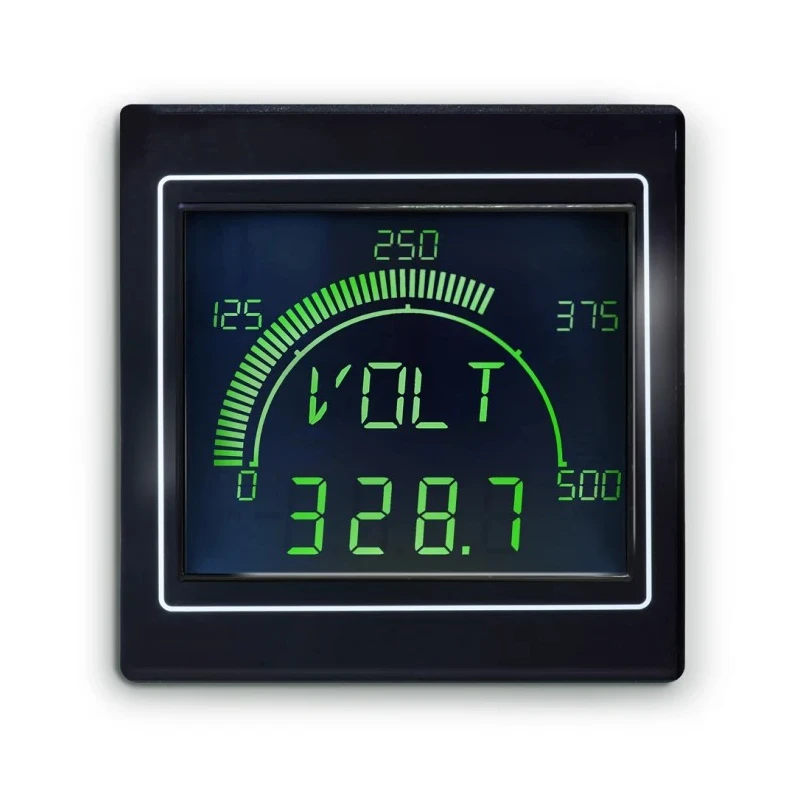

This panel meter features a 68mm x 68mm cutout size with a depth of 45mm, enabling easy panel installation. The display integrates a 60-segment bar graph and a clear 4-digit LCD with a digit height of 14.5mm, providing both analog visualization and digital accuracy simultaneously. The full colour RGB backlight allows for dynamic alerts based on user-defined conditions, enhancing operational safety.

The APM-MAX-M23-NL-4R supports programmable scaling options including minimum and maximum ranges, offset, gain, and non-linearization scaling up to 20 points. It includes two independent alarm setpoints and outputs consisting of two digital open collector outputs and one 4 - 20mA analogue output, enabling versatile control and signaling capabilities.

Connectivity is supported via serial Modbus RTU for seamless communication within industrial automation systems. Its robust construction has an IP65 rating, making it suitable for challenging environments. The device operates between temperatures of -10°C to 60°C, ensuring reliable performance across different ambient conditions.

The unique negative display mode enhances visibility in dark environments by using colour-changing figures against a black background. This meter complies with UL, RoHS, and CE standards and is manufactured in Malaysia.

Combines analog bar graph and digital LCD display. Dynamic full-colour RGB backlight for intuitive alerts. Supports Modbus RTU/TCP IP communication. Two digital outputs and one analogue output for integration. Programmable scaling, alarms, and remote monitoring features.

IP65 rated enclosure for protection against dust and water. Wide operating temperature range of -10°C to 60°C.

This reliable and configurable panel meter is ideal for industrial, manufacturing, automation, HVAC, and energy monitoring applications. It provides operators and engineers with precise, at-a-glance electrical system data to improve process control and safety.
