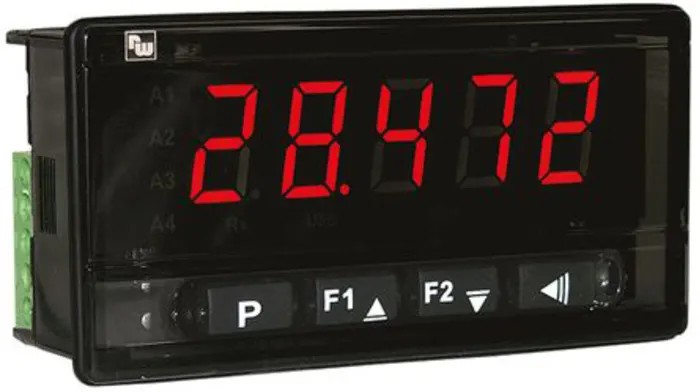

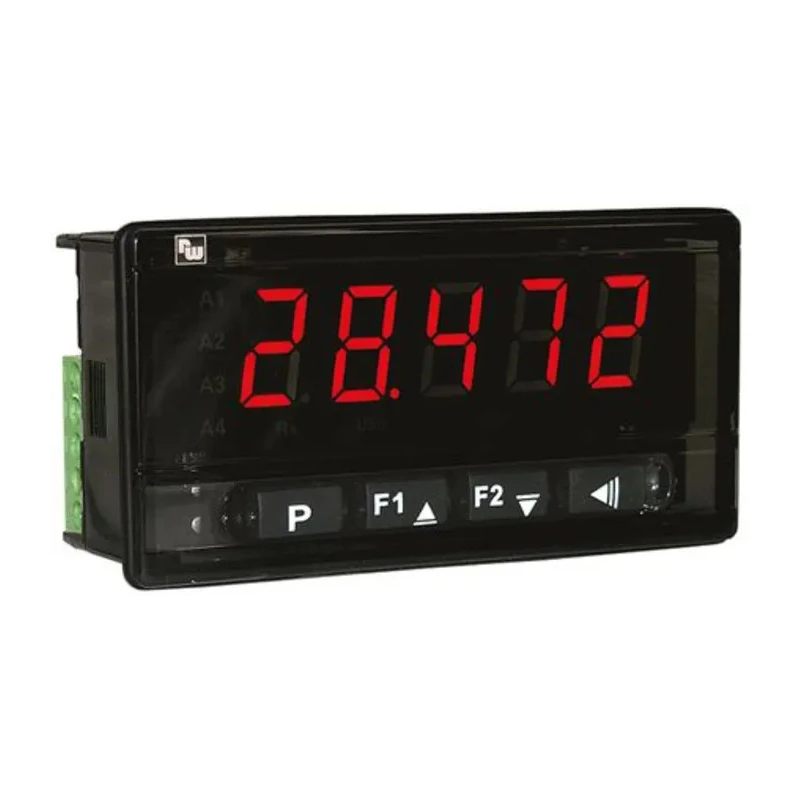

Wachendorff LED Multi-Function Panel Meter for Voltage, Current, Temperature with 45.5 mm x 93 mm Cutout DA9602R0
Specifications
| Country of Origin | Brazil |
|---|---|
| Display Type | LED |
| Brand | Wachendorff |
| Model | DA9602R0 |
| Depth | 35mm |
| Maximum Operating Temperature | 50°C |
| Number Of Digits | 5 |
| Minimum Operating Temperature | 0°C |
| Digit height | 16mm |
| Interfaces | USB-Port) |
| Properties Measured | Voltage, Current, Temperature |
| Cutout Height | 45.5mm |
| Cutout Width | 93mm |
| GILGEN Muller & Weigert Digital Voltmeter DC, LED Display 3.5-DigitsBrand | GILGEN Muller & Weigert |
Key Features
- The device features a 5-digit red LED display with 16 mm digit height for clear readings.
- Supports universal inputs including thermocouples, thermoresistance, voltage, and current sensors.
- Equipped with two relay alarm outputs with six configurable functions for process control.
- Offers programming via buttons or USB communication port for flexible configuration.
- Designed with an IP65-rated front panel for robust protection in industrial environments.
- Compact mounting depth of 35 mm allows installation in limited spaces.
- Operating temperature range between 0°C and 50°C suits various industrial settings.
- Displays measurements in Celsius or Fahrenheit as needed.
Product Description
Wachendorff DA9602R0 is an advanced LED multi-function panel meter designed for precise industrial process measurement and control. It supports voltage, current, and temperature inputs, making it suitable for a broad range of applications such as manufacturing, laboratory instrumentation, HVAC control, and automation systems.
The panel meter features a 5-digit LED display with a digit height of 16 mm, ensuring readability in various lighting conditions. Its universal input capability accommodates thermocouples, resistance temperature detectors (RTDs), voltage signals, and current sensors, providing versatile process monitoring.
Compact in dimensions with a cutout size of 45.5 mm by 93 mm and depth of just 35 mm, the meter fits easily into control panels requiring DIN 96 x 48 mm format. The front panel is IP65 rated, offering protection against dust and water ingress, suitable for demanding industrial environments.
Additional functionalities include two configurable relay alarm outputs with six distinct functions, sensor offset adjustment, and password-protected parameter configuration. Temperature readings can be displayed in degrees Celsius or Fahrenheit, catering to different user preferences.
The DA9602R0 supports programming through front panel buttons or via USB communication, enabling straightforward setup and integration into automated systems. The device has a maximum operating temperature of 50°C and minimum of 0°C.
Compact depth of 35 mm allows mounting in tight panel spaces. Powered by universal supply voltage of 100 to 240 Vac consuming approximately 6 VA. Two alarm relays add to its functionality in process control automation. IP65 front protection ensures durability in industrial conditions.
Originating from Brazil, this panel meter guarantees superior manufacturing standards and durability. It is ideal for industrial automation systems requiring reliable and versatile multi-parameter monitoring.
Explore more industrial measurement and control solutions in the Multi-Function Panel Meter category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DA9602R0 supports measurements for voltage, current, and temperature, making it versatile for various applications.
This model requires a cutout size of 45.5 mm in height and 93 mm in width for proper installation.
The operating temperature range for the DA9602R0 is between 0°C and 50°C, suitable for various industrial environments.
It features a 5-digit LED display with a digit height of 16 mm, ensuring clear readings in different lighting conditions.
It supports universal inputs including thermocouples, resistance temperature detectors (RTDs), voltage signals, and current sensors.
This panel meter is equipped with two relay alarm outputs that have six configurable functions for process control.
Programming can be done through the front panel buttons or via a USB communication port for flexible configuration.
The depth of the DA9602R0 is 35 mm, allowing it to fit into tight spaces in control panels.
The front panel of this model is rated IP65, providing protection against dust and water ingress in industrial settings.
It operates on a universal supply voltage of 100 to 240 Vac and consumes approximately 6 VA.
This panel meter originates from Brazil, ensuring adherence to superior manufacturing standards.
It is suitable for applications in manufacturing, laboratory instrumentation, HVAC control, and automation systems.
