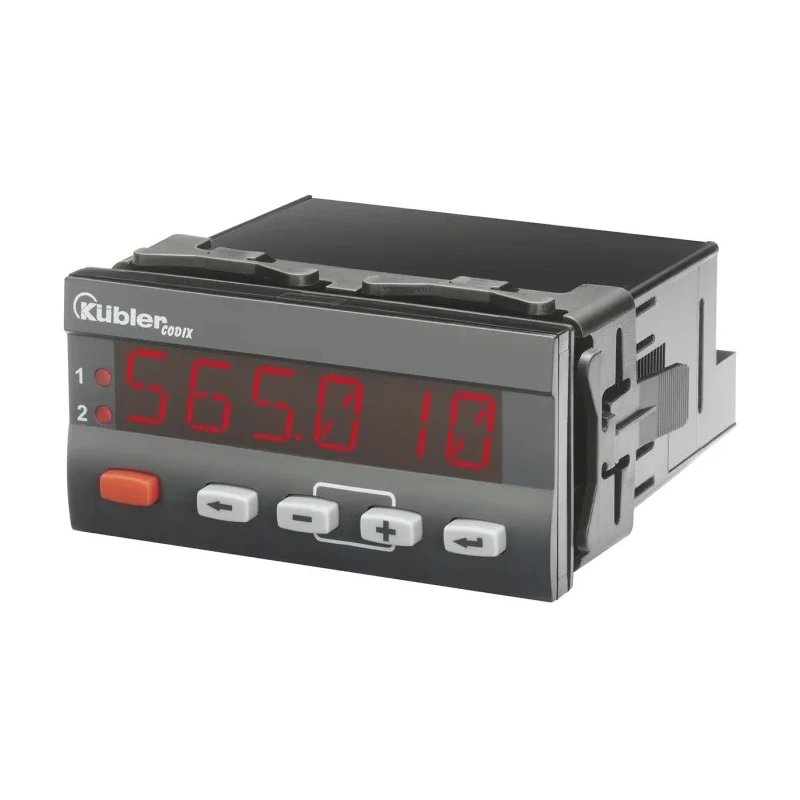

Kubler CODIX 565 LED Digital Panel Multifunction Meter for Current, 45 mm x 92 mm 6.565.010.309
Specifications
| Country of Origin | Germany |
|---|---|
| Display Type | LED |
| Brand | Kubler |
| Depth | 90.5mm |
| Sampling rate | 10 readings per second |
| Series | CODIX 565 |
| Maximum Operating Temperature | 60°C |
| Meter Type | Digital |
| Number Of Digits | 6 |
| Minimum Operating Temperature | -20°C |
| Digit height | 14mm |
| Standards/Approvals | RoHS |
| Properties Measured | Current |
| Cutout Height | 45mm |
| Cutout Width | 92mm |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Minimum Measurement | -199999 |
| Maximum Measurement | 999999 |
Key Features
- Features a clear 6-digit 14-segment LED display measuring 14 mm in height.
- Compact dimensions with a cutout size of 45 mm height and 92 mm width, and a depth of 90.5 mm.
- Operating temperature range from -20°C to 60°C for versatile industrial applications.
- Offers simple programming through 4 front keys and quick-start guide for ease of use.
- Includes 2 relay outputs for limit monitoring with hysteresis and ON/OFF delay functionality.
- Displays measurement range from -199999 to 999999 with leading zero blanking for clarity.
- Galvanically isolated inputs and outputs to ensure signal integrity and safety.
- Digital filter for smoothing of display variations caused by unstable input signals.
Product Description
Kubler 6.565.010.309 LED Digital Panel Multifunction Meter for Current features a high-resolution 6-digit LED display measuring 14 mm in digit height. Its compact panel cutout of 45 mm x 92 mm and depth of 90.5 mm allows easy integration into industrial control panels.
This digital meter measures current with a range spanning from -199999 to 999999 and offers a sampling rate of 10 readings per second, allowing fast and accurate monitoring. The meter operates reliably in temperatures from -20°C up to 60°C, suitable for diverse industrial environments.
Equipped with user-friendly programming via four front keys and a practical quick-start guide, the device simplifies configuration. It includes two changeover relay outputs for limit monitoring, with hysteresis and delay functions for precise process control. The inputs and outputs are galvanically isolated, preventing electrical interference and enhancing safety.
The digital filter smooths the displayed values to reduce fluctuations from unstable input signals, while the tare function and customer-specific linearization capability via 12 control points allow tailored measurement accuracy.
The meter adheres to the RoHS standard and is manufactured in Germany, ensuring quality and compliance. Its robust performance, clear display, and flexible programming make it ideal for industrial automation, process control, manufacturing, electrical measurement, and monitoring applications.
Features a clear 6-digit 14-segment LED display measuring 14 mm in height. Compact dimensions with a cutout size of 45 mm height and 92 mm width, and a depth of 90.5 mm. Operating temperature range from -20°C to 60°C for versatile industrial applications.
Offers simple programming through 4 front keys and quick-start guide for ease of use. Includes 2 relay outputs for limit monitoring with hysteresis and ON/OFF delay functionality. Displays measurement range from -199999 to 999999 with leading zero blanking for clarity.
Galvanically isolated inputs and outputs to ensure signal integrity and safety. Digital filter for smoothing of display variations caused by unstable input signals. Supports tare function and customer-specific linearization curve with 12 control points.
Explore the Kubler range in EnvMart for advanced industrial instrumentation solutions.
Explore more products in our Multi-Function Panel Meter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model displays a measurement range from -199999 to 999999.
It operates reliably within a temperature range of -20°C to 60°C.
It features a clear 6-digit LED display with a digit height of 14 mm.
This model includes two changeover relay outputs for limit monitoring.
The sampling rate is 10 readings per second, allowing for fast monitoring.
The cutout dimensions required for installation are 45 mm in height and 92 mm in width.
It offers simple programming through four front keys and includes a quick-start guide for ease of use.
Yes, the inputs and outputs are galvanically isolated to ensure signal integrity and safety.
It adheres to the RoHS standard and is compliant with ANSI/ESD S20.20 and BS EN 61340-5-1 standards.
This digital panel meter is designed to measure current.
The depth of this model is 90.5 mm.
Yes, it is suitable for diverse industrial applications including process control and electrical measurement.
