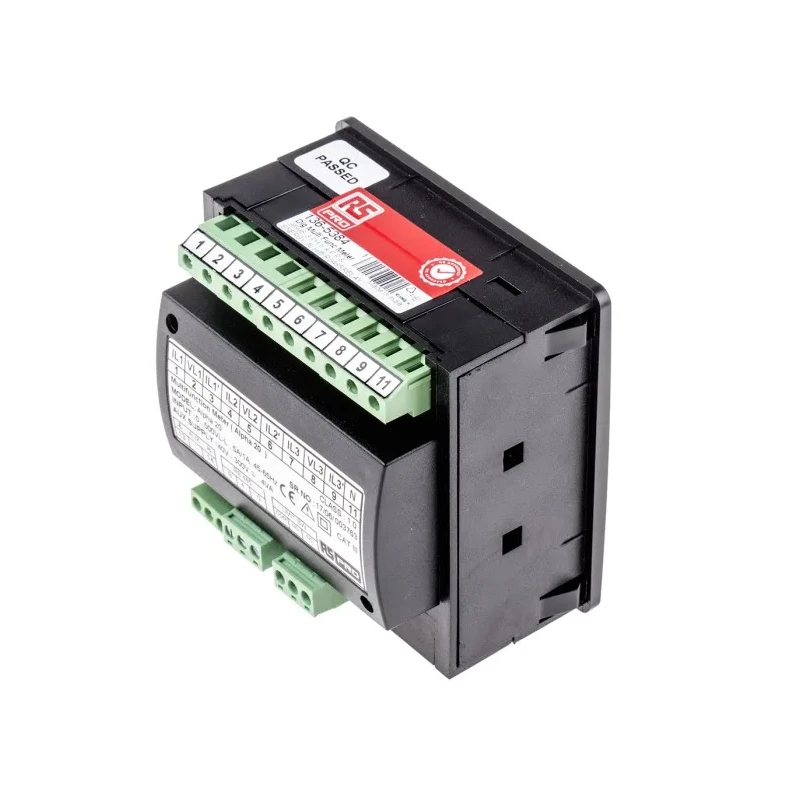

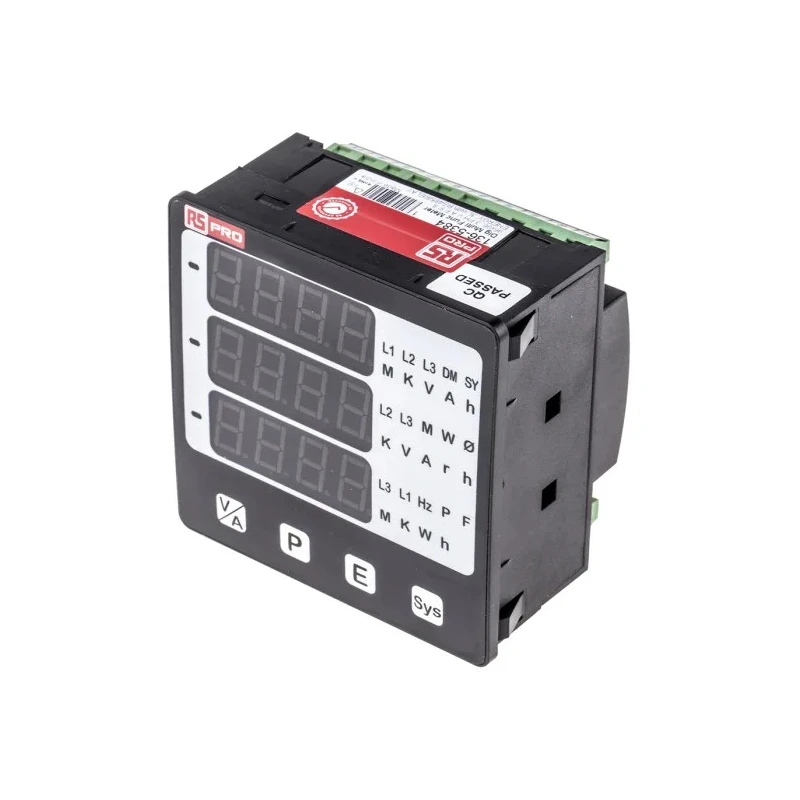

RS PRO LED Digital Panel Multifunction Meter for Active, AC Current, Frequency, Power, AC Voltage Energy 92 mm x 92 136-5384

RS PRO 136-5384 LED Digital Panel Multifunction Meter is a versatile device engineered for accurate monitoring of electrical parameters including Active Power, AC Current, Frequency, AC Voltage, and Energy. This meter is ideal for three-phase industrial equipment, enabling prompt detection of electrical issues such as voltage imbalances and line drops, thereby enhancing machine reliability and efficiency.

Equipped with a clear and bright LED display, this digital meter presents measured values distinctly even in low-light conditions. It allows simultaneous display of selectable parameters, reducing the necessity for additional control panels. The meter accommodates frequency and current monitoring within an extensive range, supporting enhanced operational versatility.

Designed for industrial applications, it is well-suited for regulating industrial boilers, lighting systems, and air handling units. The panel meter conforms to international IEC standards IEC 60529, IEC 61010-1:2001, and IEC 61326-1:2005, ensuring rigorous compliance for safety and performance in operational environments.

The unit’s physical dimensions include a cutout size of 92 mm by 92 mm and a depth of 55 mm. It operates reliably within a temperature range from -20°C up to +70°C, making it capable of functioning efficiently in demanding environments. The meter’s IP50 ingress protection rating offers dependable resistance against dust infiltration, enhancing its longevity and functionality in contaminated atmospheres.

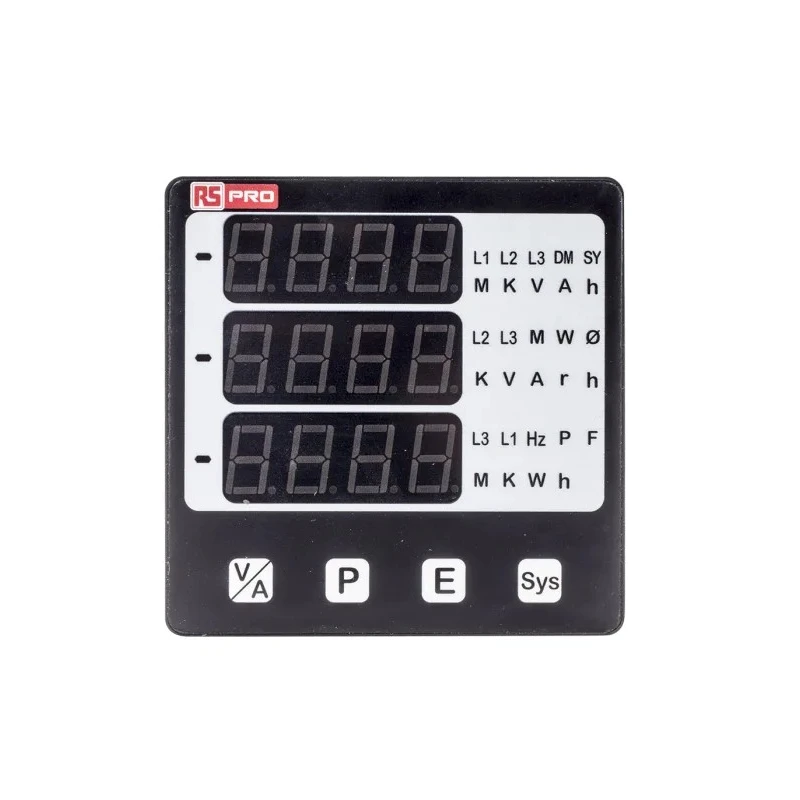

Its four-digit LED display features 14 mm digit height, providing a clear and precise readout of measurements. This robust digital multifunction meter supports reactive properties and is part of the Alpha 20 series, known for reliability and versatility in industrial instrumentation.

This multifunction panel meter is an essential component in electrical automation and control systems across industrial, commercial, and manufacturing sectors. It is designed to deliver consistent, accurate monitoring and control for process optimization and maintenance enhancement.

Set includes a single RS PRO LED Digital Panel Multifunction Meter. It serves a vital role in industrial automation, process control, and electrical monitoring systems. Explore a wide range of industrial automation and measurement solutions in the Electronics & Electricals category at EnvMart.

The meter features a bright LED display for clear readability under various lighting conditions. It supports multiple electrical parameters including active, apparent power, and import-export energy. Suitable for use in industrial applications such as boiler regulation, lighting control, and air handling units.

Constructed to operate reliably in harsh environments with a temperature range of -20°C to 70°C. Complies with IEC 60529, IEC 61010-1:2001, and IEC 61326-1:2005 standards ensuring safety and performance. Compact panel meter with dimensions 92 mm height, 92 mm width, and 55 mm depth.

Four-digit display with digit height of 14 mm enhances measurement precision. Ingress Protection rating IP50 provides good resistance against dust and contaminants.
