Lascar PanelPilotACE TFT Digital Panel Multifunction Meter for Current Voltage 117 mm x 180 mm SGD 70-A

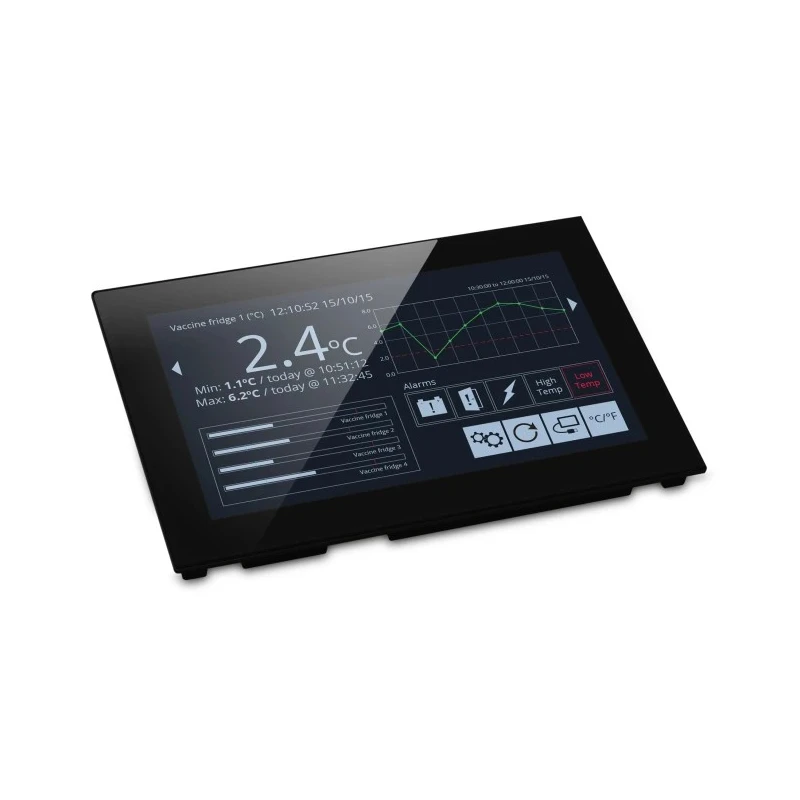

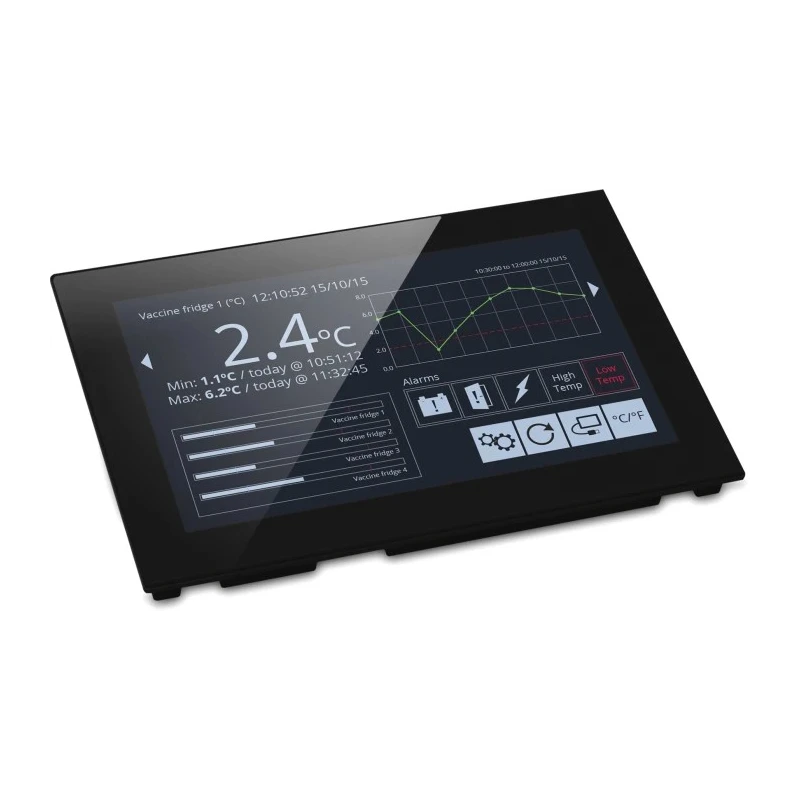

Lascar SGD 70-A PanelPilotACE TFT Digital Panel Multifunction Meter provides advanced measurement and control functions ideal for industrial and process automation applications. Featuring a vibrant 7-inch TFT capacitive touchscreen supporting 16.7 million colors, the meter delivers precise visualization for current and voltage parameters.

Designed with four 16-bit bipolar analogue inputs capable of measuring up to ±40V d.c., the SGD 70-A supports a wide range of electrical signals. Operating within a supply voltage range of 5 to 30V d.c. and typical current draw of 1A at 5V, this meter is suited for varied installations.

Its multifunctionality extends with eight digital input/output pins, two alarm outputs, and four 8-bit PWM outputs, enabling complex control schemes including PID. Communication interfaces include Ethernet FTP for logged data transfer, RS232 and RS485 serial ports, and optional add-on boards for temperature measurement or CANBus support.

The meter includes robust monitoring features such as multi-channel data logging and trend graphing, facilitating detailed process analysis. Industrial applications range from HVAC systems, energy management, automotive instrumentation, to scientific and medical equipment.

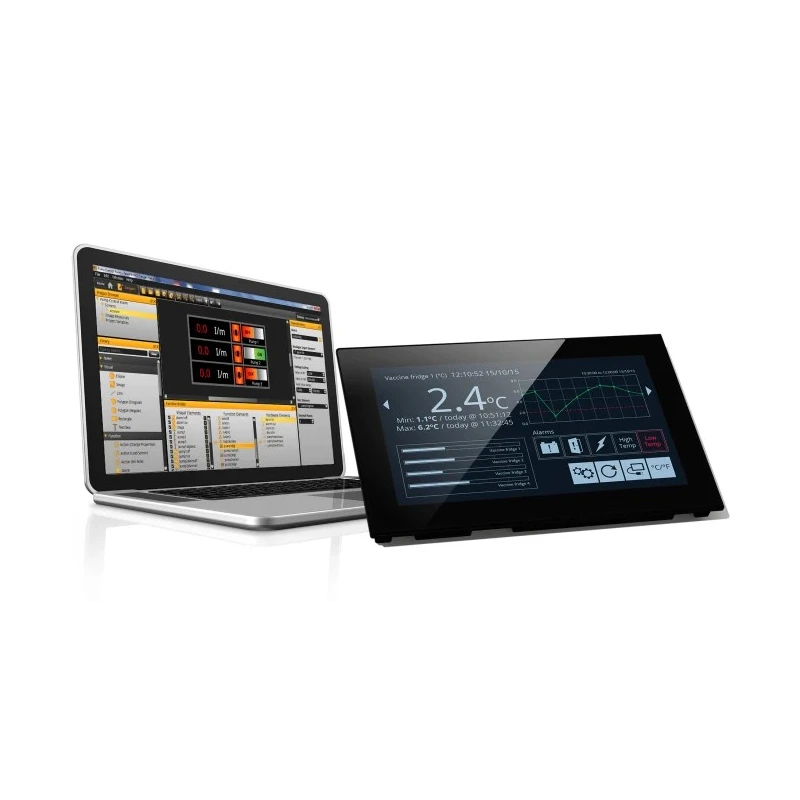

Users can fully customize display interfaces using the free PanelPilotACE Design Studio software compatible with Windows 7, 8, and 10, enabling rapid development of tailored panels and user experiences.

With compact cutout requirements of 117 mm by 180 mm and a shallow 18.1 mm depth, the SGD 70-A integrates smoothly into existing panel designs. Operating temperature limits from 0°C to 40°C allow for reliable performance in standard industrial environments.

This meter is manufactured in China and is supplied new, ready for deployment in a wide range of process control and measurement applications. Features a 7-inch TFT capacitive touchscreen with 16.7M colors for clear visualization.

Measures current and voltage with four 16-bit bipolar analogue inputs up to ±40V d.c. Supplied with 5 to 30V d.c. requiring typically 1A at 5V d.c. Supports PID control, Ethernet FTP, serial RS232/RS485, and CANBus add-on modules.

Includes advanced multi-channel data logging and trend graphing capabilities. Compatible with free PanelPilotACE Design Studio software for custom interface creation. Works in operating temperature range of 0°C to 40°C suitable for industrial environments.

Compact cutout dimensions of 117 mm height and 180 mm width with 18.1 mm depth. Explore an extensive range of industrial digital panel meters at EnvMart to find optimal solutions matching your control and measurement needs.

Explore more products in our Multi-Function Panel Meter category.
