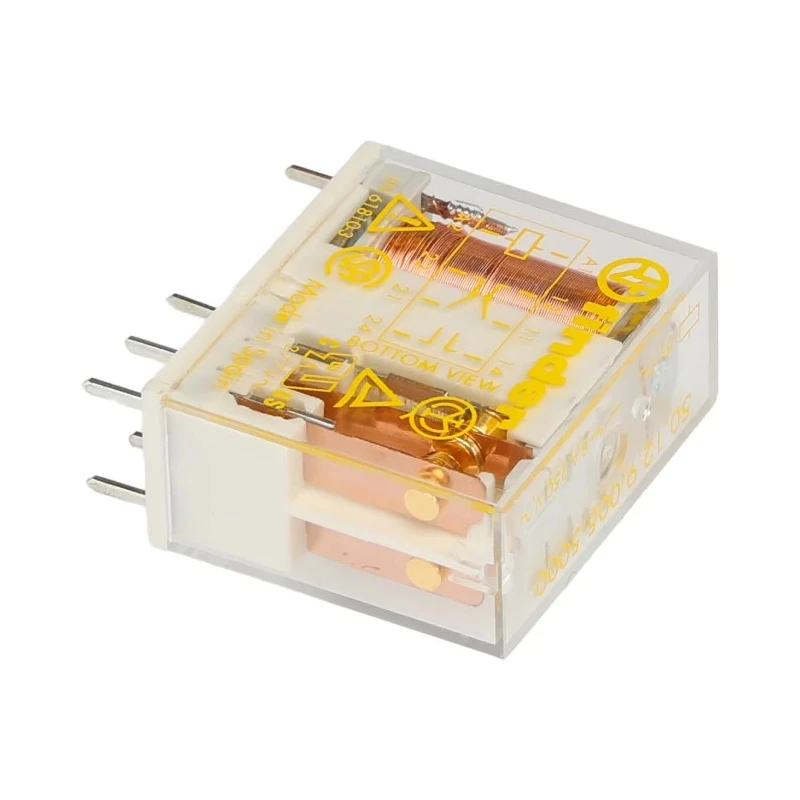

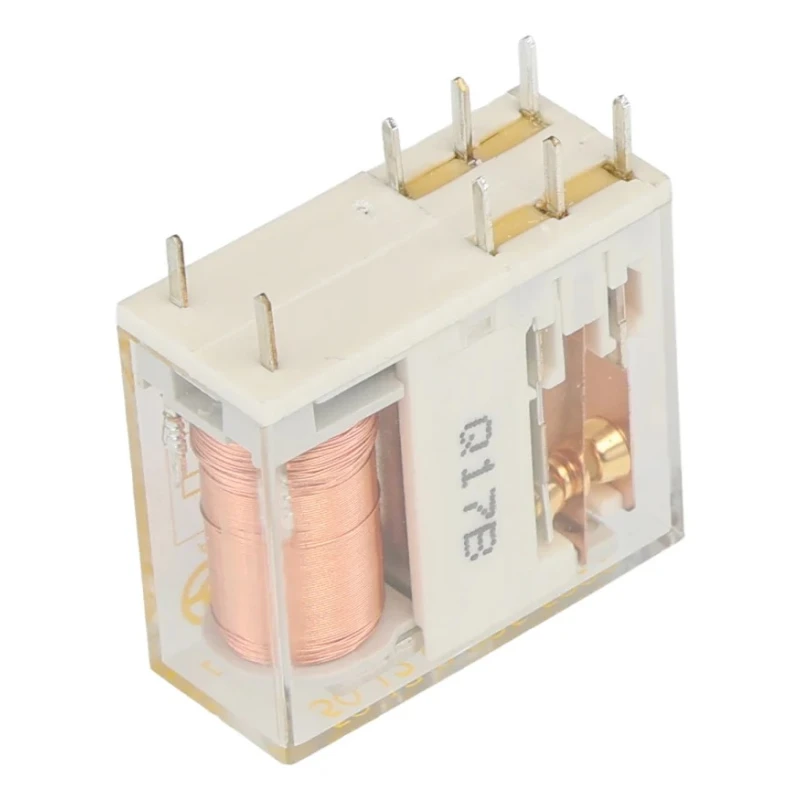

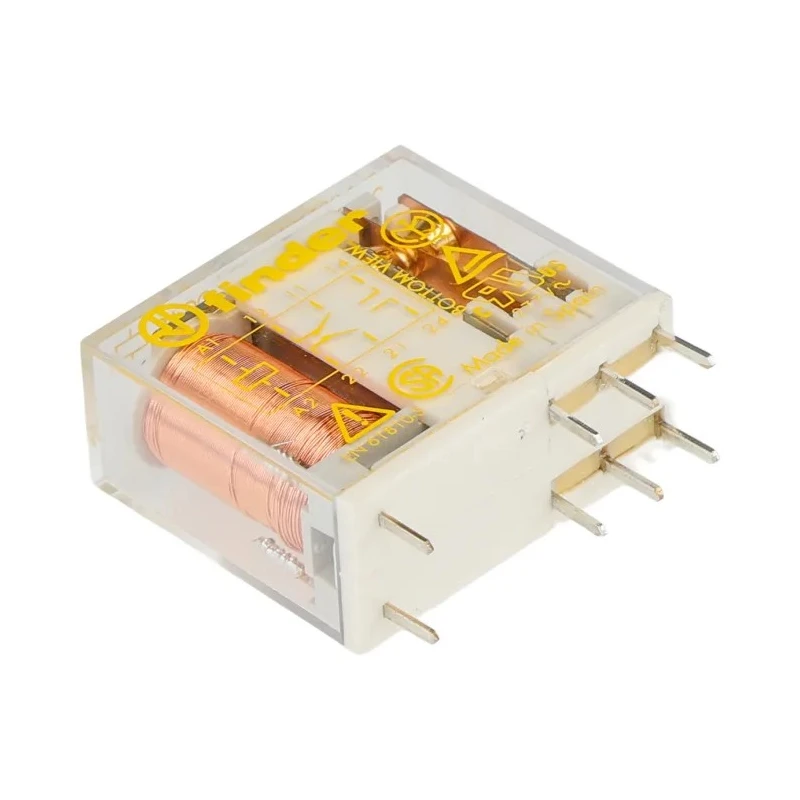

Finder PCB Force Guided Relay 5V DC Coil Voltage 2-Pole DPDT 50.12.9.005.5000

Finder 50.12.9.005.5000 PCB Force Guided Relay is a high-quality industrial component designed for automation and control systems. This relay features a coil voltage of 5V DC and a robust 2-pole double-pole double-throw (DPDT) contact configuration, making it ideal for versatile electrical switching tasks.

The relay dimensions are compact at 29mm in length, 12.4mm in depth, and 25mm in height, allowing convenient PCB mounting integration. It supports a maximum switching current of 15A, suitable for demanding electrical loads, with maximum switching voltages rated at 400V AC and 125V DC.

Its coil resistance is 35Ω and coil power consumption is 700mW, optimized for energy efficiency. The relay ensures electrical isolation with a 6kV rating between coil and contacts, enhancing operational safety in high voltage scenarios.

The contacts utilize a gold and silver alloy that increases reliability and longevity, backed by a design rated for 100,000 operating cycles. Cadmium-free material composition underscores environmental considerations. Operating temperature range from -40°C to 70°C enables applications in harsh and fluctuating industrial environments.

This Force Guided Relay is commonly used in escalators, lifts, medical and dental equipment safety systems, carousel warehouses for load management, wood-processing machinery, hoists, and cranes for reliable operation and control.

Operates at 5V DC coil voltage with 35Ω coil resistance. Compact PCB mount design with 29mm length, 12.4mm depth, and 25mm height. Supports 15A switching current at up to 400V AC and 125V DC switching voltages. 6kV isolation between coil and contacts ensures electrical safety.

Durable gold and silver alloy contacts for reliable switching. Designed for 100,000 operational cycles in industrial use. Cadmium-free materials comply with environmental safety. Wide operating temperature range from -40°C to 70°C.

Ideal for automation control in escalators, lifts, medical equipment, warehouses, and lifting machinery. Explore other high-reliability industrial relays and control equipment within the Electronics & Electricals category on EnvMart.
