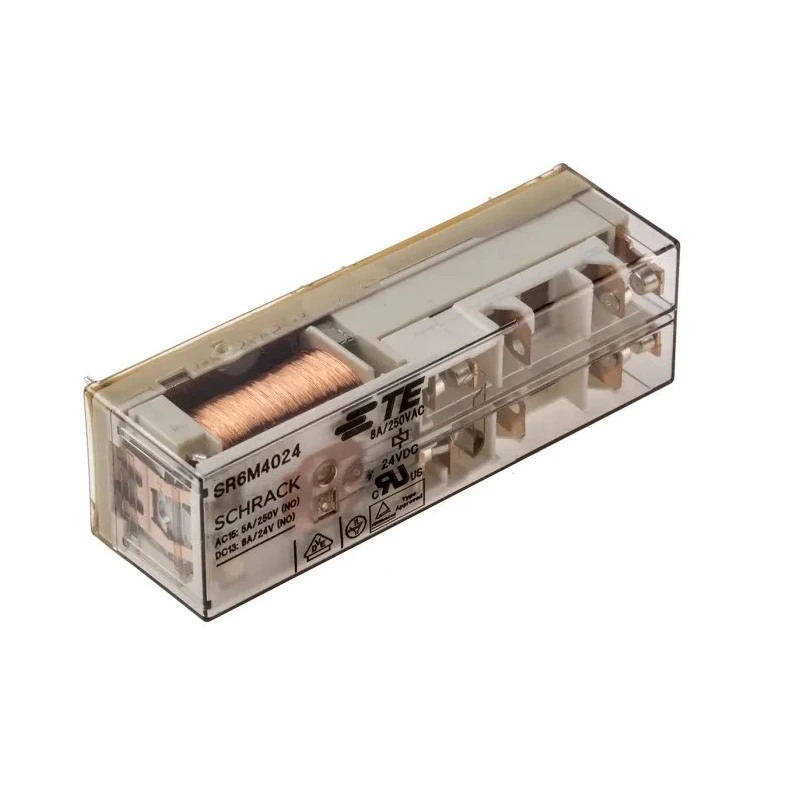

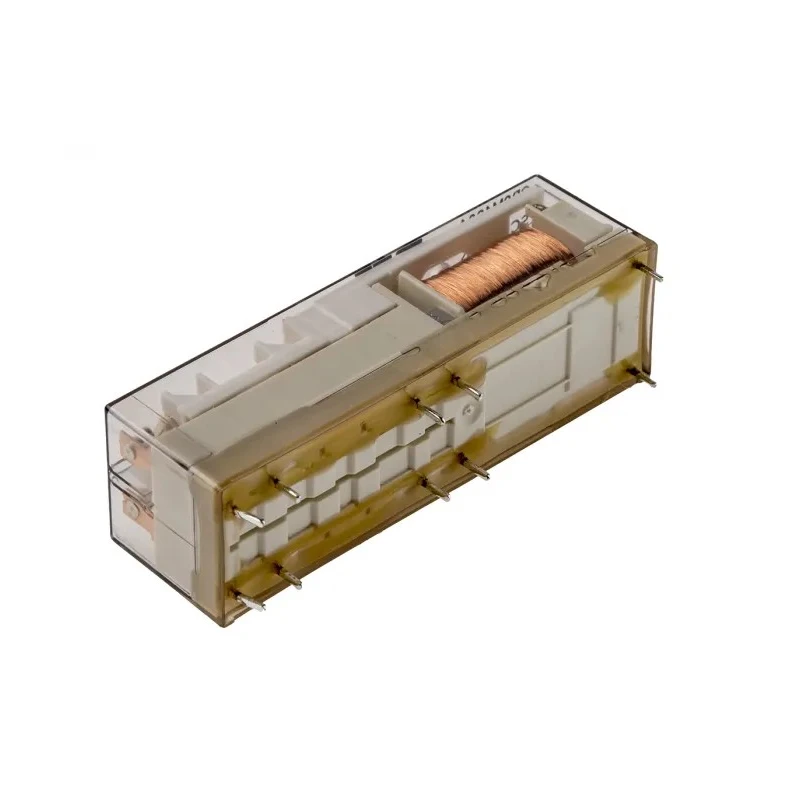

TE Connectivity PCB Force Guided Relay 24V DC Coil Voltage 4-Pole SR6M4024
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 16.5mm |
| Length | 55mm |
| Model | SR6M4024 |
| Depth | 16.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SR6 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Number of Poles | 4 |
| Coil Resistance | 480Ω |
| Coil Power | 1200mW |
| Isolation Coil To Contact | 4kVrms |
Key Features
- The mount type is PCB, supporting direct printed circuit board installation.
- Equipped with 4 poles for versatile circuit control.
- Coil resistance of 480 ohms ensures precise operation.
- Low coil power consumption of 1200mW enhances energy efficiency.
- Operates reliably within temperatures from -25°C to 70°C.
- Solder terminal type facilitates secure electrical connections.
- Compact dimensions of 55mm length, 16.5mm height, and 16.5mm depth.
- Isolation voltage of 4kVrms between coil and contacts enhances safety.
Product Description
TE Connectivity SR6M4024 PCB Force Guided Relay, 24V DC Coil Voltage, 4-Pole, is a high-quality safety relay from the SR6 series designed for safe and reliable automation and industrial control applications. This relay is engineered for mounting on printed circuit boards (PCB) and features force guided contacts for enhanced safety according to EN50205 standards.
The relay supports 4 poles with configurations such as 2PNO+2NC or 3PNO+1NC, providing flexible circuit control. It operates efficiently on a 24V DC coil voltage with a coil resistance of 480Ω and a coil power rating of 1200mW. Its solder terminal type enables secure electrical connections on the PCB.
The physical dimensions of the relay are 55mm in length, 16.5mm in height, and 16.5mm in depth, allowing for compact integration into control panels and machinery. The relay's isolation voltage between coil and contacts is rated at 4kVrms, ensuring excellent electrical isolation for safety and longevity.
This relay is suitable for industrial, automation, manufacturing, and control system applications where precise and safe switching is required. The contact parts are made from silver alloy, enhancing electrical conductivity and durability under demanding operating conditions.
PCB mount type for easy assembly. 4-pole configuration for diverse switching needs. Coil resistance of 480Ω ensuring stable activation. Low coil power consumption of 1200mW for efficiency. Wide operating temperature range from -25°C to 70°C.
Solder terminal type facilitates secure connections. Compact dimensions support integration in restricted spaces. 4kVrms coil-to-contact isolation voltage for electrical safety. Silver alloy contact material offers enhanced durability.
Manufactured in Czech Republic as part of the trusted SR6 series.
This product is ideal for use in industrial automation, safety systems, electrical control panels, and manufacturing equipment. It meets the strict quality and safety standards required for Force Guided Relays, ensuring dependable operation under various environmental and electrical conditions.
Browse the wide range of industrial relays and contactors at EnvMart for more TE Connectivity products and compatible solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
The maximum operating temperature for the SR6M4024 is 70°C.
This model features 4 poles, allowing for versatile circuit control.
The coil resistance is 480 ohms, which ensures stable activation.
The dimensions of this relay are 55mm in length, 16.5mm in height, and 16.5mm in depth.
It uses a solder terminal type for secure electrical connections.
The isolation voltage is rated at 4kVrms, ensuring excellent electrical isolation.
This relay is manufactured in the Czech Republic.
The coil power consumption is 1200mW, enhancing energy efficiency.
The contact parts are made from silver alloy, which enhances electrical conductivity.
This relay is suitable for industrial automation, safety systems, and electrical control panels.
The relay supports configurations such as 2PNO+2NC or 3PNO+1NC for flexible circuit control.
