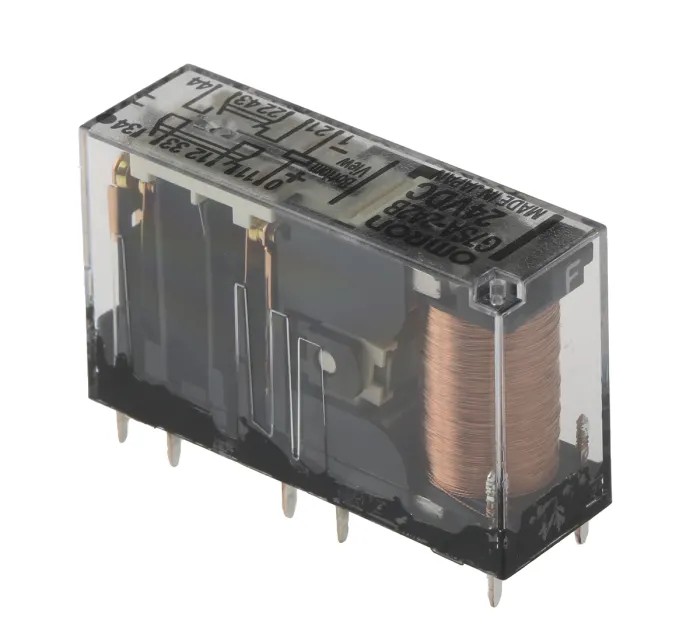

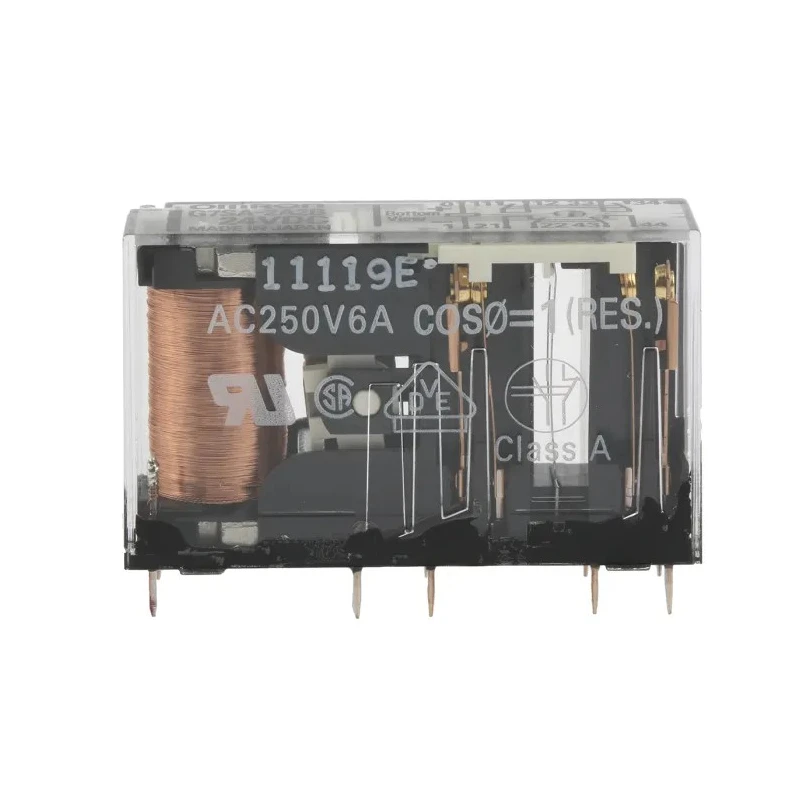

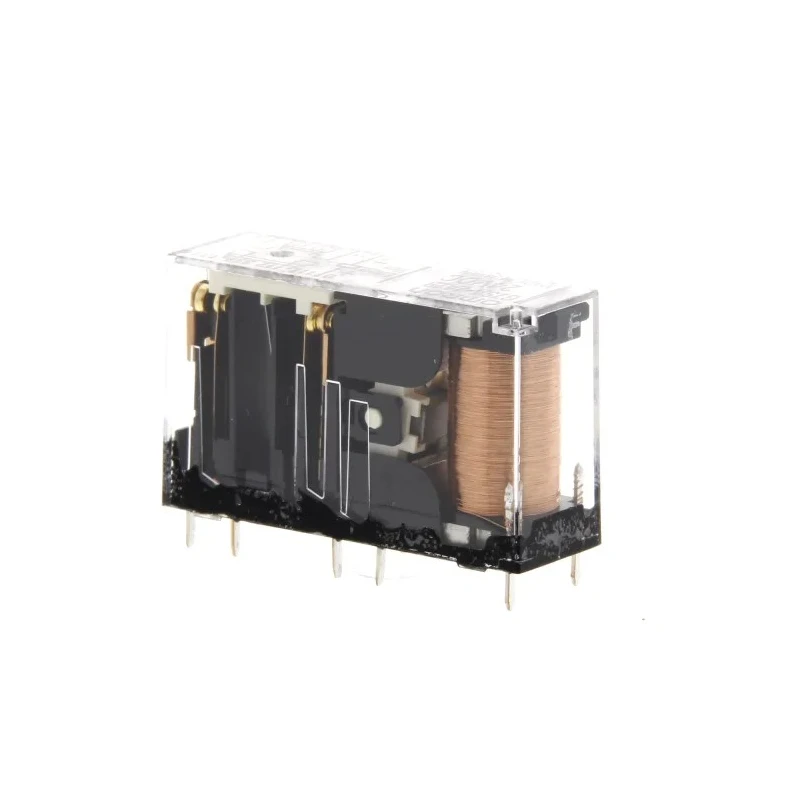

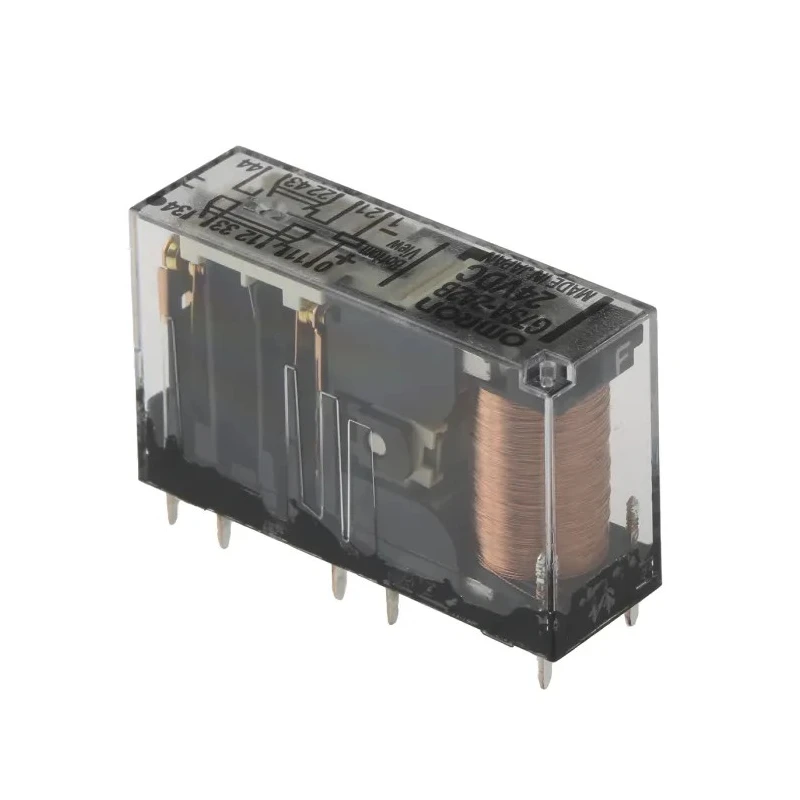

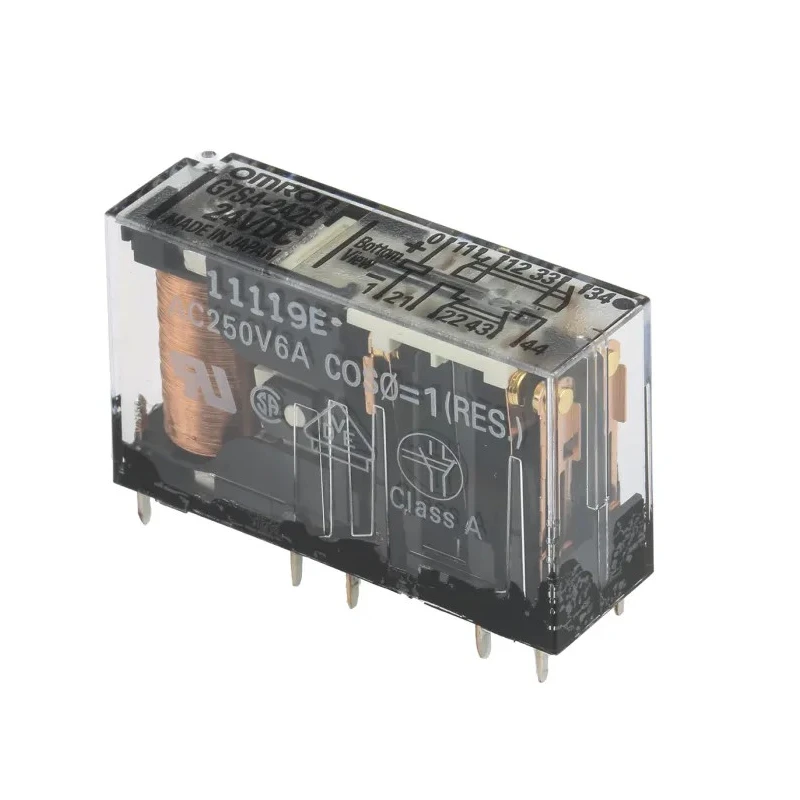

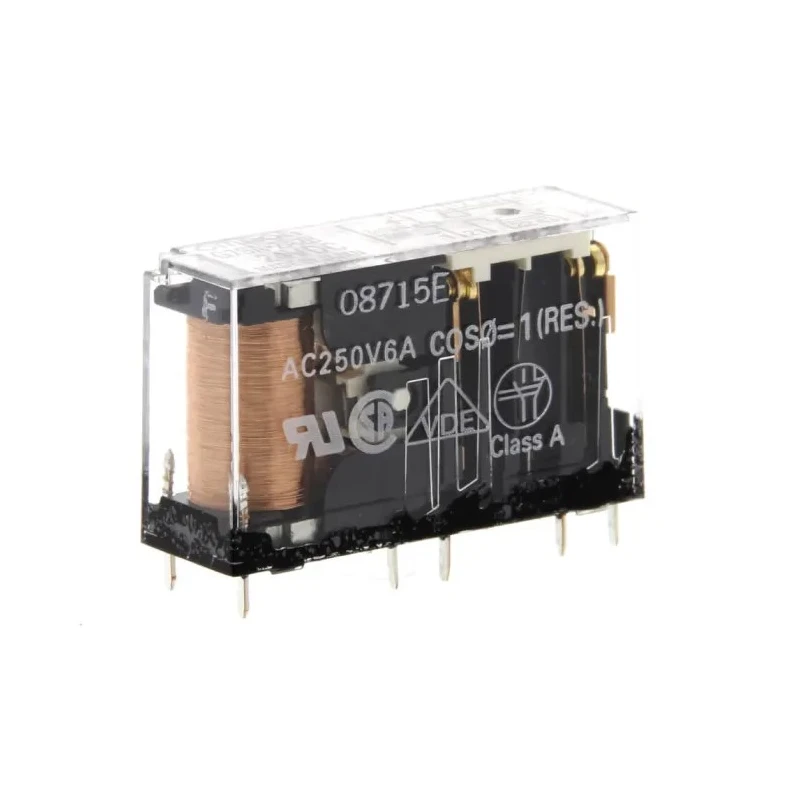

Omron PCB Force Guided Relay, 24V DC Coil Voltage, 4-Pole DPDT, Silver Alloy Contacts G7SA-2A2B 24VDC

Omron G7SA-2A2B 24VDC PCB Force Guided Relay is a high-quality electrical component engineered for industrial and automation systems requiring safe and reliable switching. This relay features a 24V DC coil voltage and a 4-pole Double Pole Double Throw (DPDT) contact configuration, allowing it to control multiple circuits simultaneously while reducing component footprint.

Its design includes silver alloy contacts that provide excellent electrical conductivity and resist corrosion for prolonged operational life. The relay is suitable for PCB mounting with solder-type terminals that ensure a vibration-proof electrical connection on the circuit board.

Engineered to operate in challenging environments, the relay withstands temperatures ranging from -40°C to +85°C. Its flux-tight sealing protects the internal mechanisms from external contaminants, safeguarding performance in demanding industrial conditions such as automotive assembly lines, food processing equipment, marine industry, telecommunications networks, and power plants.

The reinforced insulation between inputs, outputs, and poles provides enhanced safety by preventing accidental contact with live parts. The device also benefits from a mechanical lifespan rated at 10 million operations, ensuring a long service life.

PCB mount with solder terminals for secure installation. Silver alloy contacts offer superior conductivity and corrosion resistance. Wide operating temperature range from -40°C to +85°C. Compact size with length 40mm, height 24mm, and depth 13mm.

Low coil power consumption of 800mW with coil resistance of 1.6kΩ. Flux-tight sealing for protection against contaminants. Reinforced insulation enhances operator safety. Mechanical lifespan of 10 million operations for durability.

Compliant with EN 50205 and approved by UL and CSA.

This Force Guided Relay is ideal for safety-critical applications, including safety relay modules and safety controllers, expanding output capabilities while maintaining system integrity. It can be soldered directly to a PCB or used with compatible P7SA socket series for panel installations.
