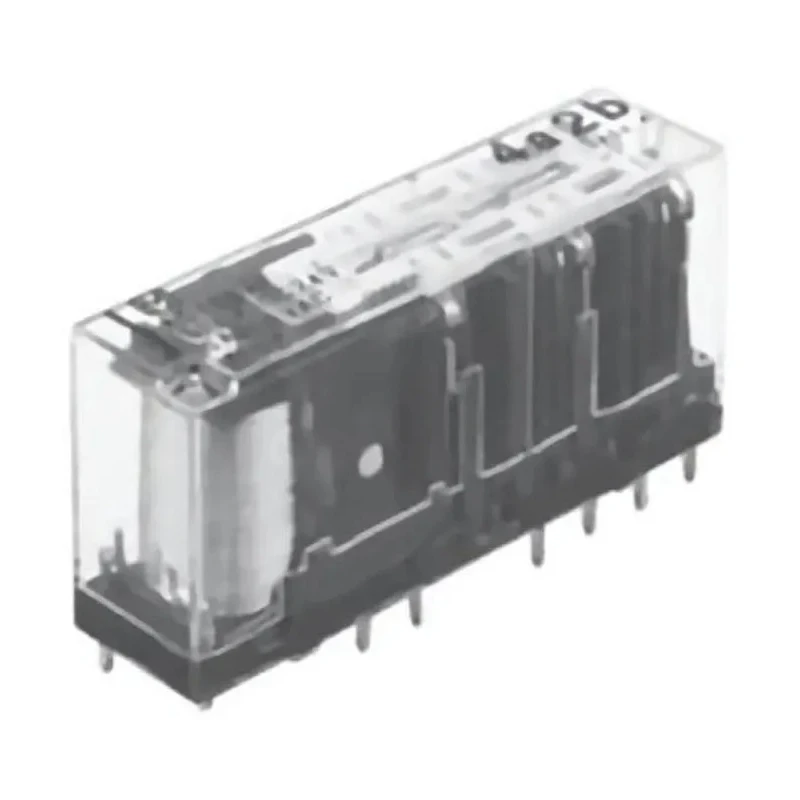

Panasonic PCB Force Guided Relay 24V dc Coil Voltage 6-Pole 3PDT SFS6-L-DC24V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 24mm |
| Length | 50mm |
| Model | SFS6-L-DC24V |
| Depth | 13mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | SF |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Number of Poles | 6 |
| Coil Resistance | 1.152kΩ |
| Coil Power | 500mW |
| Isolation Coil To Contact | 4kVrms |
| High shock resistance, functional | Min 200m/s2 |
Key Features
- Designed for PCB mounting with a slim and compact profile.
- Gold plated contact material ensures reliable conductivity.
- Coil resistance of 1.152kΩ and coil power of 500mW support efficient operation.
- Operates within temperature range from -40°C to 85°C.
- Has high shock resistance with a minimum 200m/s2 functional rating.
- Isolation between coil and contact rated at 4kVrms for safety.
- Fast response time of 8 ms or less for precise control.
- Suitable for stringent safety standard applications and machine tools.
Product Description
Panasonic SFS6-L-DC24V PCB Force Guided Relay is a high-performance relay designed for PCB mounting applications requiring strict safety standards. Operating with a 24V dc coil voltage and featuring a 6-pole, 3PDT contact configuration, this compact relay offers reliable switching performance.
Constructed with gold plated contacts, it ensures excellent electrical conductivity and durability. The coil resistance of 1.152kΩ and coil power rating of 500mW provide energy-efficient operation. It operates effectively within an environmental temperature range of -40°C to 85°C, making it suitable for diverse industrial environments including automation, machine tools, and safety PLCs.
This relay features a functional high shock resistance rating of at least 200m/s², ensuring reliable performance under mechanical stress. The isolation between the coil and contact is rated at 4kVrms, providing enhanced electrical safety. Its slim profile and dimensions of 50mm length, 24mm height, and 13mm depth allow for space-saving PCB designs. The through hole terminal type simplifies secure installation on circuit boards.
The relay's fast response time of 8 milliseconds or less delivers precise switching critical for industrial control and safety systems. It belongs to the SF series known for forcibly guided contacts and integrated LED or diode options in some models, suitable for applications such as robot controls and motor vehicle production equipment.
PCB mounting with a compact, slim design. Gold plated contact material for long-lasting reliability. Coil resistance: 1.152kΩ and coil power: 500mW. Wide temperature operational range from -40°C to 85°C. High shock resistance with minimum 200m/s² functional rating.
Coil to contact isolation voltage of 4kVrms. Fast response time of 8 ms or less. Through hole terminal type ensures secure mounting. Dimensions: 50mm length, 24mm height, 13mm depth. Suitable for industrial automation, safety PLCs, and machine tool applications.
Country of Origin: Japan. Explore more in our Electronics & Electricals category for reliable relays and Force Guided Relay solutions suitable for industrial automation and control systems on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
It features a 6-pole, 3PDT contact configuration.
The operating temperature range is from -40°C to 85°C.
The coil resistance is 1.152kΩ and the coil power rating is 500mW.
It has an isolation rating of 4kVrms between the coil and contact to enhance electrical safety.
It has a minimum functional shock resistance rating of 200m/s².
The dimensions are 50mm in length, 24mm in height, and 13mm in depth.
It is designed for PCB mounting with a through hole terminal type.
The response time is 8 milliseconds or less, allowing for precise control.
It is suitable for industrial automation, safety PLCs, and machine tool applications.
The contacts are made of gold plated material to ensure reliable conductivity.
The country of origin for this relay is Japan.
