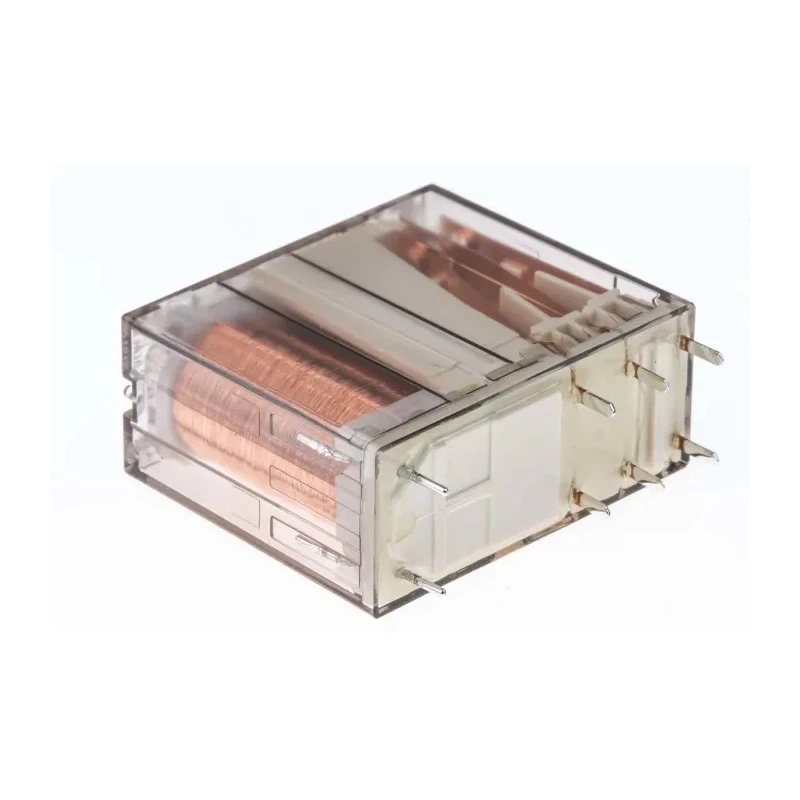

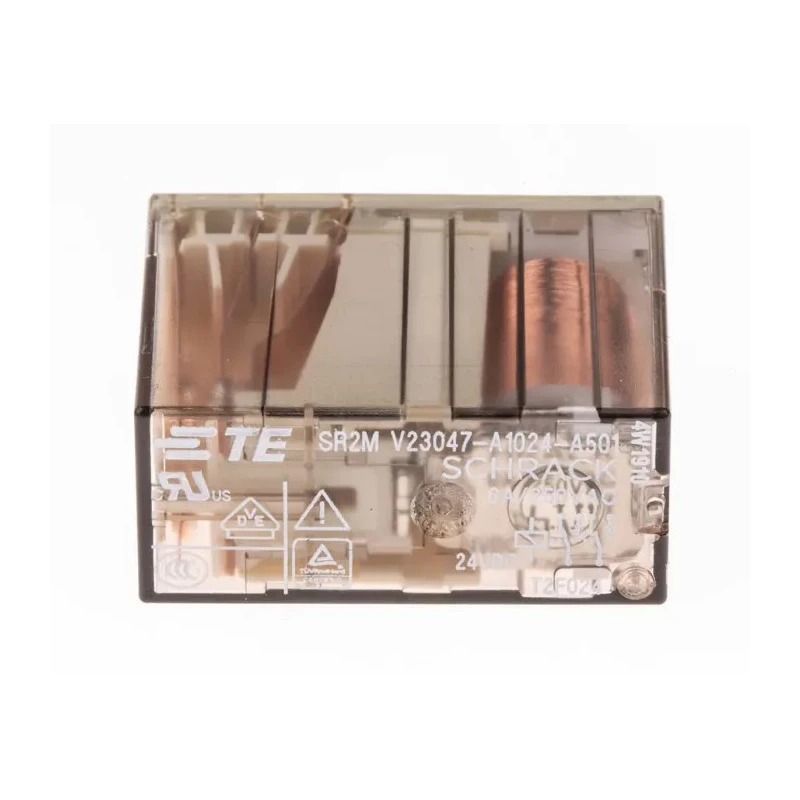

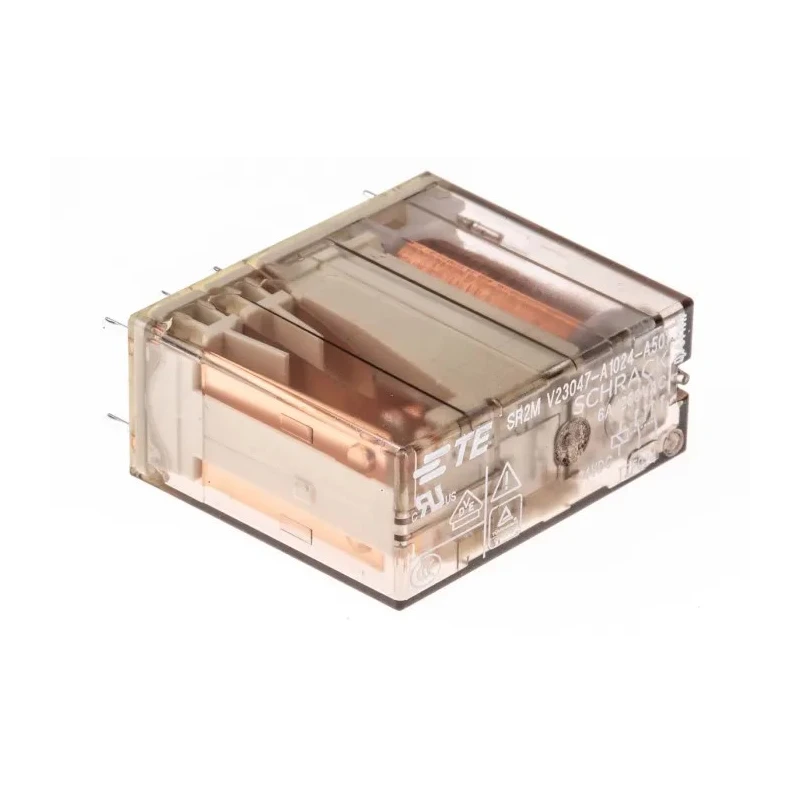

TE Connectivity Force Guided Relay, 24V DC Coil Voltage, 2-Pole Double-Pole Double-Throw V23047-A1024-A501 1-1393258-5
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 25.5mm |
| Operating Temperature Range | -25 to +70°C |
| Length | 29mm |
| Model | V23047-A1024-A501 1-1393258-5 |
| Depth | 12.6mm |
| Contact Material | Silver Alloy |
| Series | SR2M |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Number of Poles | 2 |
| Pay online using | Or choose to pay later via bank transfer |
| Coil Resistance | 823Ω |
| Coil Power | 700mW |
| Isolation Coil To Contact | 4kVrms |
Key Features
- Offers a 24V DC coil voltage with a coil resistance of 823 ohms.
- DPDT (Double-Pole Double-Throw) contact configuration with silver alloy contacts ensures reliable switching.
- Operating temperature range from minus 25°C to plus 70°C.
- Coil power consumption rated at 700mW with 4kVrms coil to contact isolation.
- Designed with forced guided contacts for enhanced safety.
- Fully sealed design suitable for harsh environments.
- Switching voltage up to 440VAC and current rating of 6A.
- UL recognized component for Canada and US and TUV approved.
Product Description
TE Connectivity V23047-A1024-A501 1-1393258-5 is a high-quality Force Guided Relay designed for industrial control, automation, and safety signaling applications. This relay features a 24V DC coil voltage and operates as a 2-pole double-pole double-throw (DPDT) device. Its silver alloy contacts provide reliable switching performance suitable for a wide range of electrical loads.
The relay belongs to the SR2M series known for low cost, safety-oriented relays with fully sealed construction and forced guided contacts ensuring safe operation in coordinated systems.

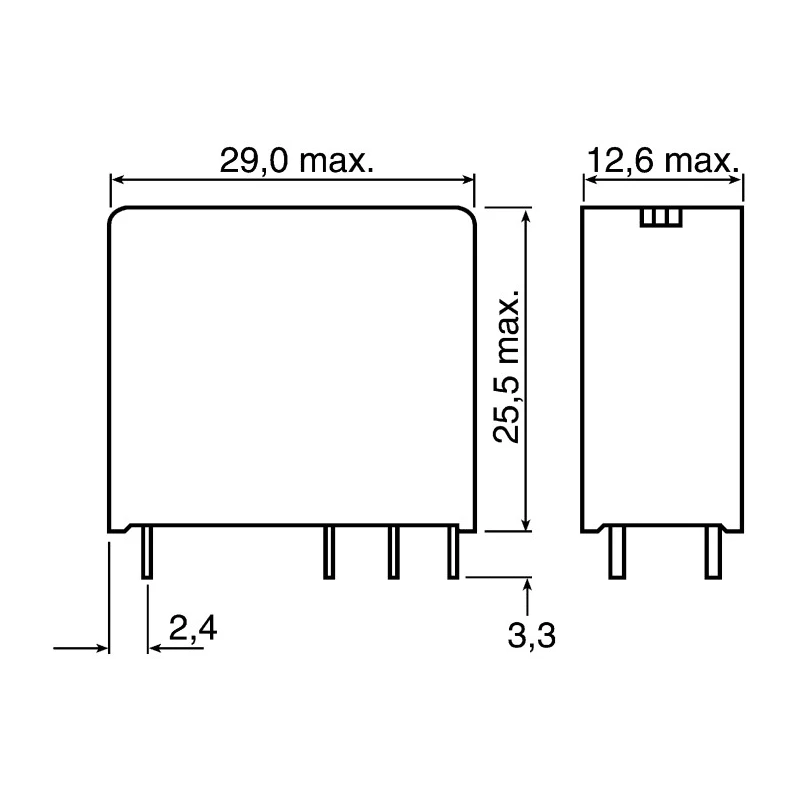

Key physical dimensions include a length of 29mm, height of 25.5mm, and depth of 12.6mm, making it compact for integration in control panels and automation racks. The coil resistance is specified at 823 ohms, consuming 700 milliwatts of power during operation. Electrical isolation from coil to contact is rated at 4kVrms, ensuring robust performance in demanding environments.
The operating temperature range extends from -25°C to +70°C, allowing use in diverse climatic conditions. The relay provides switching voltages of up to 440VAC and maximum switching currents up to 6A, suitable for various industrial loads.
This relay is UL recognized for use in Canada and the US and has TUV approvals, indicating compliance with relevant safety standards. The compact and rugged design with solder terminals facilitates secure mounting and reliable connections.
24V DC coil voltage with 823Ω coil resistance. DPDT contact configuration with silver alloy contact material. Operating temperature range from -25°C to +70°C. Coil power consumption of 700mW and isolation voltage of 4kVrms.
SR2M series, featuring forced guided contacts and sealed design. Switching voltage up to 440VAC and switching current rating of 6A. Compact dimensions: 29mm × 25.5mm × 12.6mm (L×H×D). UL recognized and TUV approved for safety applications.
This TE Connectivity Force Guided Relay is ideally suited for use in industrial automation, manufacturing equipment, control systems, electrical safety circuits, and other applications requiring reliable, safety-oriented relay performance. Browse other relays and contactors from top brands at EnvMart’s extensive catalogue for industrial electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay operates with a coil voltage of 24V DC.
It features a Double-Pole Double-Throw (DPDT) contact configuration.
The relay can handle switching voltages up to 440VAC and a maximum switching current of 6A.
The coil resistance is specified at 823 ohms.
The coil power consumption is rated at 700mW.
The operating temperature range extends from -25°C to +70°C.
It uses silver alloy contacts for reliable switching performance.
The relay has dimensions of 29mm in length, 25.5mm in height, and 12.6mm in depth.
Yes, it is designed with a fully sealed construction, making it suitable for harsh environments.
This model features solder terminals for secure mounting and connections.
It is UL recognized for use in Canada and the US and has TUV approvals, indicating compliance with safety standards.
The relay is manufactured in the Czech Republic.
