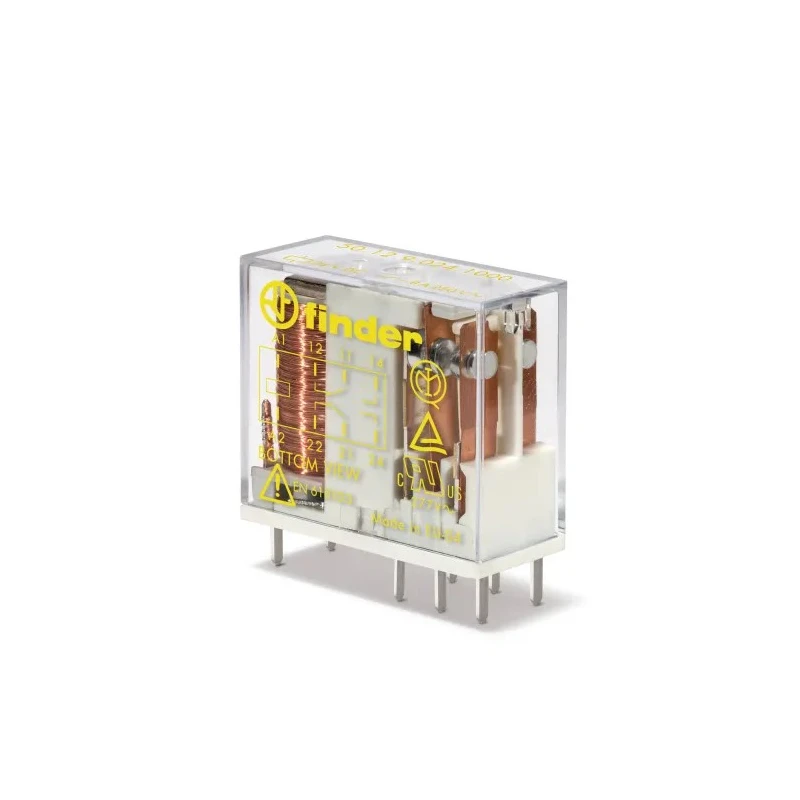

Finder PCB Force Guided Relay 110V DC Coil Voltage 2-Pole DPDT, Gold Silver Alloy Contacts 50.12.9.110.5000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Finder |
| Height | 25mm |
| Length | 29mm |
| Depth | 12.4mm |
| Mount Type | PCB |
| Contact Material | Gold Silver Alloy |
| Series | 50 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Number of Poles | 2 |
| Coil Resistance | 17.25Ω |
| Coil Power | 700mW |
| Isolation Coil To Contact | 6kV |
Key Features
- Force guided contacts ensure safety and reliable operation.
- PCB mount compatible for simplified installation.
- 110V DC coil voltage with 17.25 Ω coil resistance for efficient power usage.
- Rated switching current of 15A supports significant load handling.
- Gold silver alloy contacts enable low-level switching capability.
- Compact dimensions of 29mm length, 25mm height, and 12.4mm depth suit dense PCB layouts.
- Isolation between coil and contacts up to 6kV for electrical surge protection.
- Operates in temperature range from -40°C to +70°C for versatile industrial use.
Product Description
Finder 50.12.9.110.5000 PCB Force Guided Relay features a 110V DC coil voltage and a dual pole, double throw (DPDT) contact configuration designed to deliver high safety and operational reliability in industrial, medical, and automation applications.
This relay utilizes forcibly guided contacts to prevent simultaneous contact closure, enhancing electrical performance and safety. It supports a switching current of up to 15A with durable gold silver alloy contacts that maintain excellent conductivity and reduce contact wear, ideal for both low and high-level switching scenarios.
With compact dimensions (29mm length x 25mm height x 12.4mm depth) and a PCB mount form factor, this relay integrates seamlessly into electrical panels and automated control systems. The coil resistance of 17.25 ohms at 110V DC ensures efficient energy consumption, while the high isolation rating of 6kV between coil and contacts protects against electrical surges and transients.
Reliability across extreme industrial environments is guaranteed, thanks to its operating temperature range of -40°C to +70°C, suitable for harsh indoor and outdoor conditions. The solder terminal design provides secure, long-lasting connections for sustained performance.
Applications include medical and dental equipment requiring precise control, escalators and lifts for user safety, carousel warehouse automation, hoists and cranes for dependable load control, and wood-processing machines where safety standards are critical.
Force guided contacts ensure safety and reliable operation. PCB mount compatible for simplified installation. 110V DC coil voltage with 17.25 Ω coil resistance for efficient power usage. Rated switching current of 15A supports significant load handling.
Gold silver alloy contacts enable low-level switching capability. Compact dimensions of 29mm length, 25mm height, and 12.4mm depth suit dense PCB layouts. Isolation between coil and contacts up to 6kV for electrical surge protection.
Operates in temperature range from -40°C to +70°C for versatile industrial use. Solder terminal type assures robust electrical connections. Explore our Electronics & Electricals catalog for a full range of reliable Force Guided Relays ideal for industrial automation and safety critical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 110V DC.
It supports a rated switching current of up to 15A.
The dimensions are 29mm in length, 25mm in height, and 12.4mm in depth.
It features gold silver alloy contacts, which enable low-level switching capability.
The isolation between the coil and contacts is rated at 6kV, providing protection against electrical surges.
It operates effectively within a temperature range of -40°C to +70°C.
This model is designed for PCB mounting, simplifying installation in electrical panels.
The coil resistance is 17.25 ohms at 110V DC.
It features a solder terminal type, ensuring secure and long-lasting connections.
It is suitable for applications in medical equipment, escalators, lifts, and industrial automation.
This relay has a 2-pole configuration with a dual pole, double throw (DPDT) contact arrangement.
The coil power consumption is 700mW.
